Charging System: System Diagram
Charging System: System Diagram
Charging System
: System Diagram

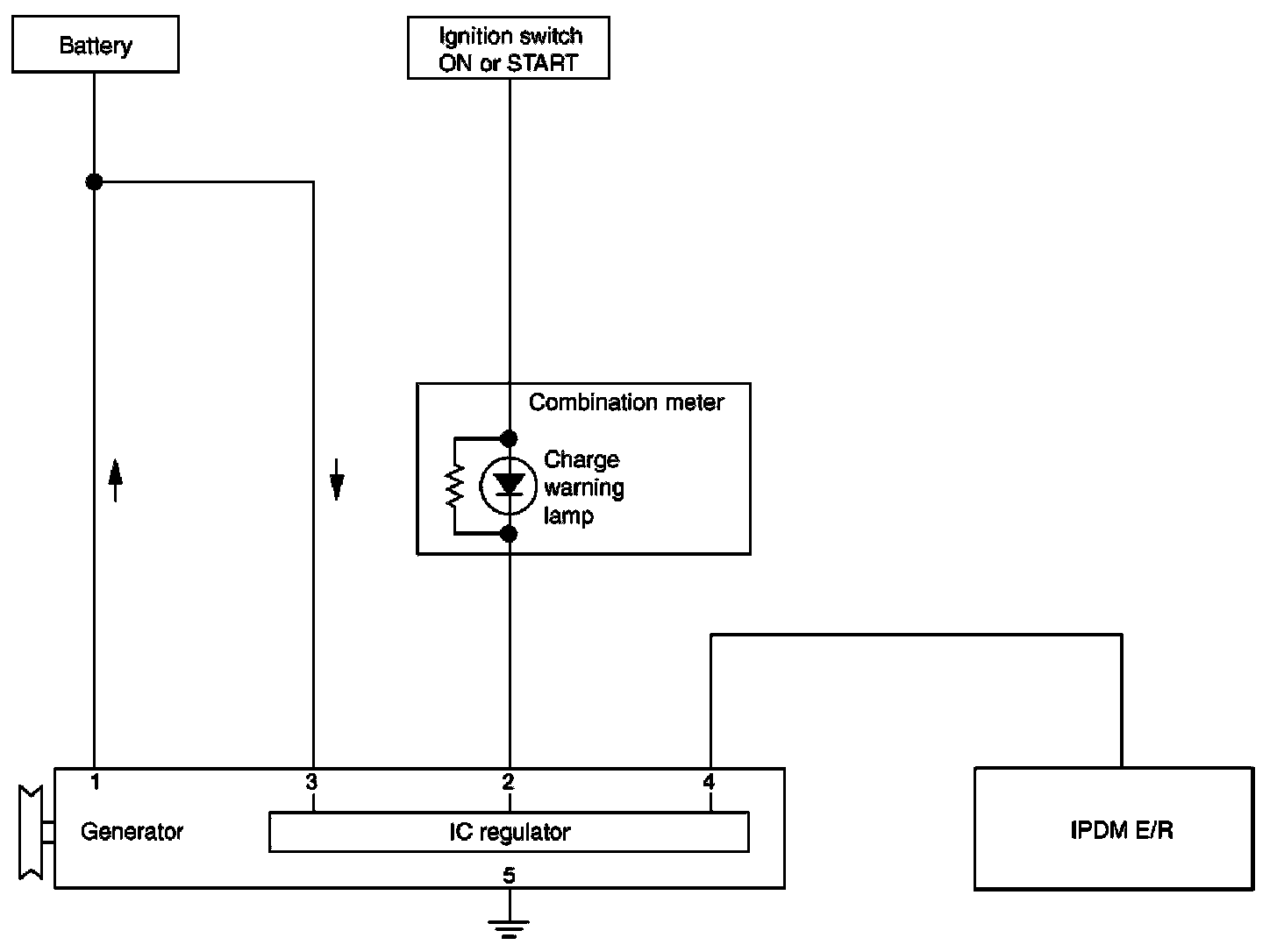

Charging System: System Diagram:
