Suzuki Truck
>>
2010
>>
Equator 2WD L4-2.5L
>>
Repair and Diagnosis
>>
Engine, Cooling and Exhaust
>>
Exhaust System
>>
Service and Repair
>>
Removal and Replacement
>>

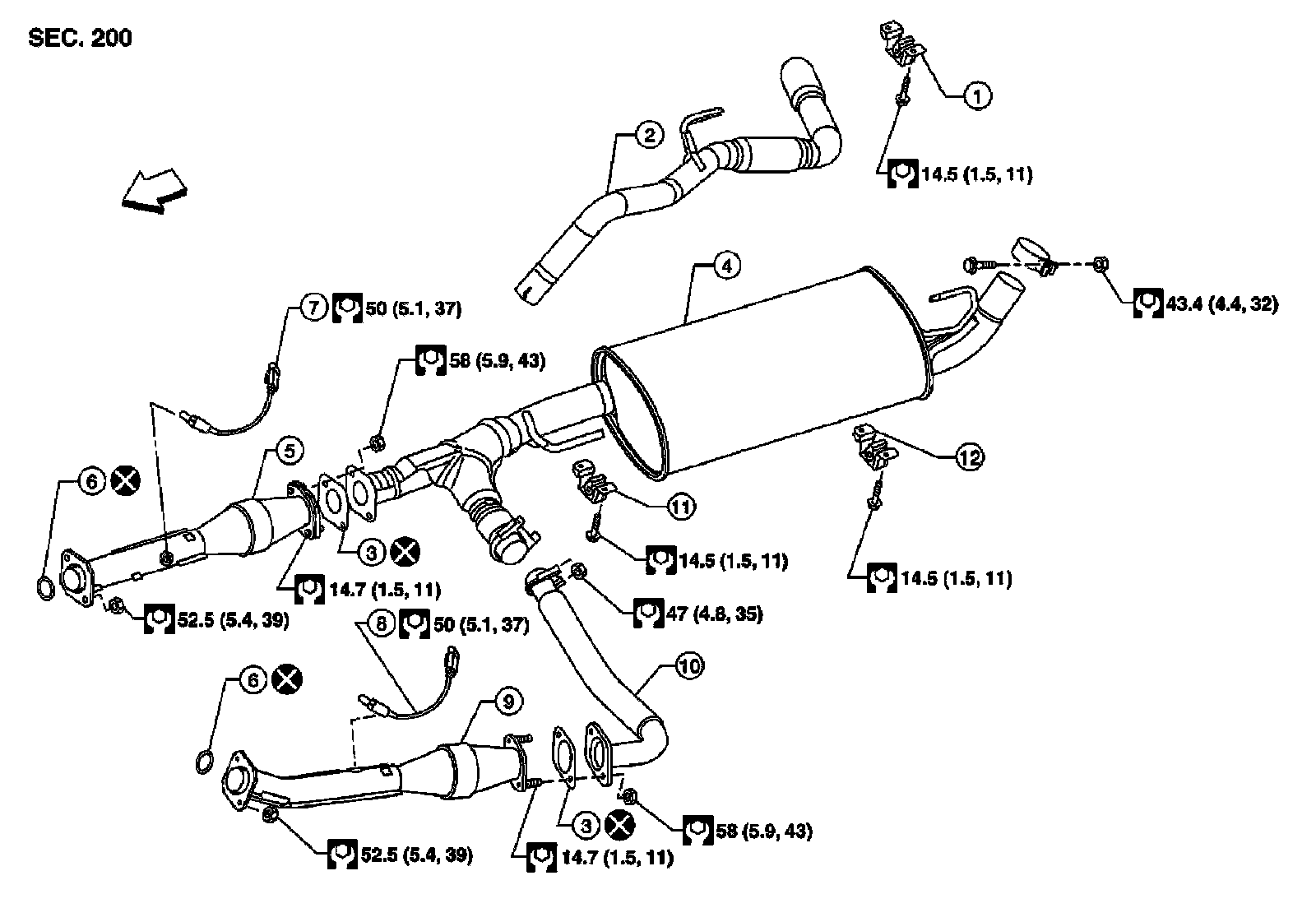

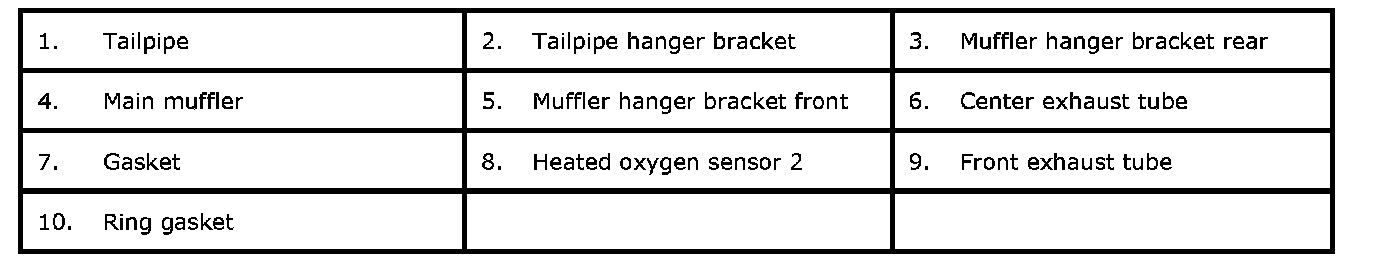

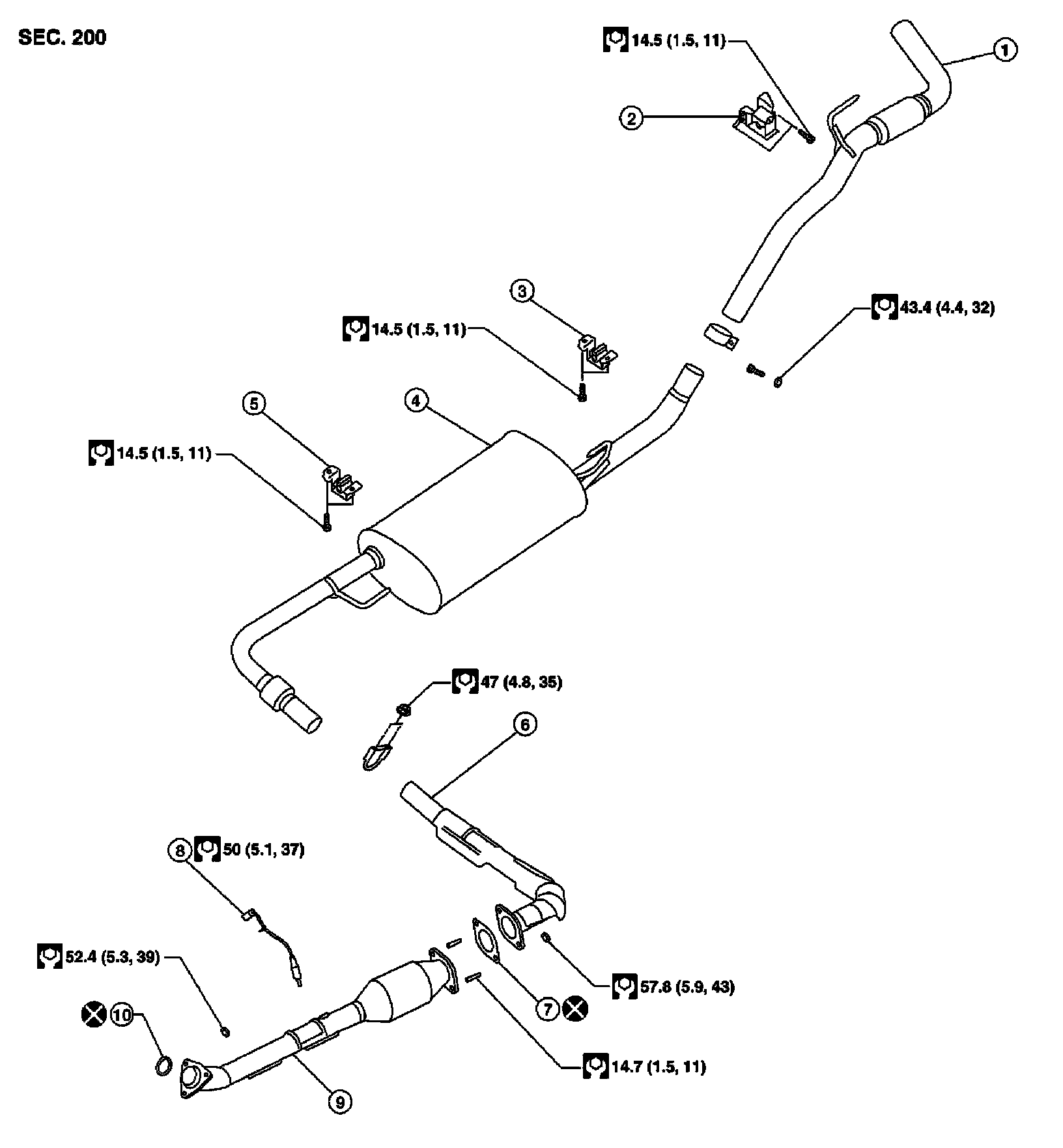

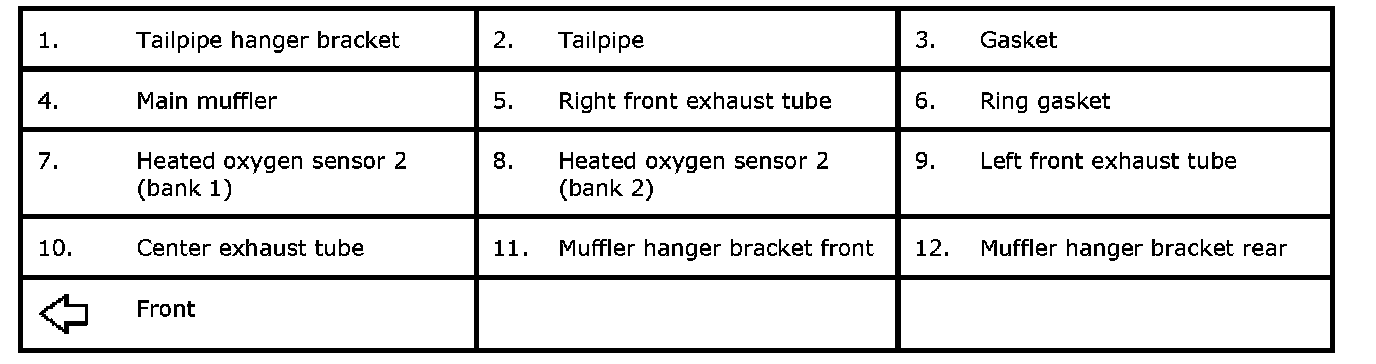

Exhaust System: Exploded View
Exhaust System: Exploded View
Exhaust System
: Exploded View
Exhaust System
QR25DE
Exhaust System
VQ40DE
