Heater Control

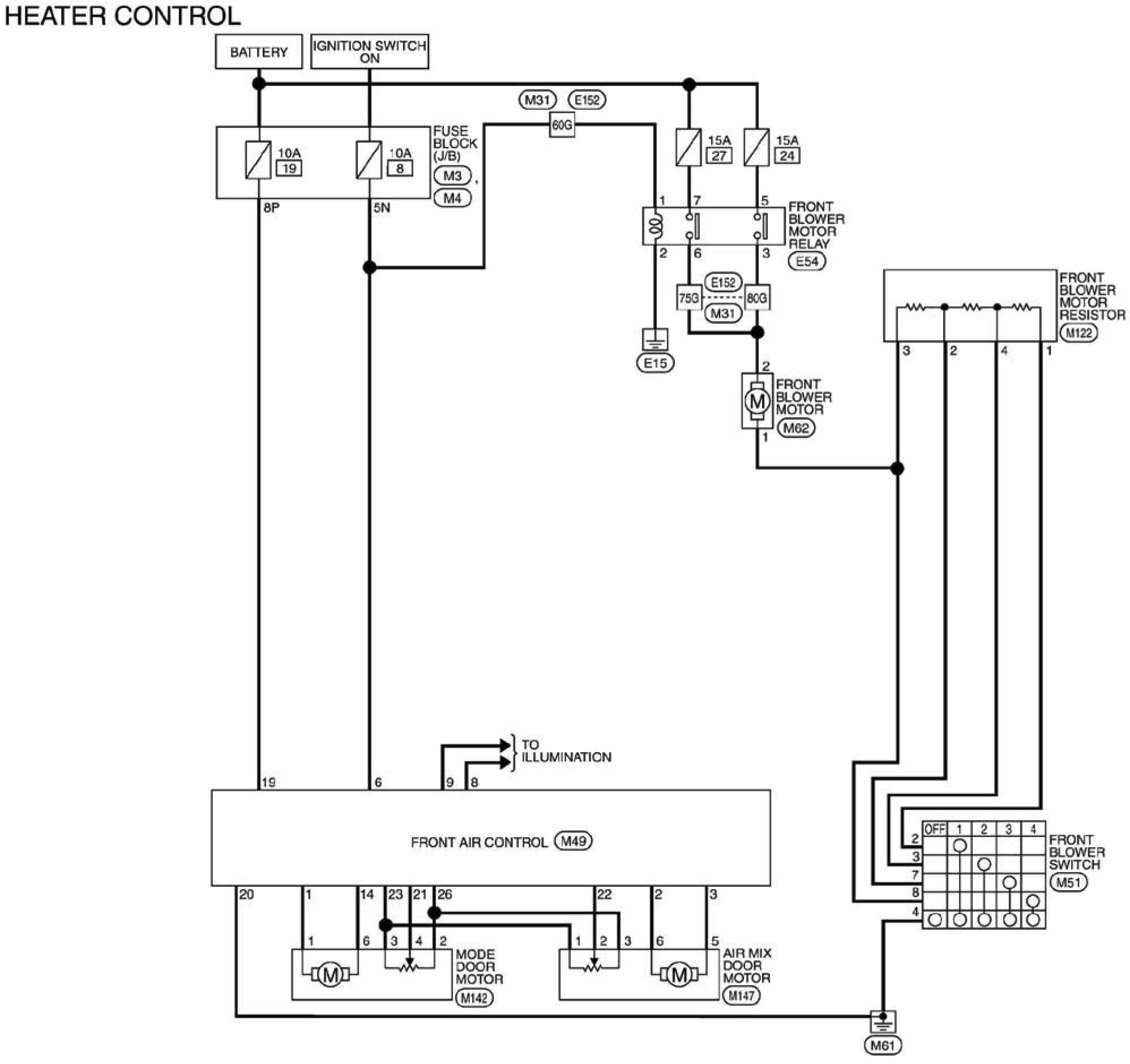

Heater Control: Wiring Diagram

Heater Control:






Heater Control Connectors

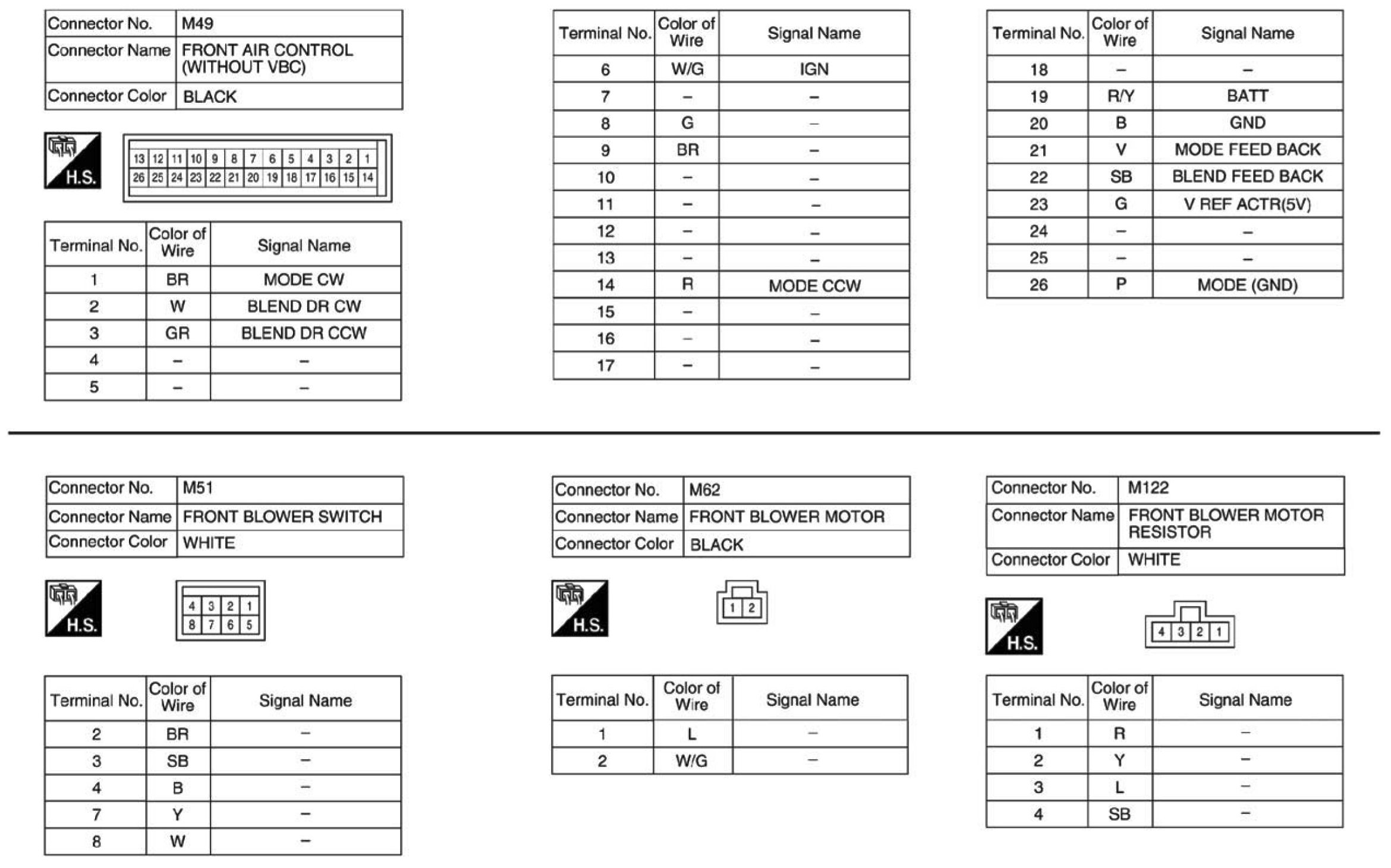

Heater Control Connector (Part 1):

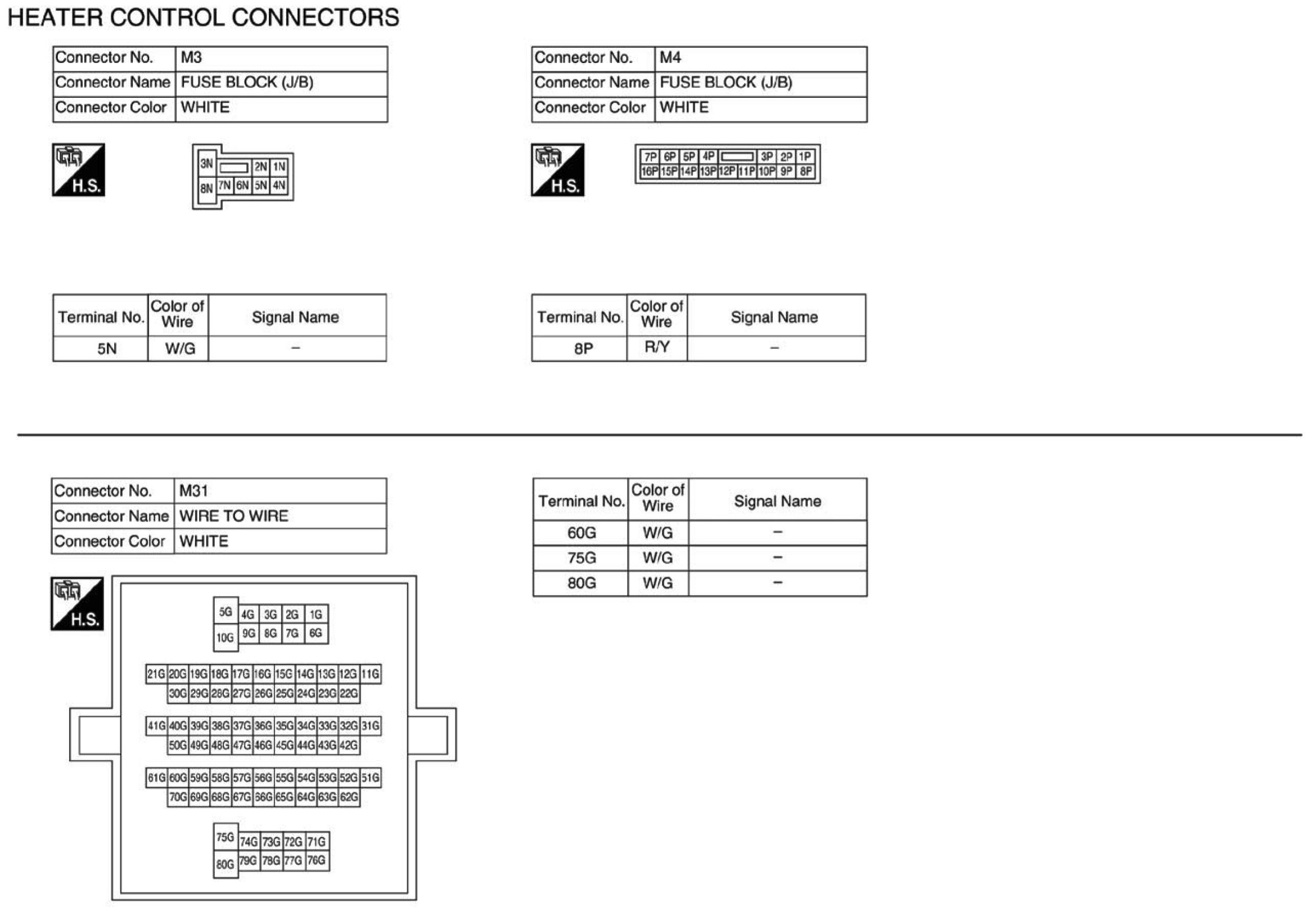

Heater Control Connector (Part 2):

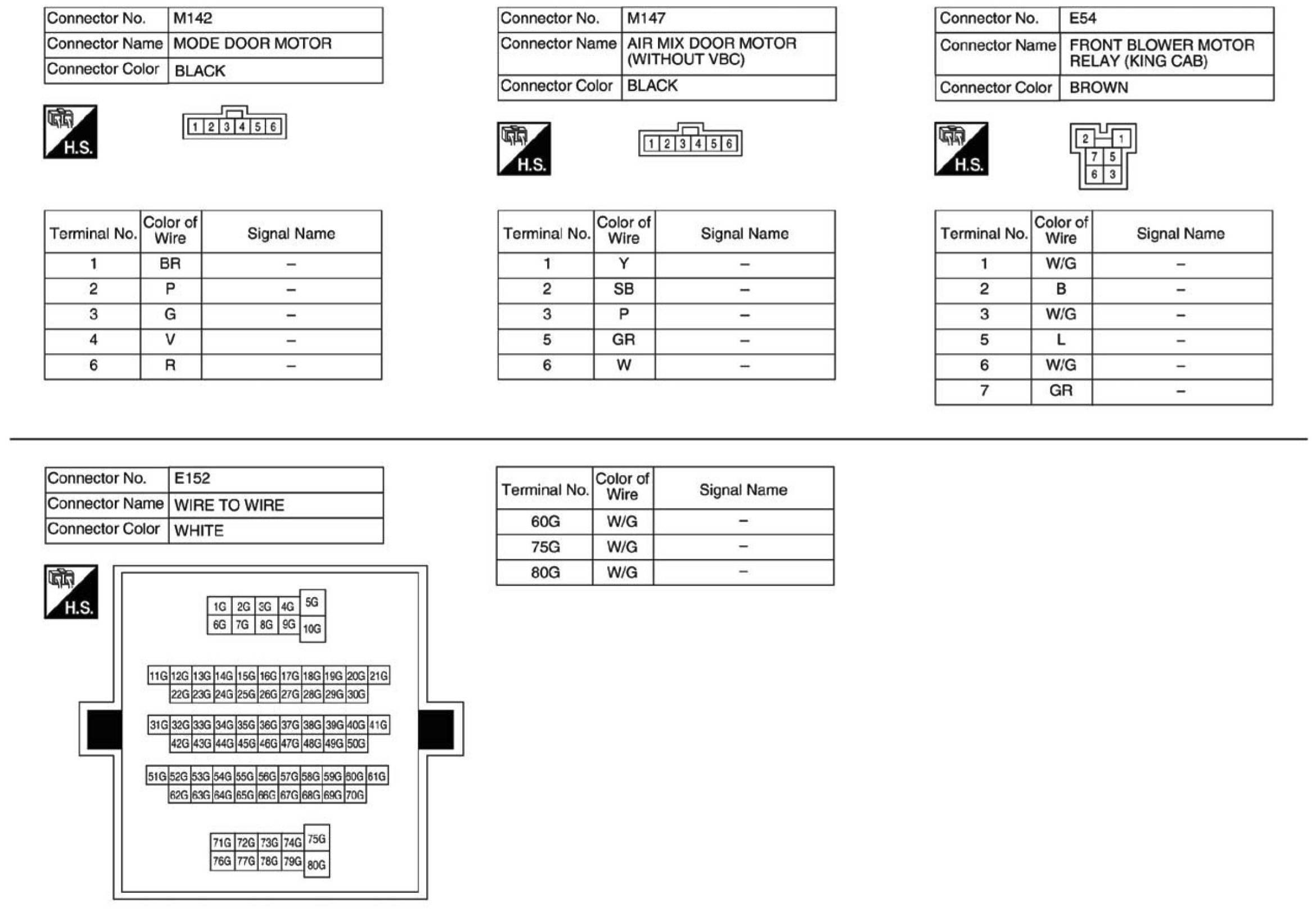

Heater Control Connector (Part 3):
