Instrument Panel, Gauges and Warning Indicators: Service and Repair

IPDM E/R: Removal and Installation

Removal
1. Disconnect negative battery terminal.

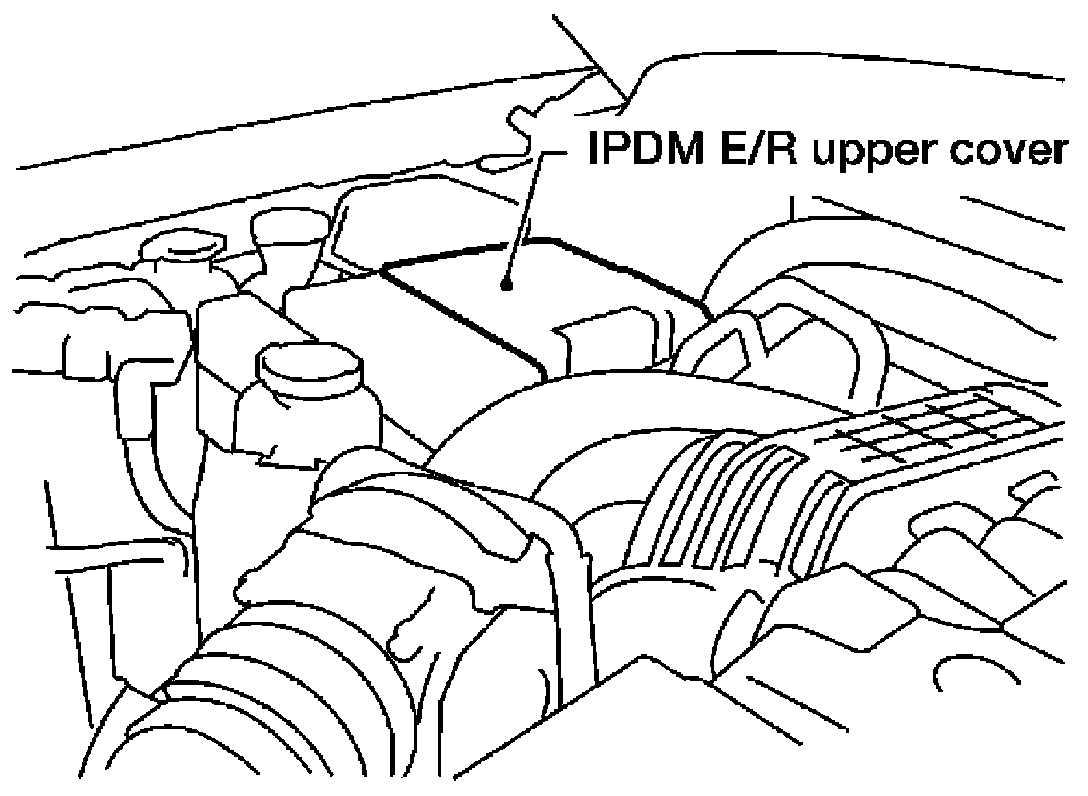

1. Remove IPDM E/R upper cover.

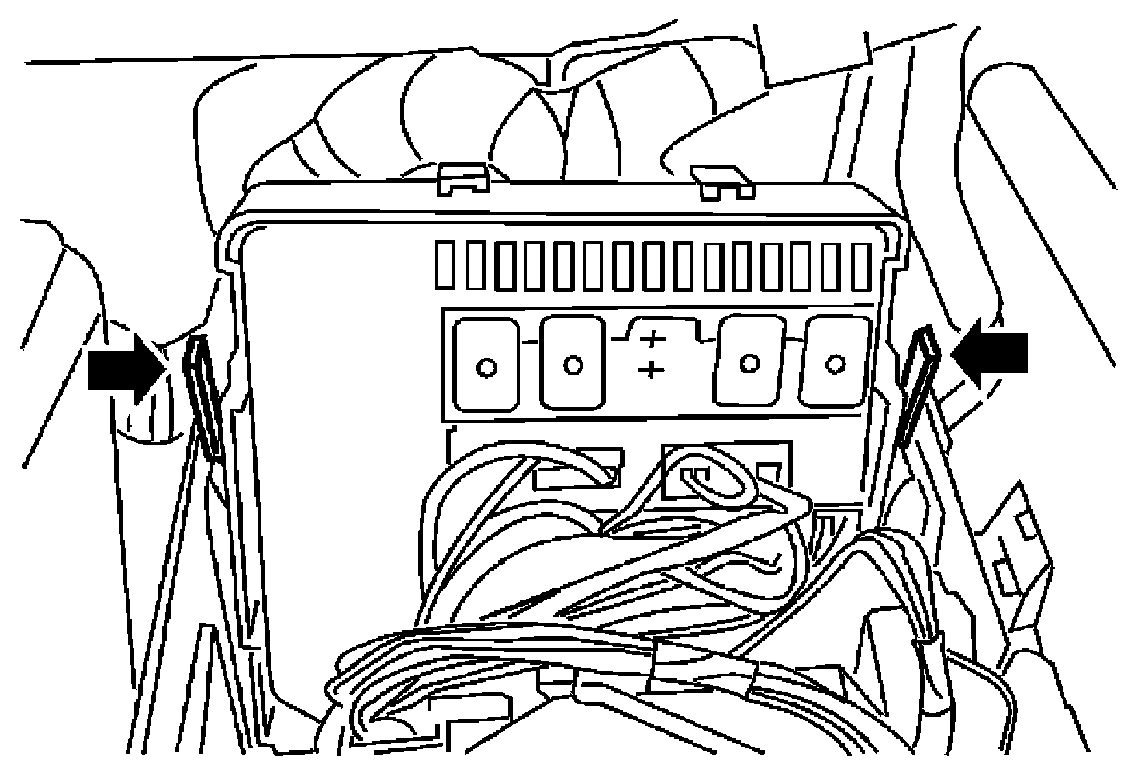

2. Release 2 clips and pull IPDM E/R up from case.






3. Disconnect IPDM E/R connectors and remove the IPDM E/R.

Installation
Installation is in the reverse order of removal.
