Pressure Plate: Specifications

5 M/T

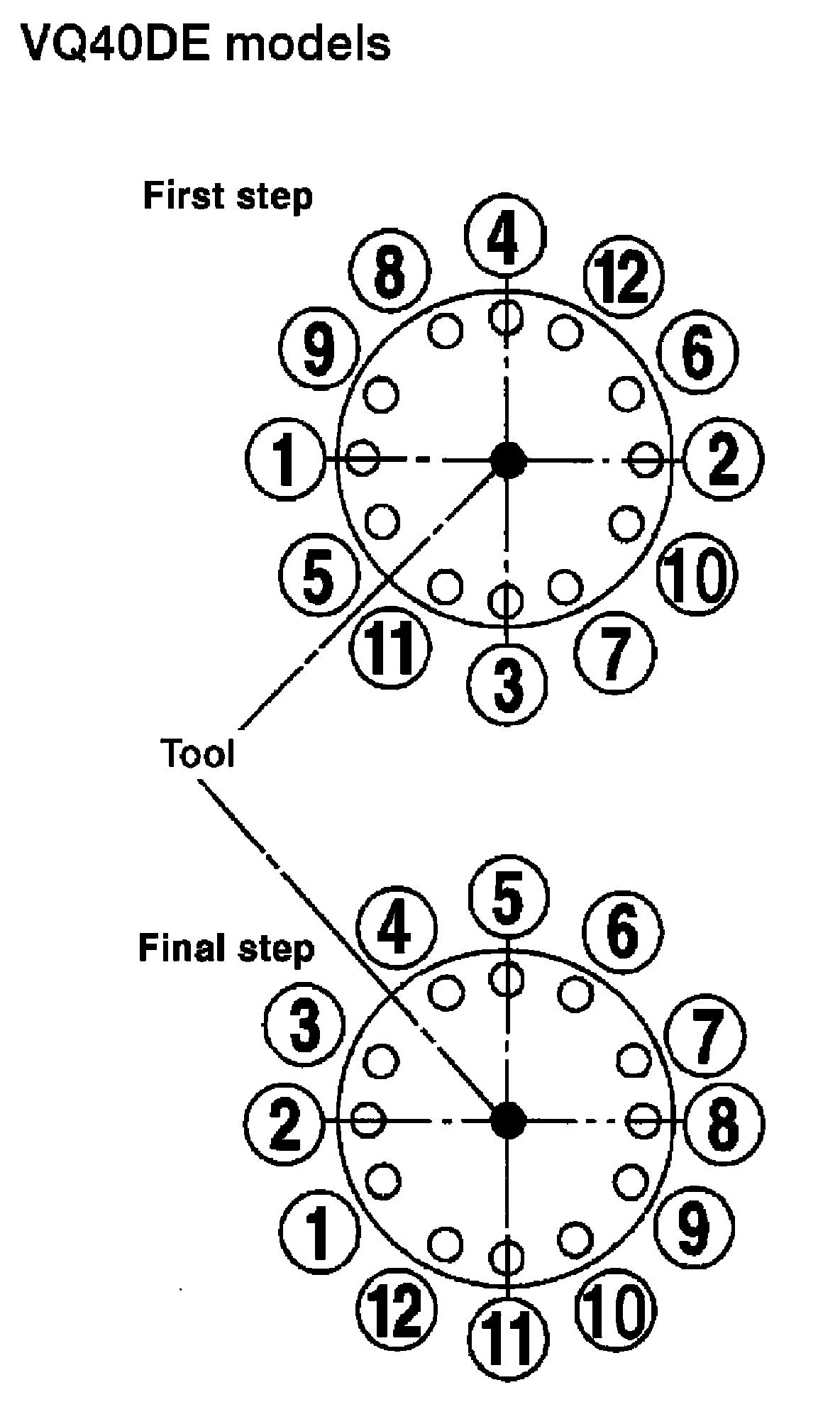

Clutch Cover bolts
First Step 15 N-m, (1.5 kg-m, 11 ft-lb)
Final Step 25 N-m, (2.6 kg-m, 19 ft-lb)





6 M/T
Clutch Cover bolts
First Step 15 N-m, (1.5 kg-m, 11 ft-lb)
Final Step 25 N-m, (2.6 kg-m, 19 ft-lb)
