Front Fender: Service and Repair

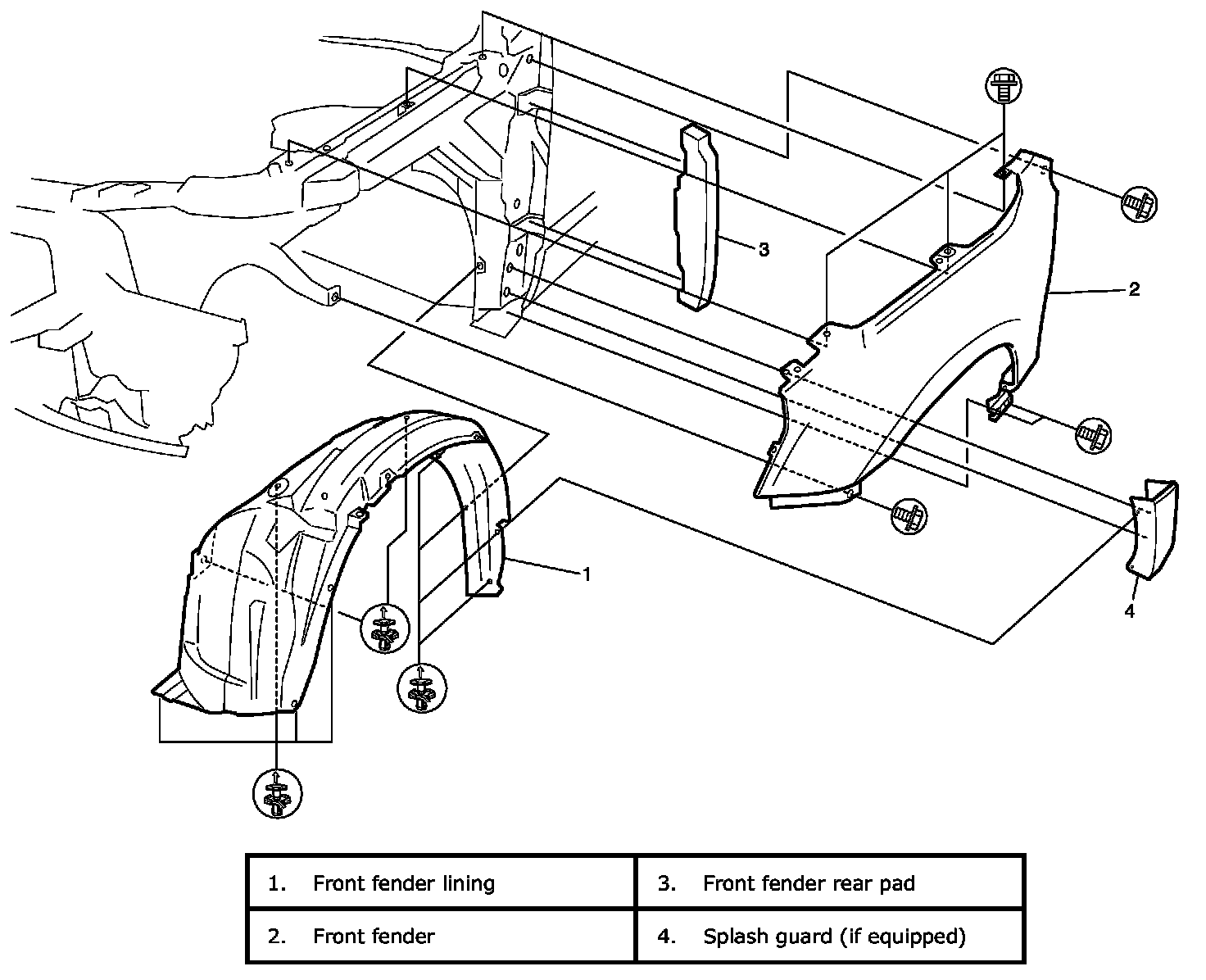

Front Fender Components

Front Fender Components:

Front Fender Removal and Installation

Removal

1. Remove splash guard (if equipped) referring to Splash Guard Components (If Equipped).
2. Remove front fender lining.
3. Remove front bumper referring to Front Bumper Components.
4. Remove headlight assembly referring to Headlight Housing Removal and Installation.
5. Remove cowl top garnishes referring to Cowl Top Components
6. Remove front fender.

Installation

Reverse removal procedure to install front fender noting the following instruction.
- If paint on fender bolt is peeled off, be sure to apply paint again.
- Adjust panel clearance referring to Panel Clearance.
