Suzuki Truck
>>
2010
>>
Grand Vitara 4WD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
L Connectors
L Connectors
L Connector

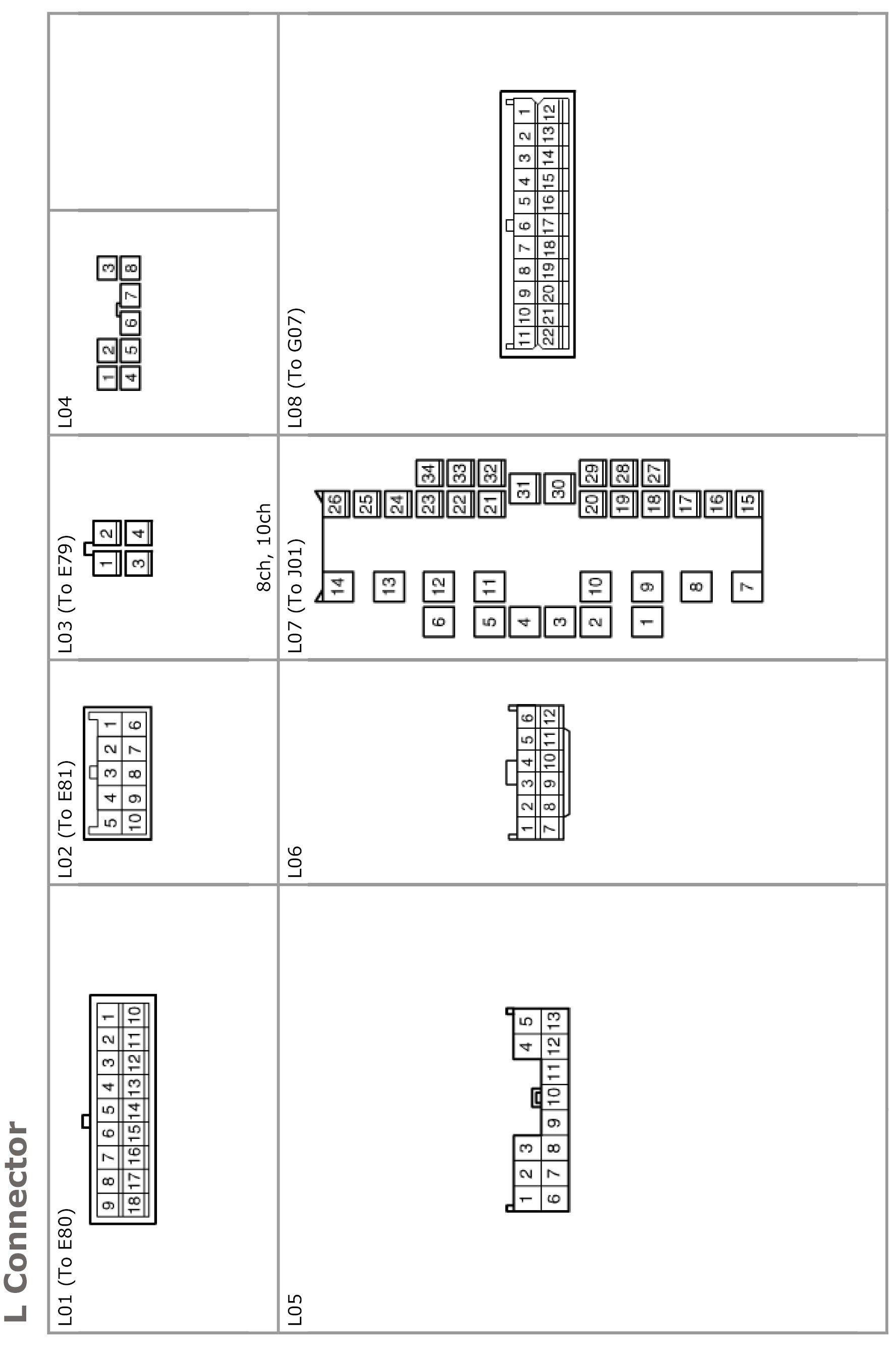

L01 - L08:

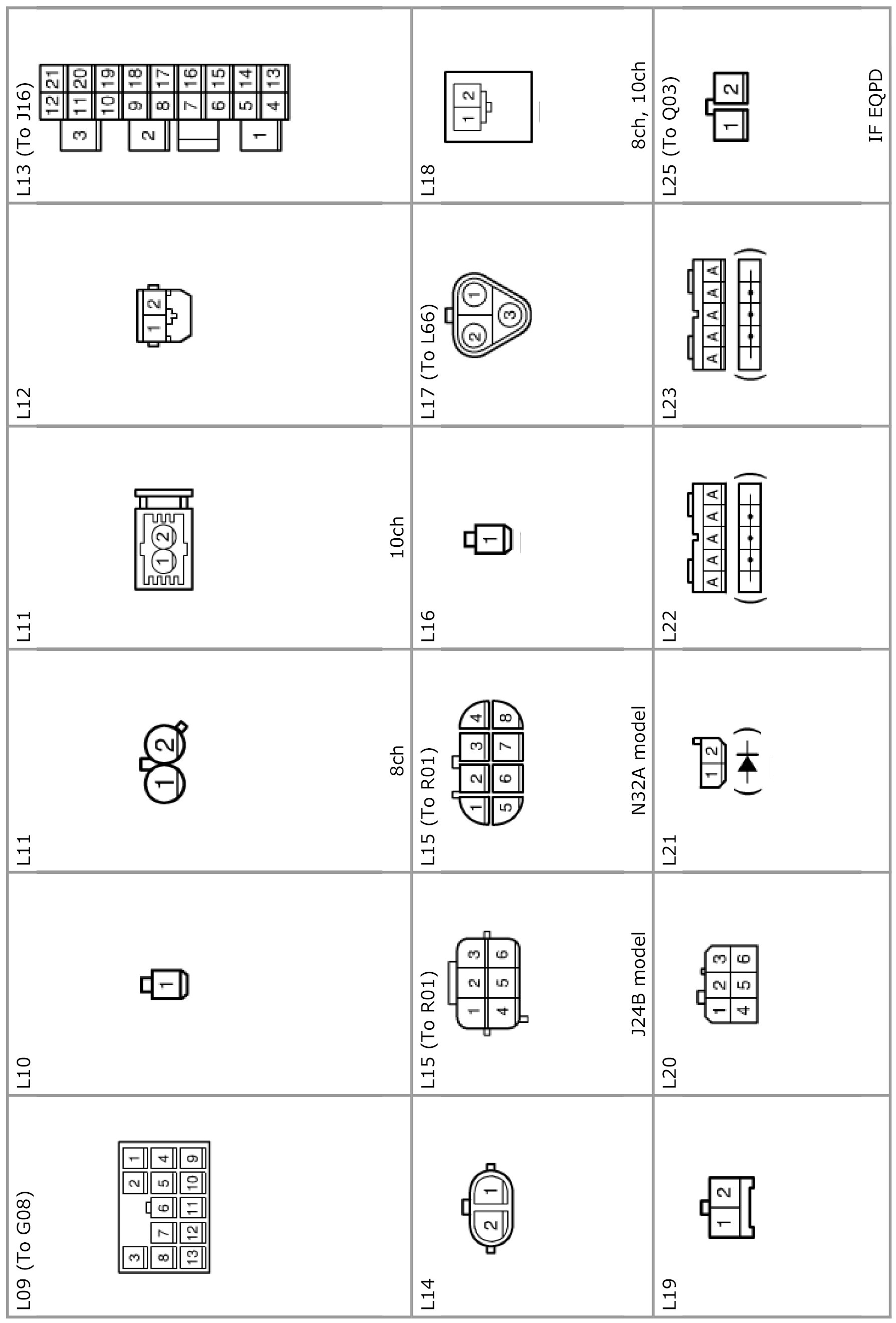

L09 - L25:

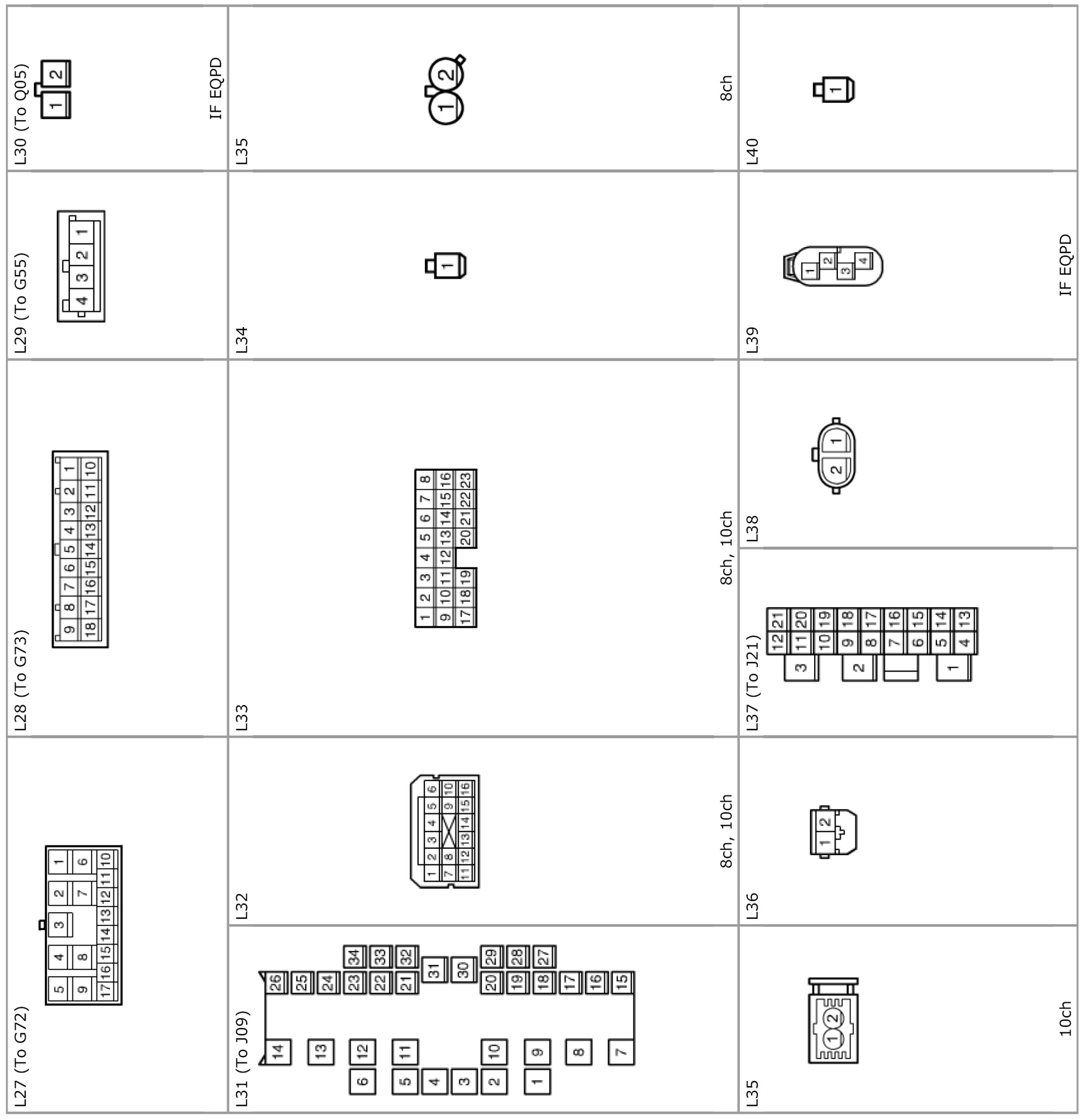

L27 - L40:

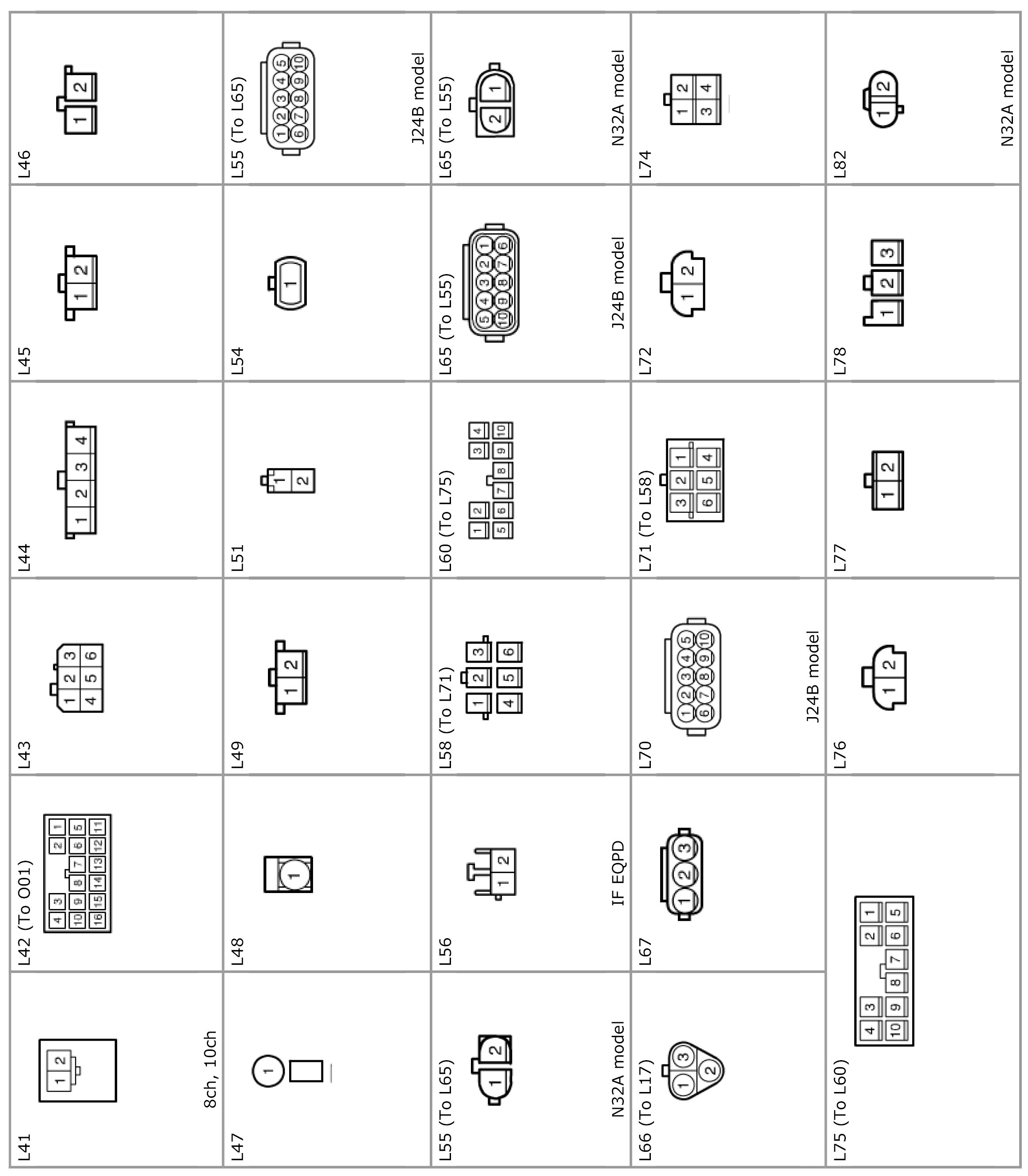

L41 - L82:
