Hydraulic Control Assembly - Antilock Brakes
Hydraulic Control Assembly - Antilock Brakes

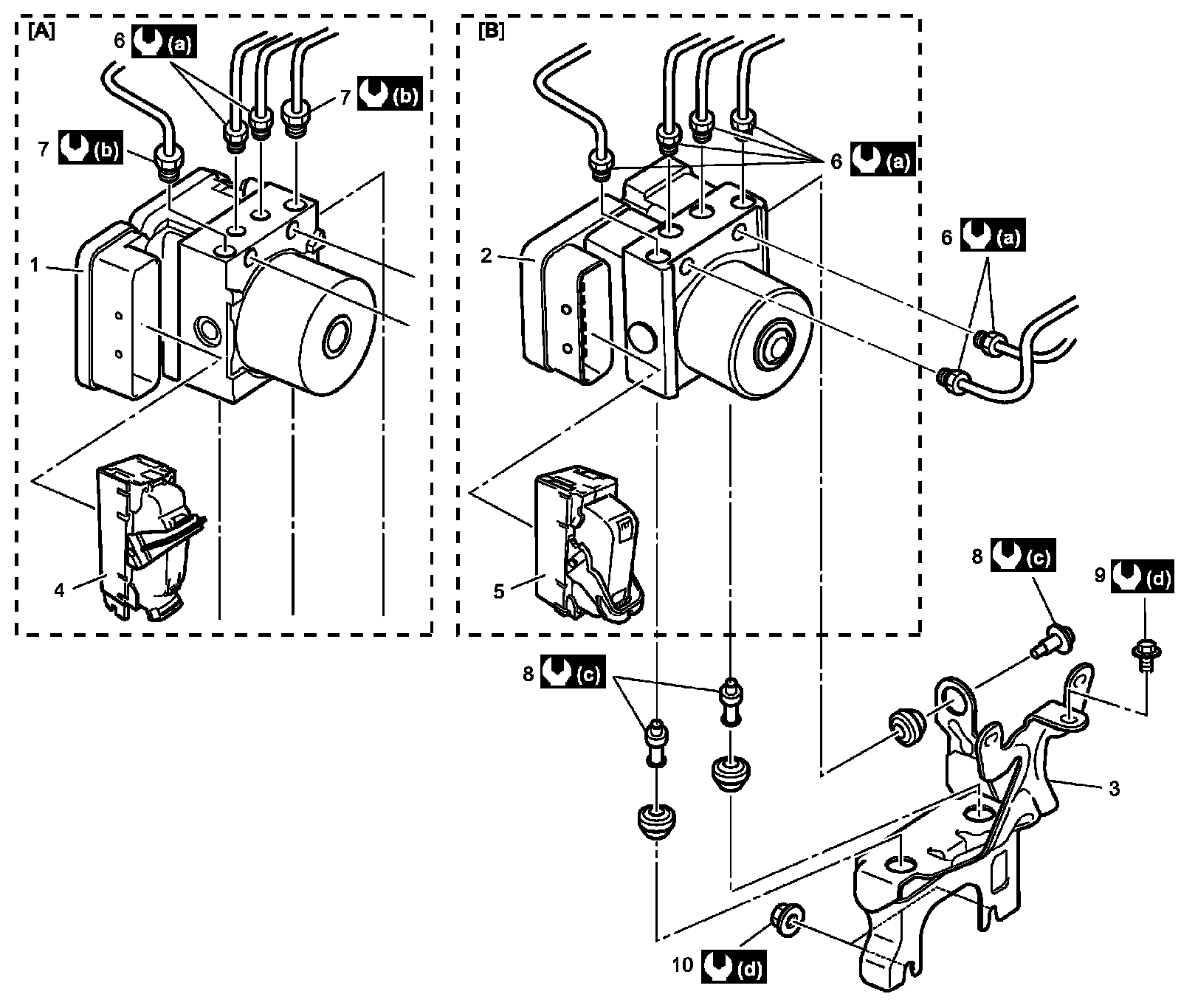

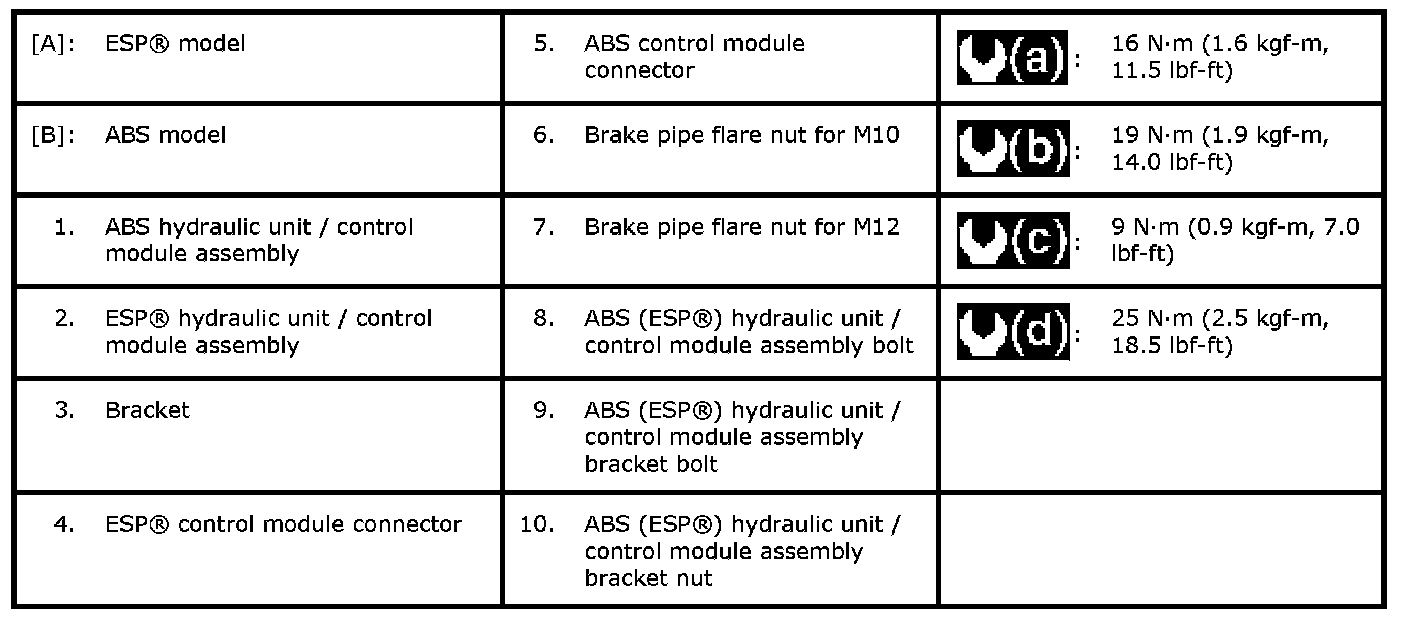

ABS (ESP) Hydraulic Unit / Control Module Assembly Components
