Locations
>>
Harness Locations
>>
Around Engine
Around Engine
Around Engine
Engine Harness

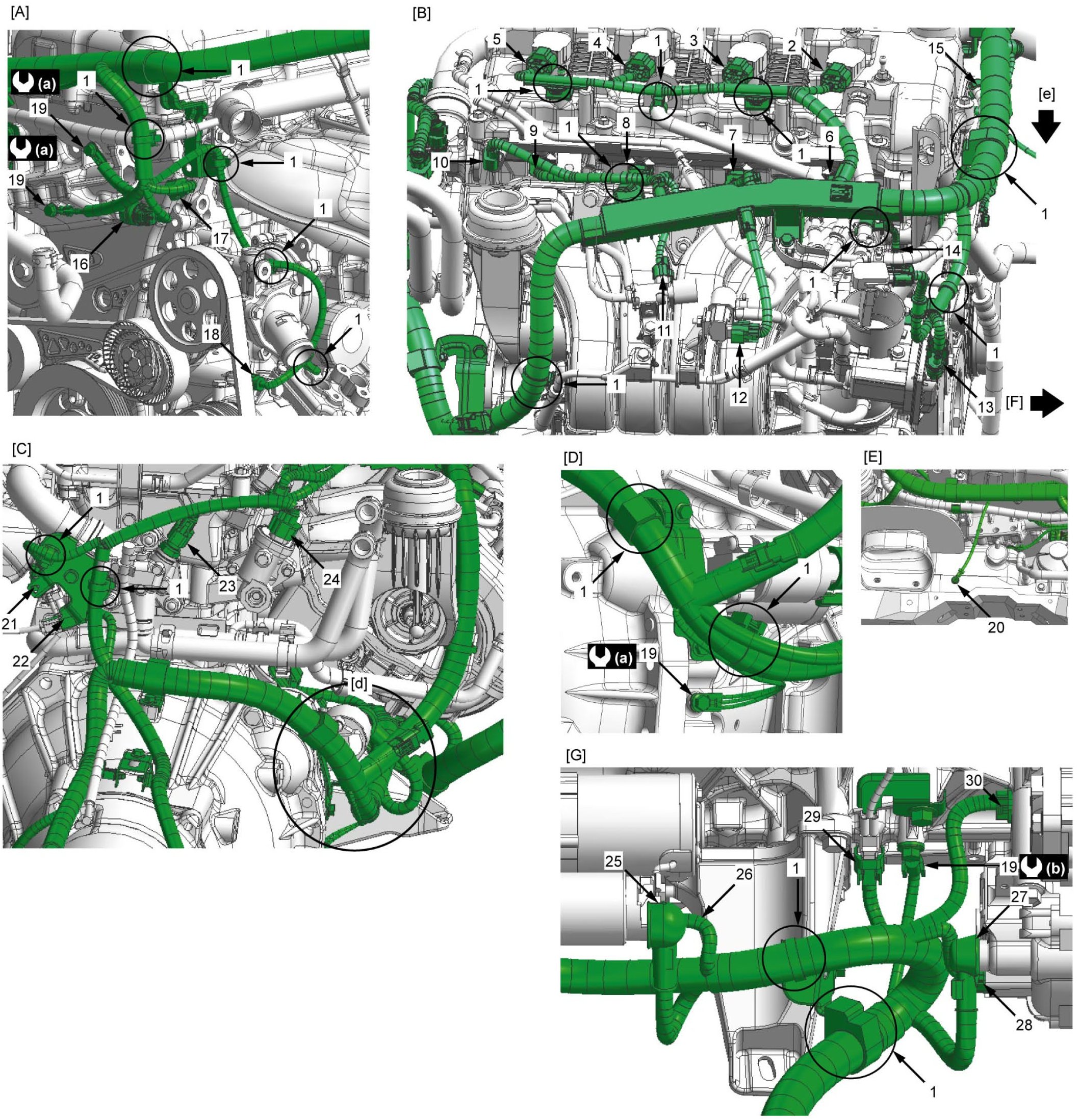

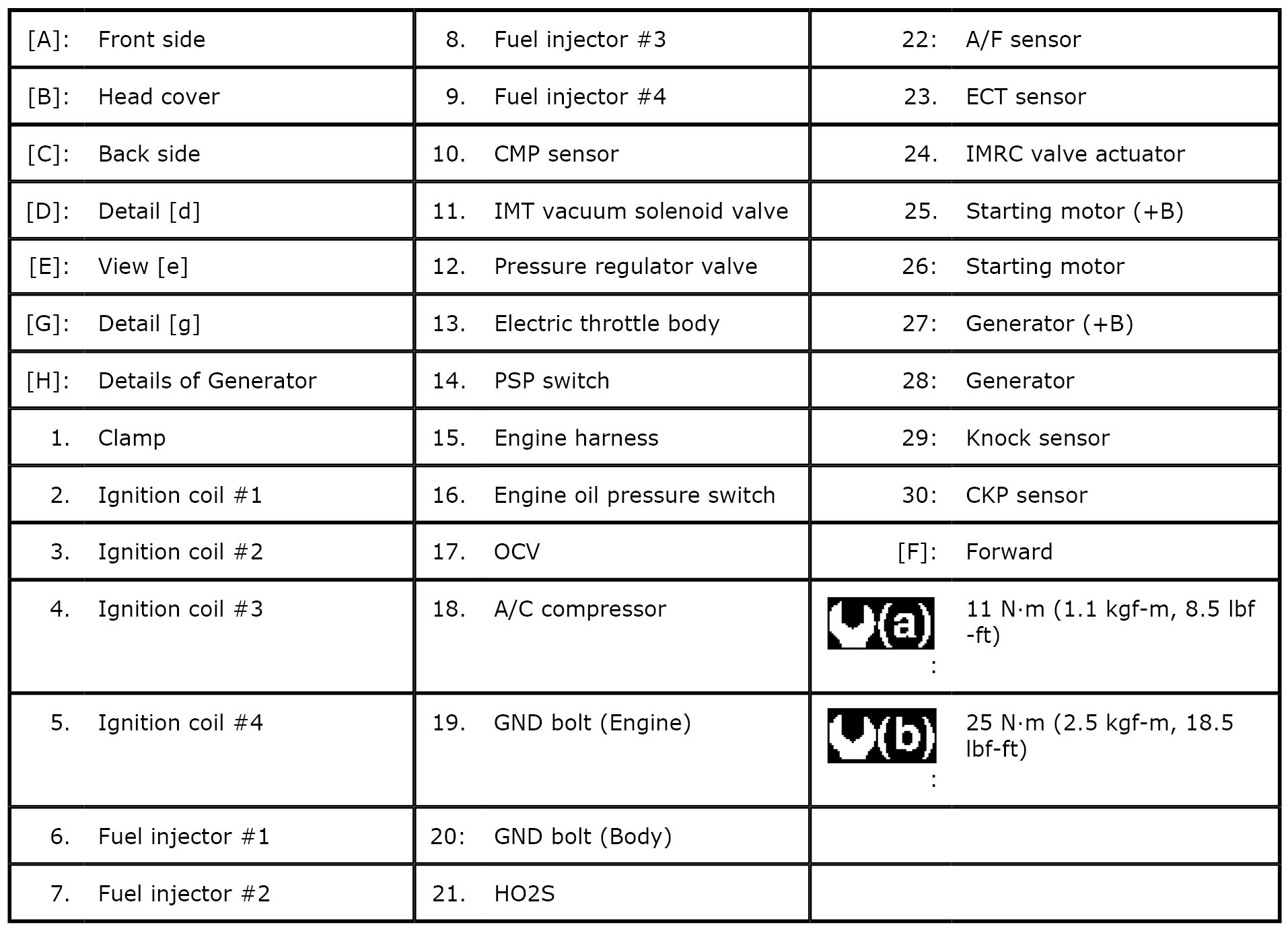

Around Engine - Engine Harness (Part 1):
Around Engine - Engine Harness (Part 2):
