Suzuki Truck
>>
2010
>>
Grand Vitara 4WD L4-2.4L
>>
Repair and Diagnosis
>>
Locations
>>
Harness Locations
>>
Around Strut
Around Strut
Around Strut
Right Side

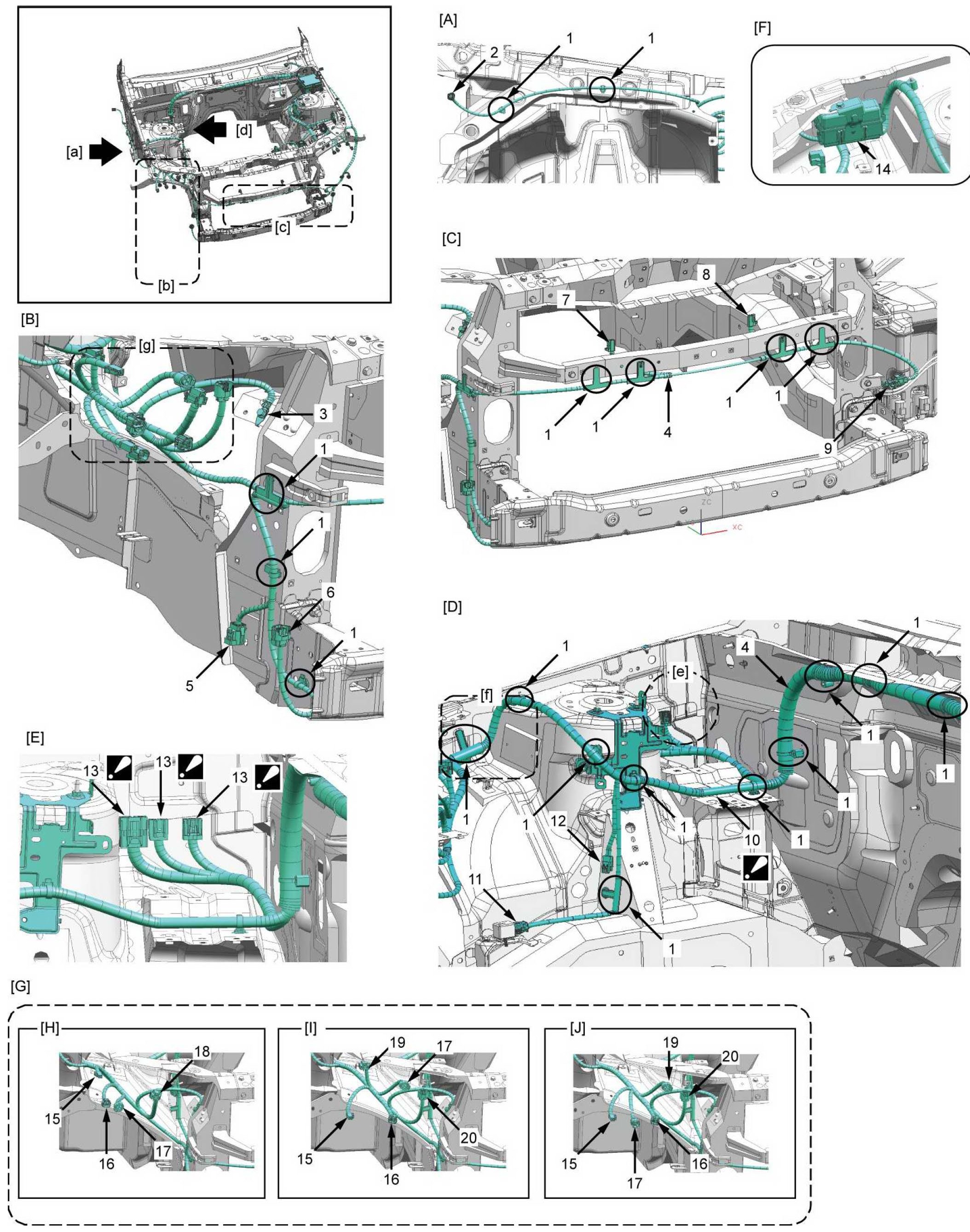

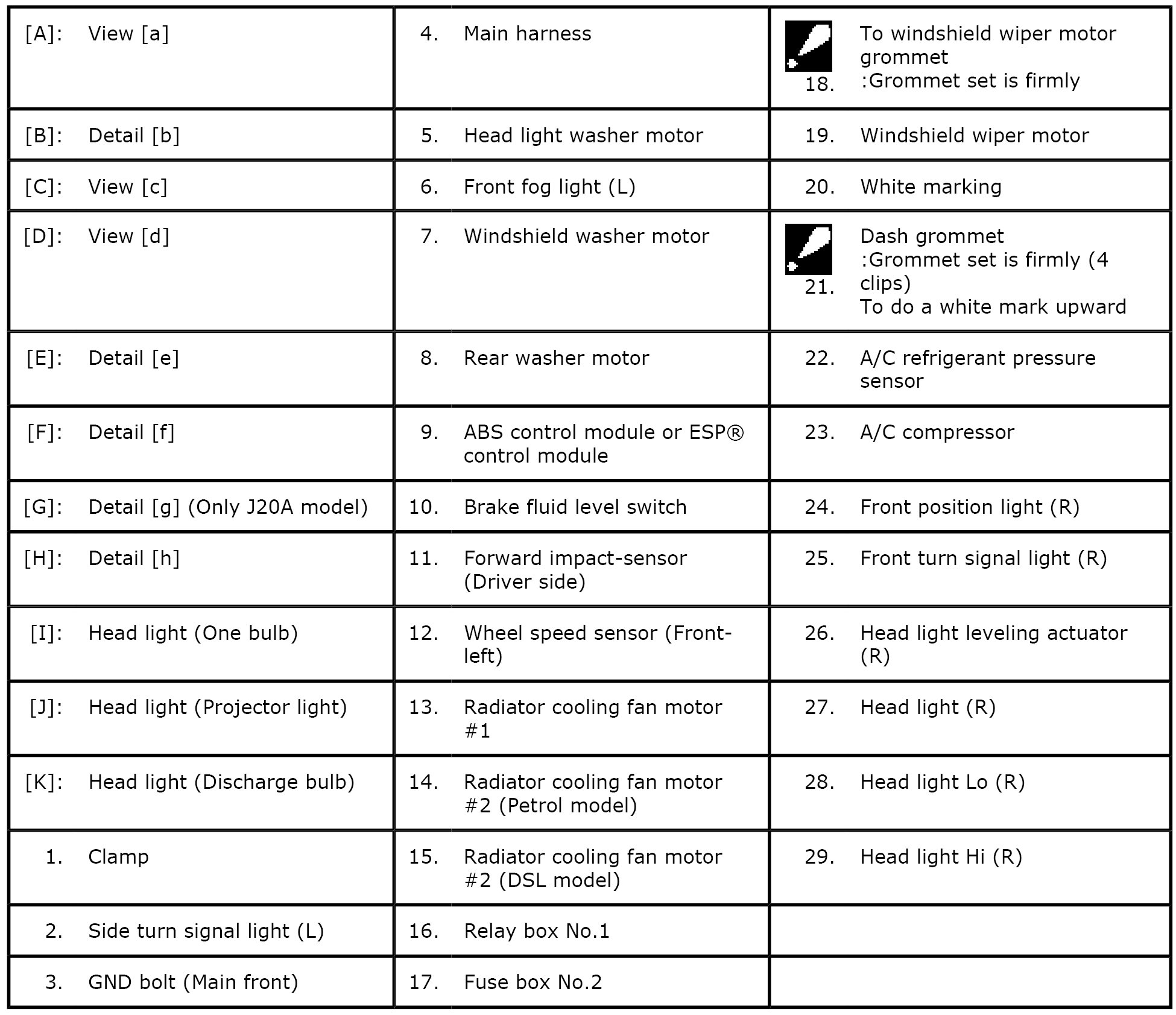

Around Strut - Right Side (Part 1):
Around Strut - Right Side (Part 2):
Left Side

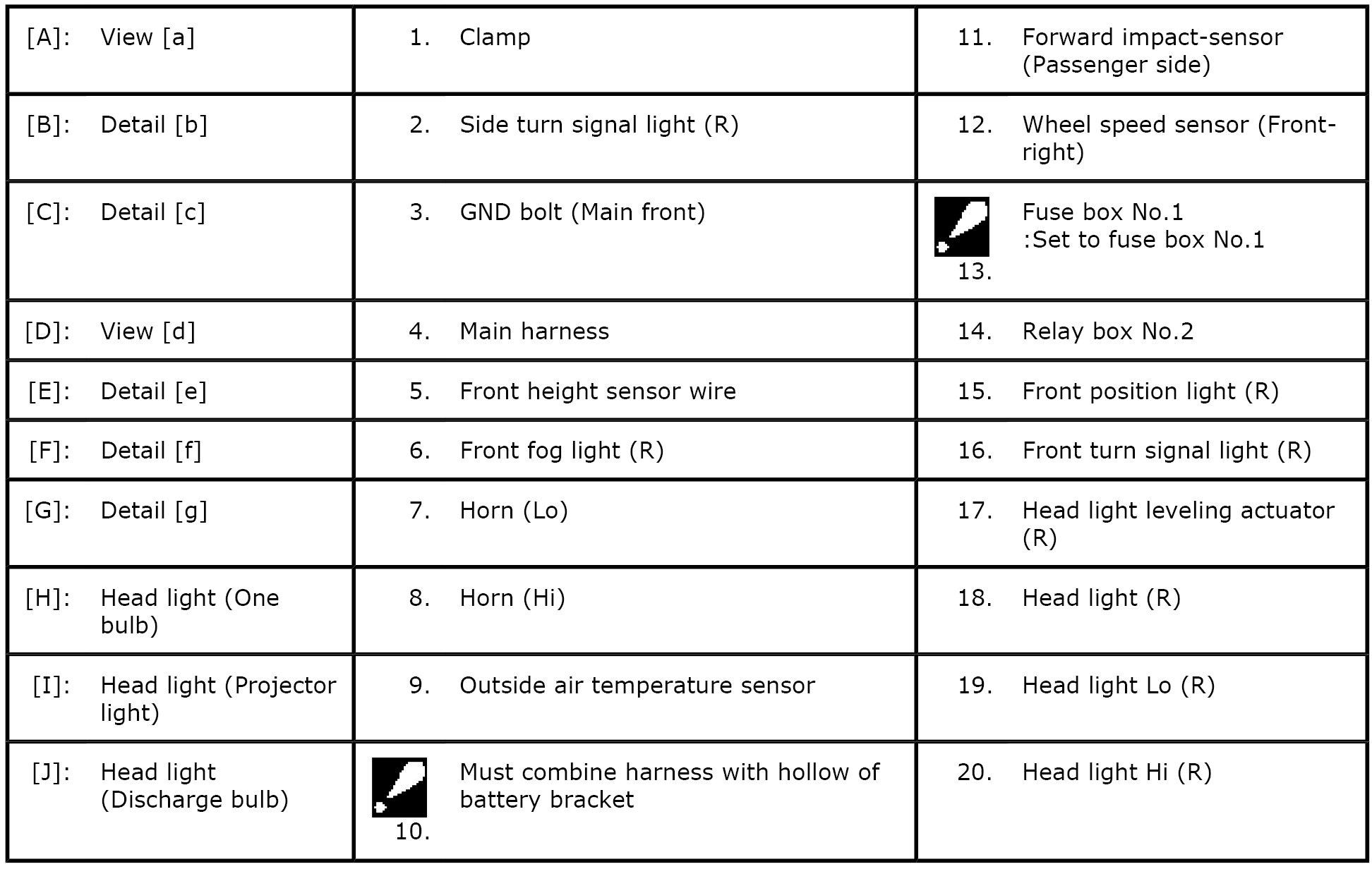

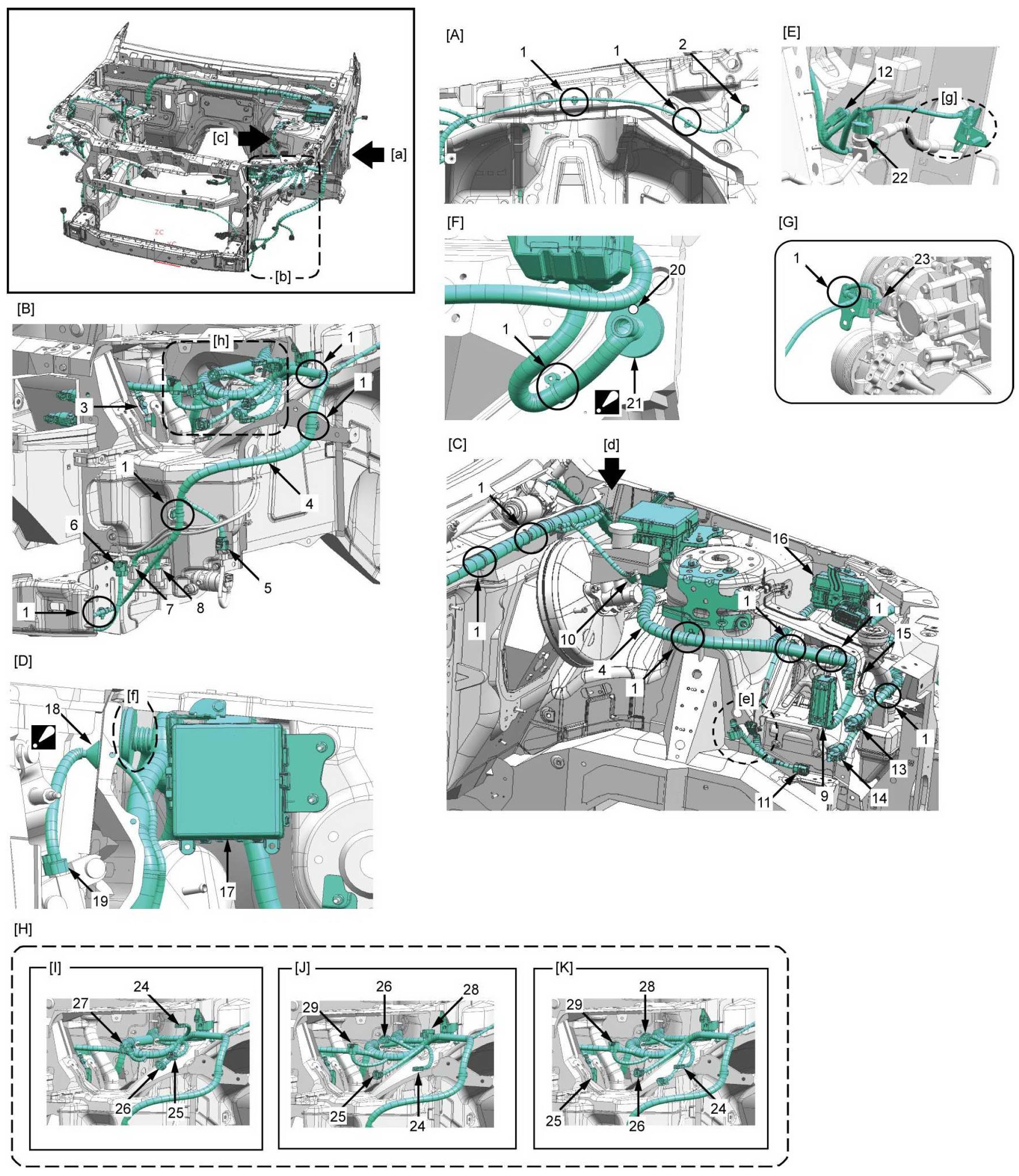

Around Strut - Left Side (Part 1):
Around Strut - Left Side (Part 2):
