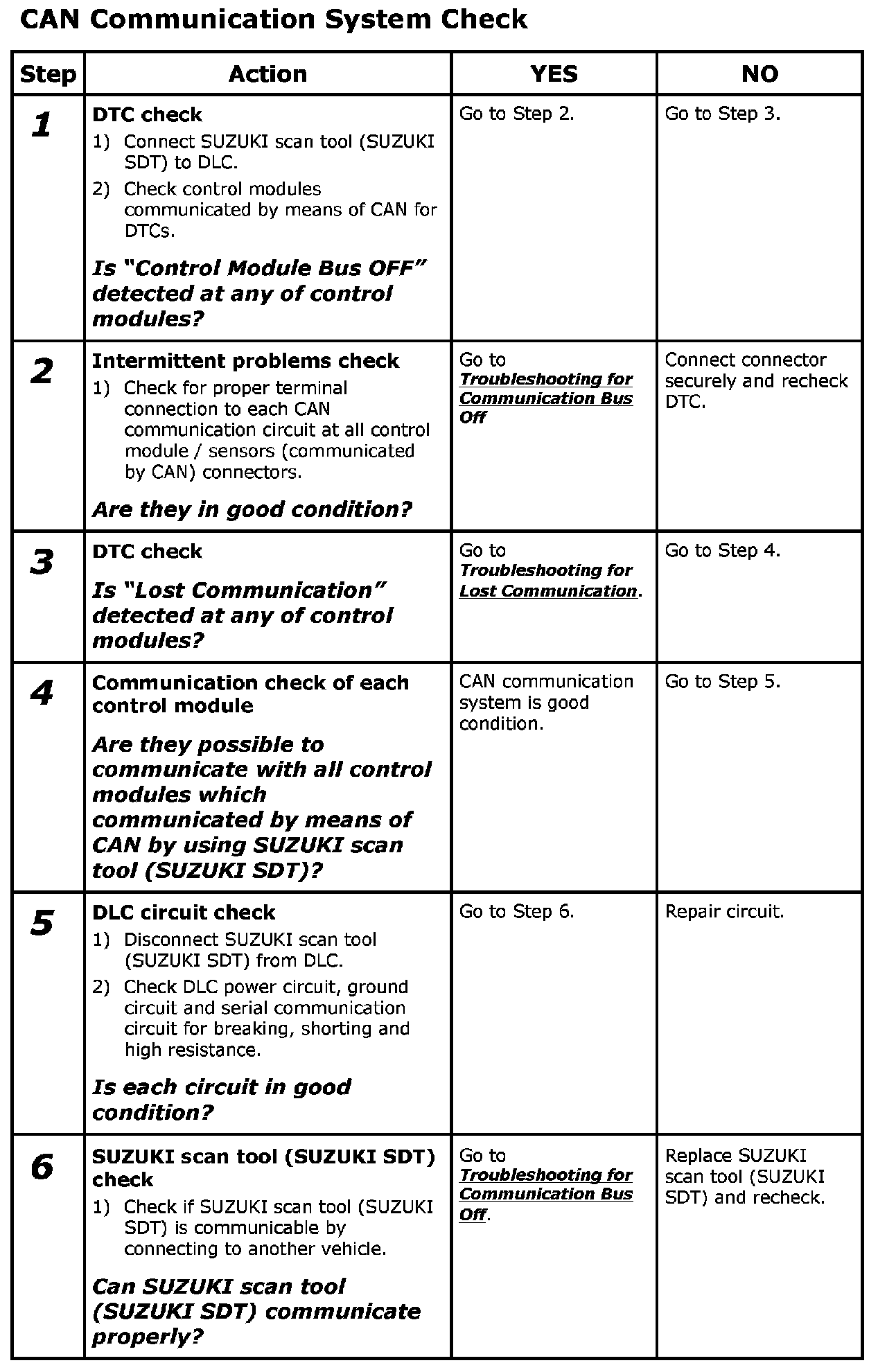

CAN Communication System Check
CAN Communication System Check
CAN Communication System Check
Step 1-6:
