Engine Control System Circuit Diagram

Engine Control System Circuit Diagram

NOTE: For identification of each cylinder, refer to Precautions for Identification of Cylinder:J24B.

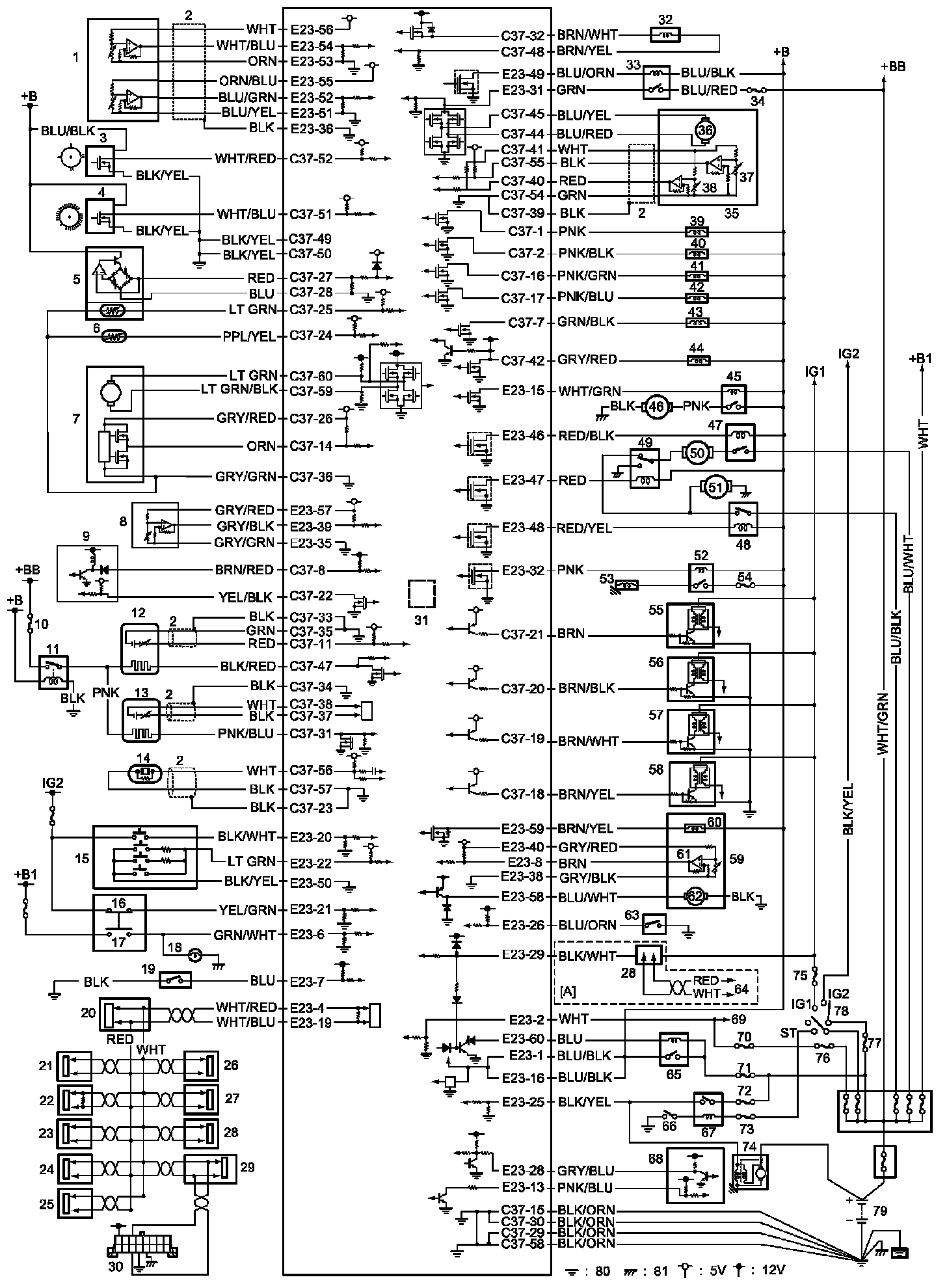

Engine Control System Circuit Diagram (Part 1):

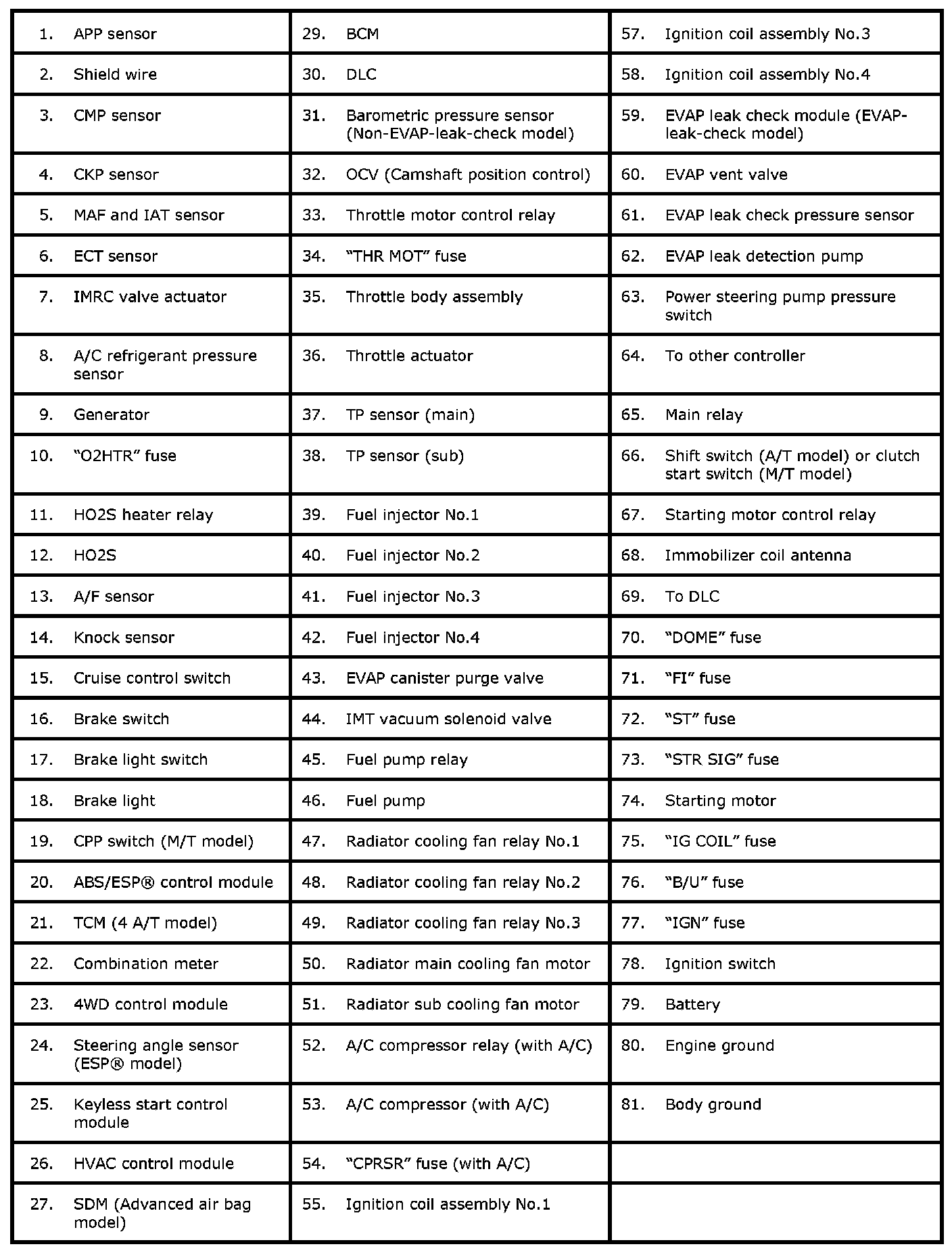

Engine Control System Circuit Diagram (Part 2):
