Oil Pan, Engine

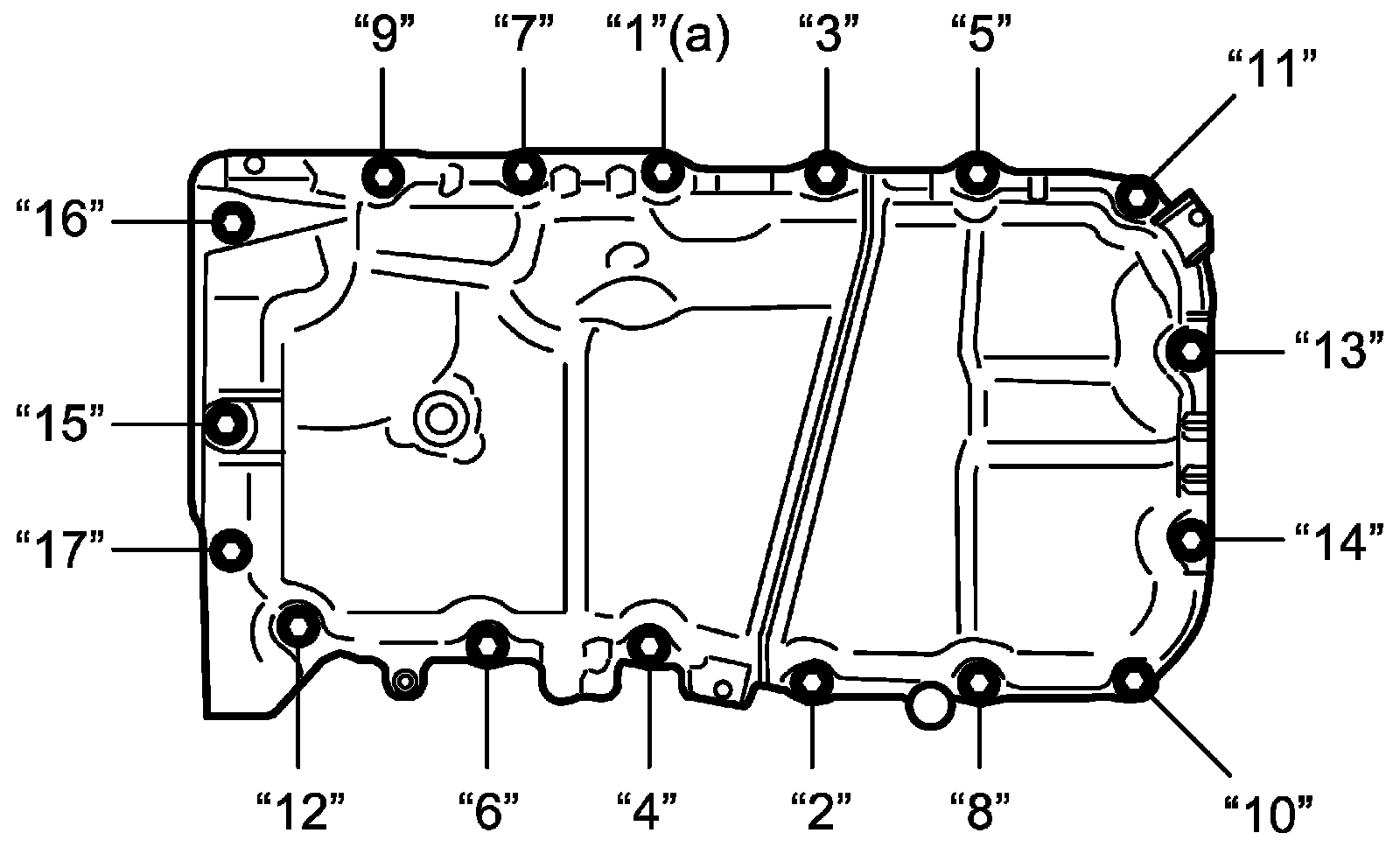

Tighten oil pan bolts to 15 Nm (1.5 kgf-m, 11.0 lbf-ft) in numerical order ("1" - "17") evenly and gradually.
In the same manner as Step b), retighten them to 25 Nm (2.5 kgf-m, 18.5 lbf-ft).
Tighten oil pan bolts to 15 Nm (1.5 kgf-m, 11.0 lbf-ft) in numerical order ("1" - "17") evenly and gradually.
In the same manner as Step b), retighten them to 25 Nm (2.5 kgf-m, 18.5 lbf-ft).
