System Specifications

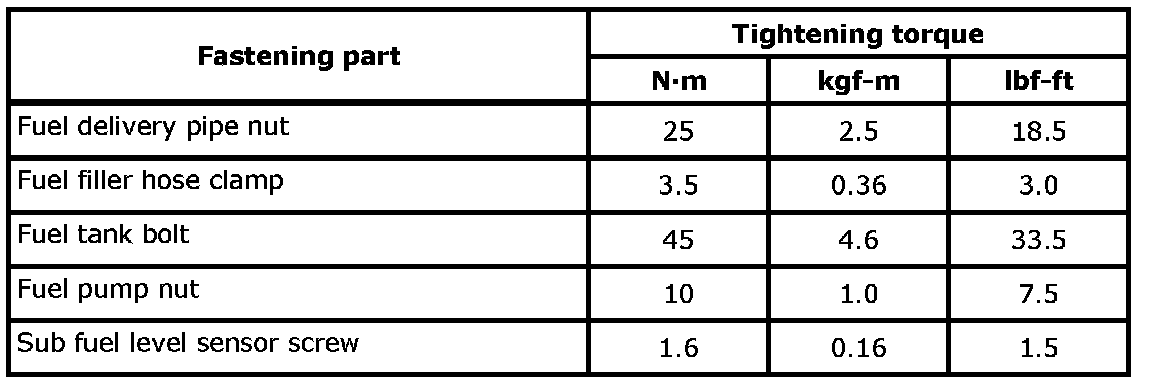

Tightening Torque Specifications

CAUTION: For fastener with * (asterisk) below, be sure to tighten it according to specified procedure in "Repair Instructions".






NOTE:
The specified tightening torque is also described in the following.
Fuel System Components:J24B
Fuel Hose Disconnecting and Reconnecting:J24B
