System Specifications

Service Data and Specifications

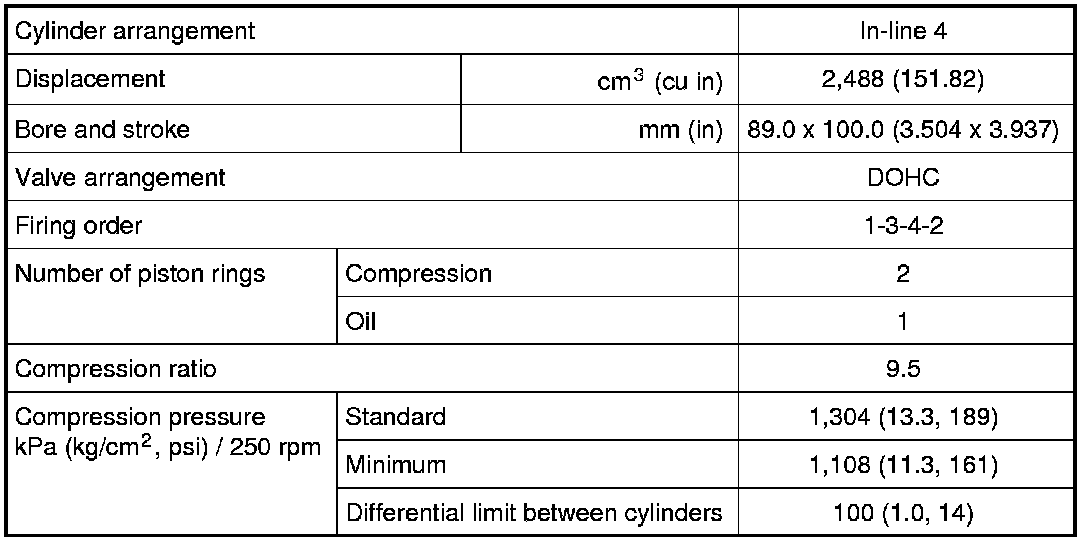

General Specifications






Drive Belt

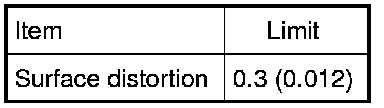

Exhaust Manifold and Three Way Catalyst Assembly

Unit: mm (in)

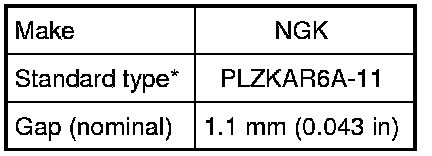

Spark Plug





*: Always check with the Parts Department for the latest parts information

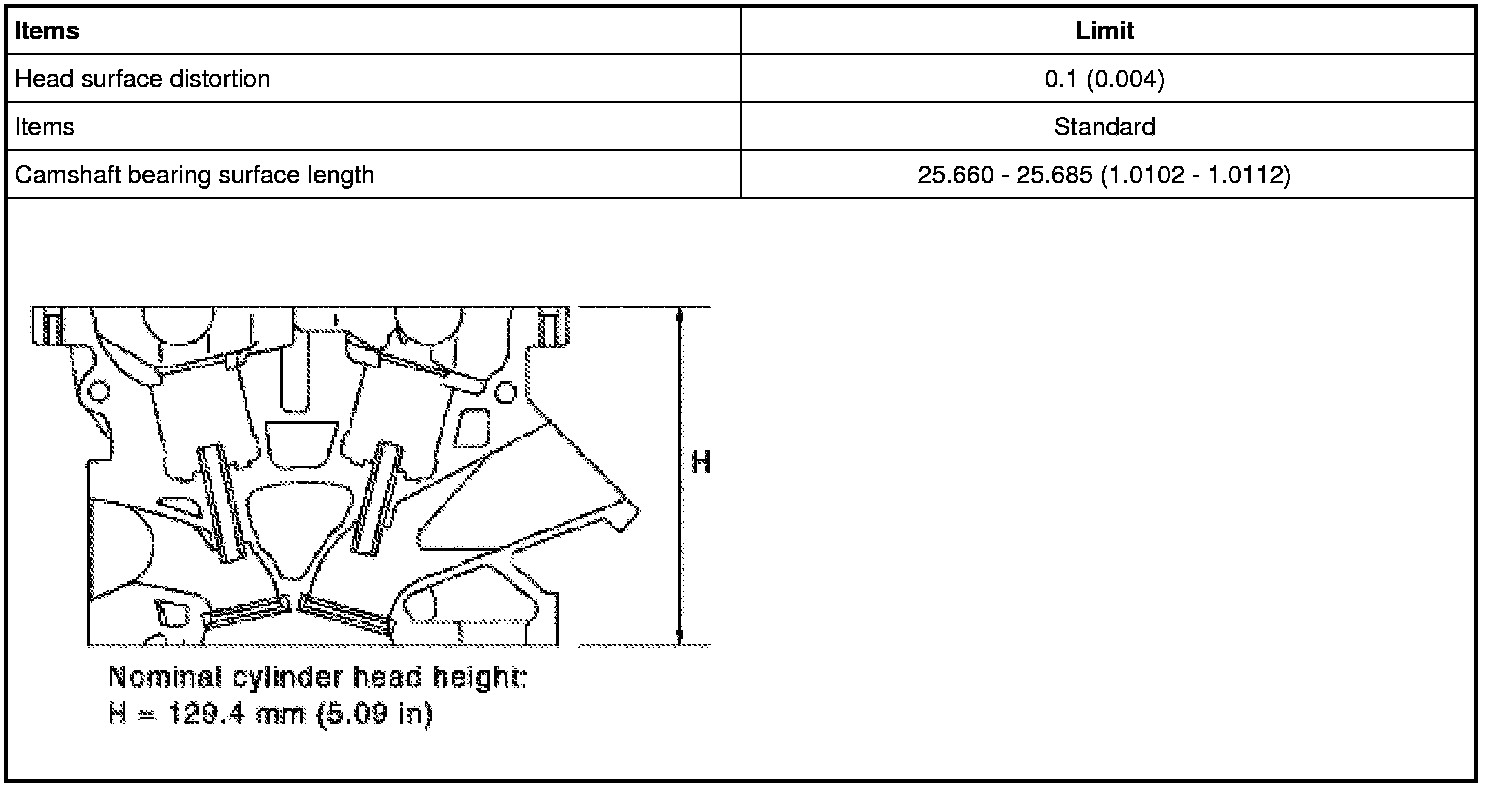

Cylinder Head

Unit: mm (in)






Valve

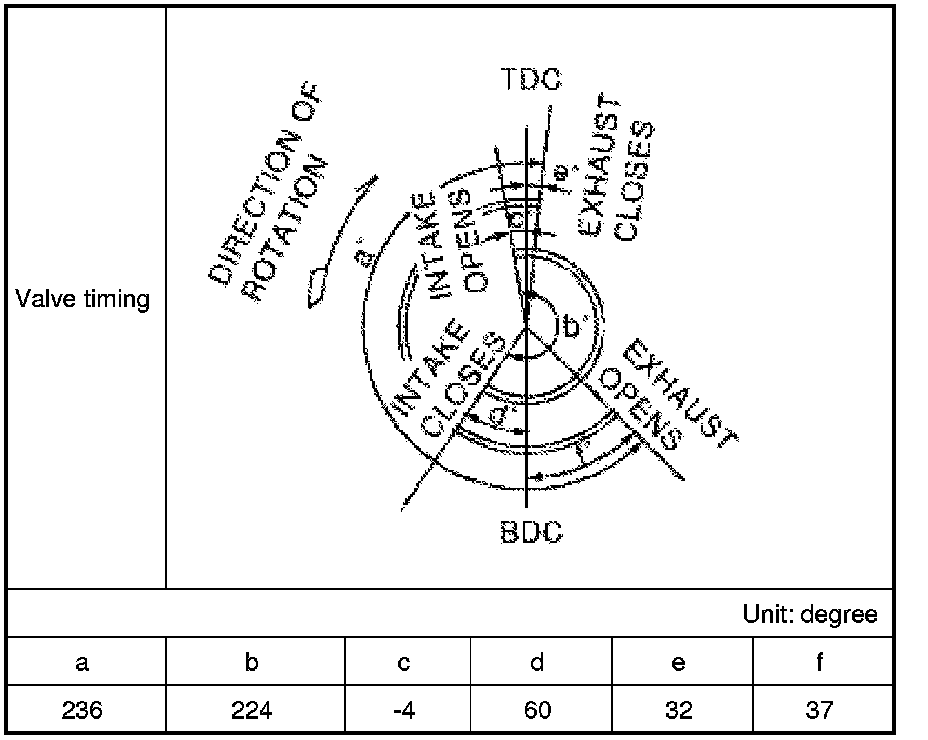

Valve Timing

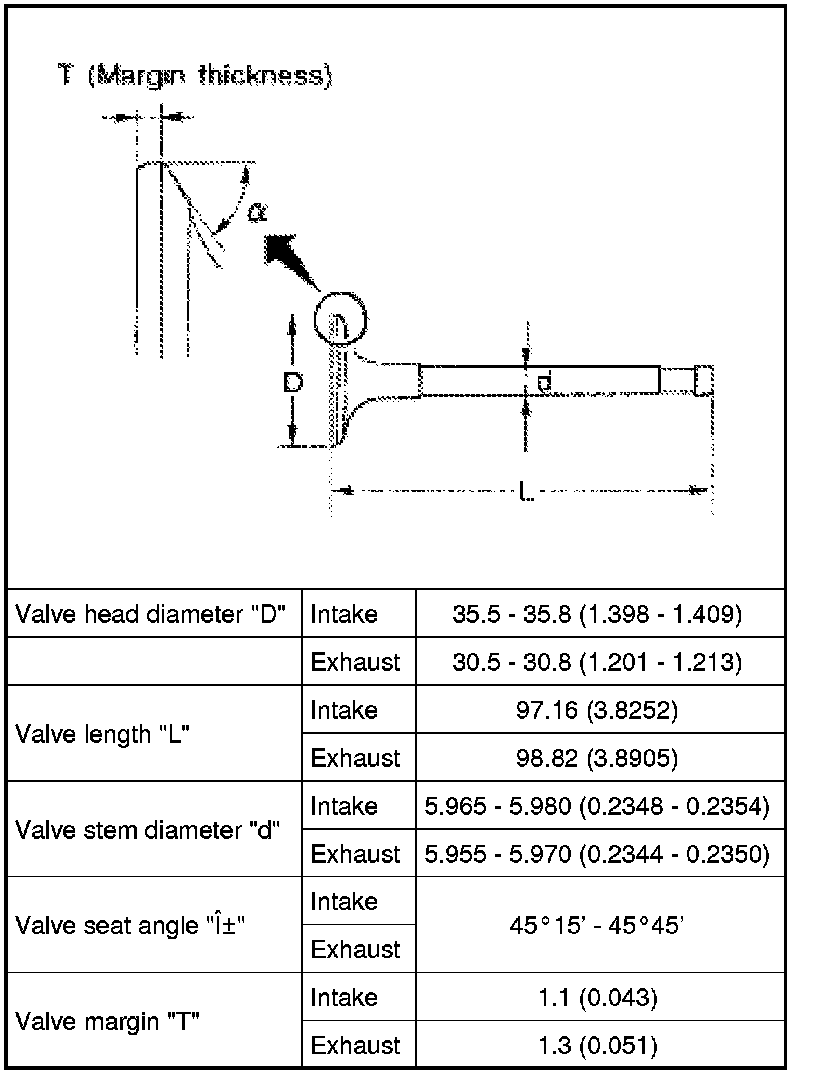

Valve Dimensions

Unit: mm (in)

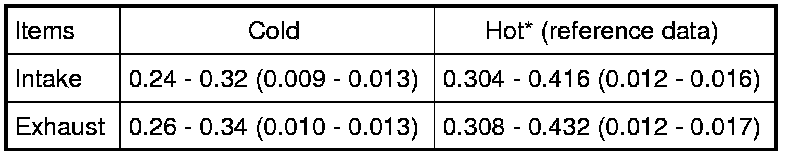

Valve Clearance

Unit: mm (in)






*: Approximately 80°C (176°F)

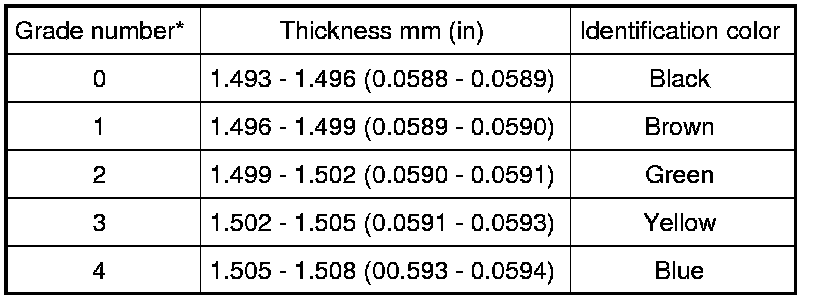

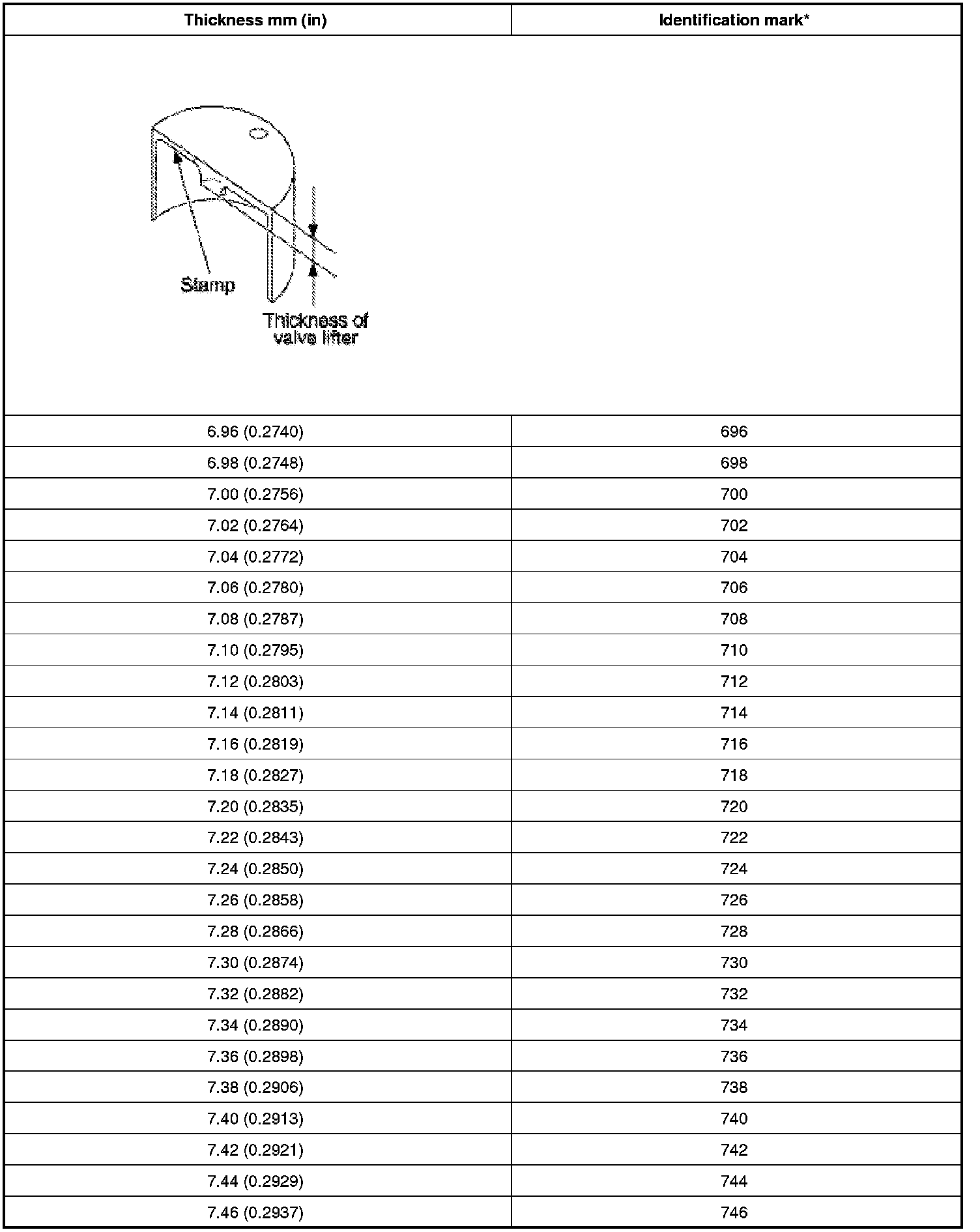

Available Valve Lifter





*: Always check with the Parts Department for the latest parts information

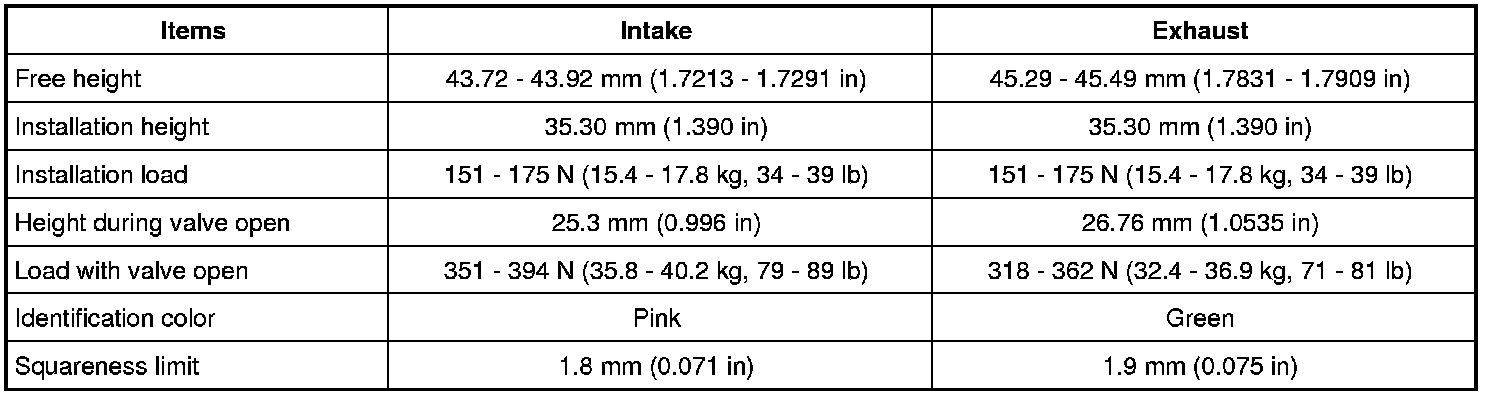

Valve Spring

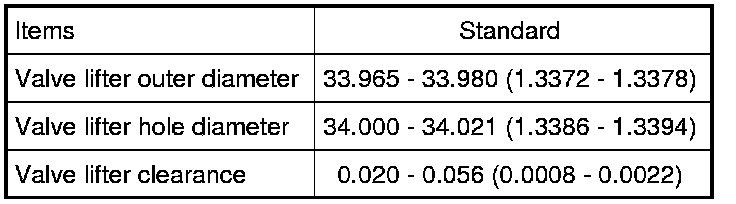

Valve Lifter

Unit: mm (in)

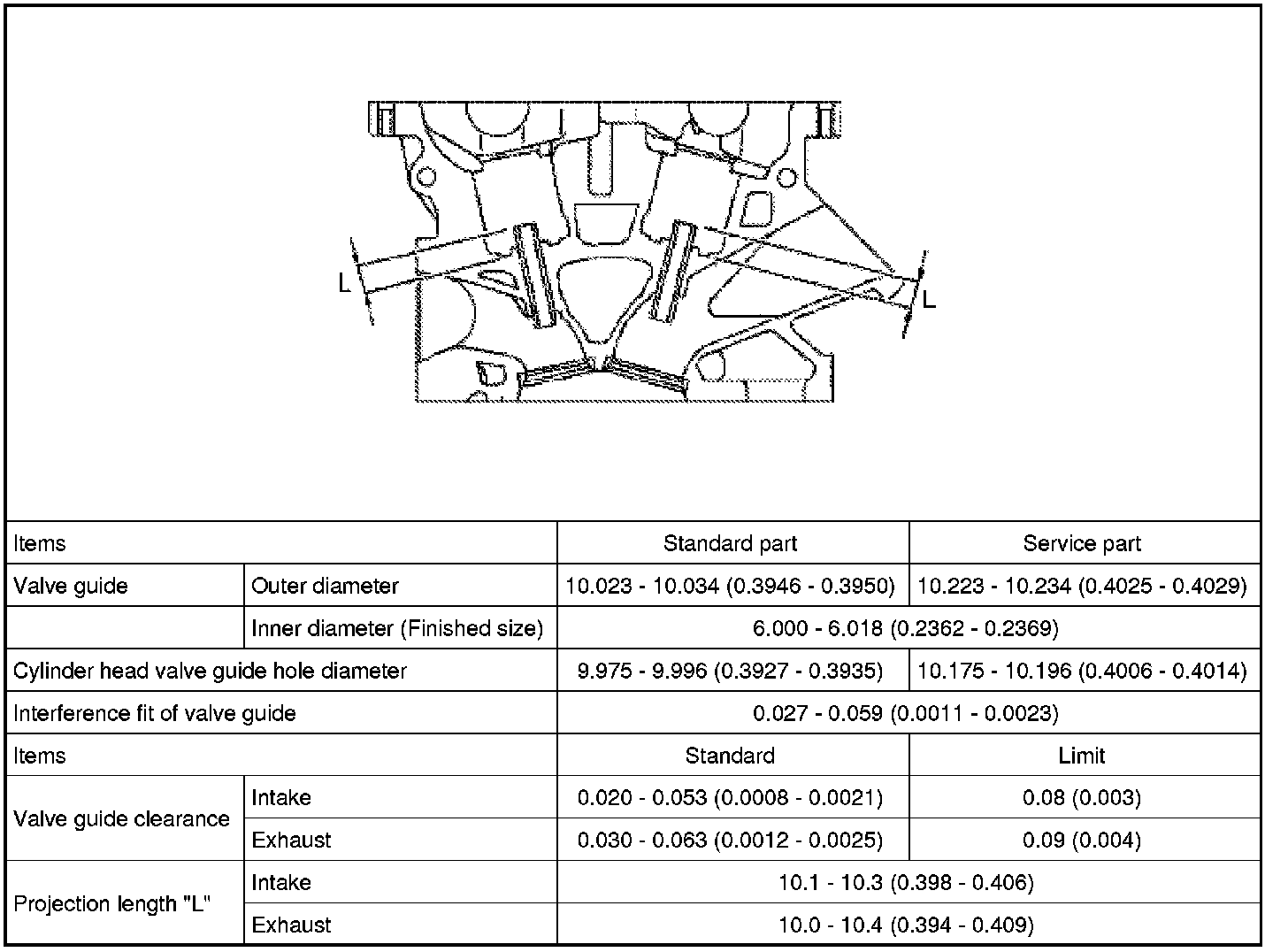

Valve Guide

Unit: mm (in)

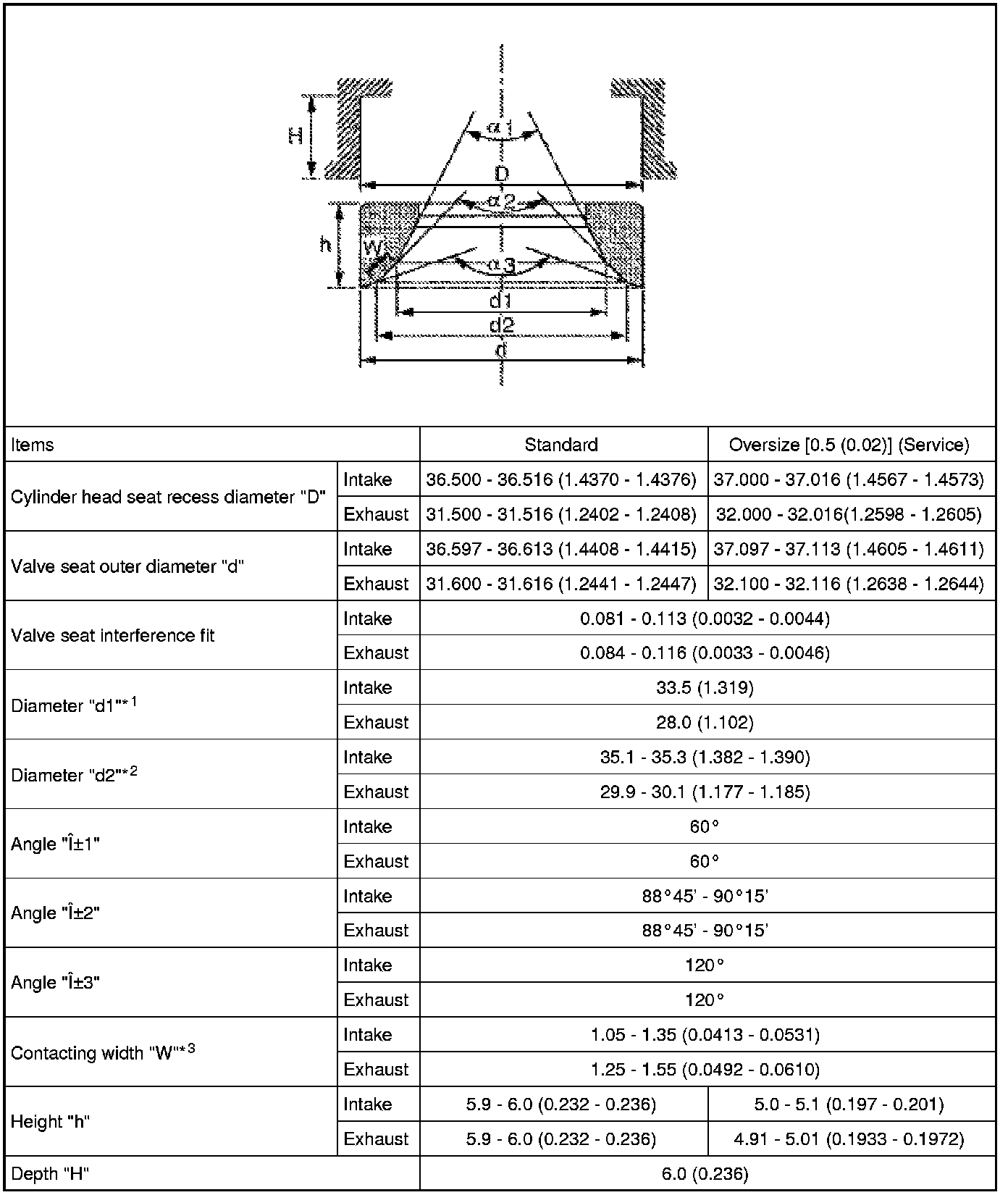

Valve Seat

Unit: mm (in)






*1: Diameter made by intersection point of conic angles α1 and α2

*2: Diameter made by intersection point of conic angles α2 and α3

*3: Machining data

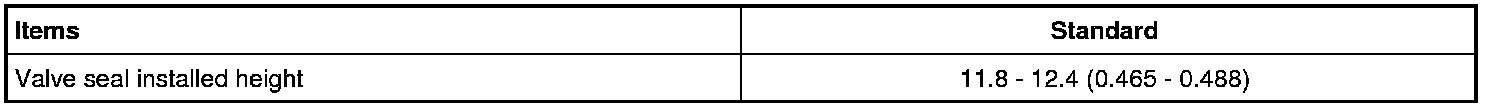

Valve Seal

Unit: mm (in)

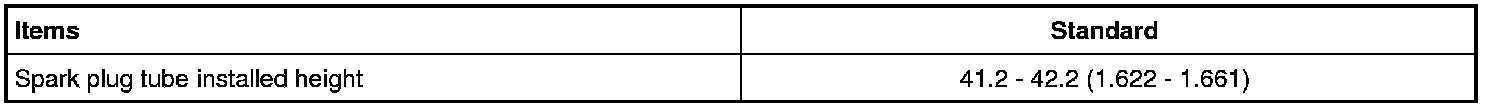

Spark Plug Tube

Unit: mm (in)

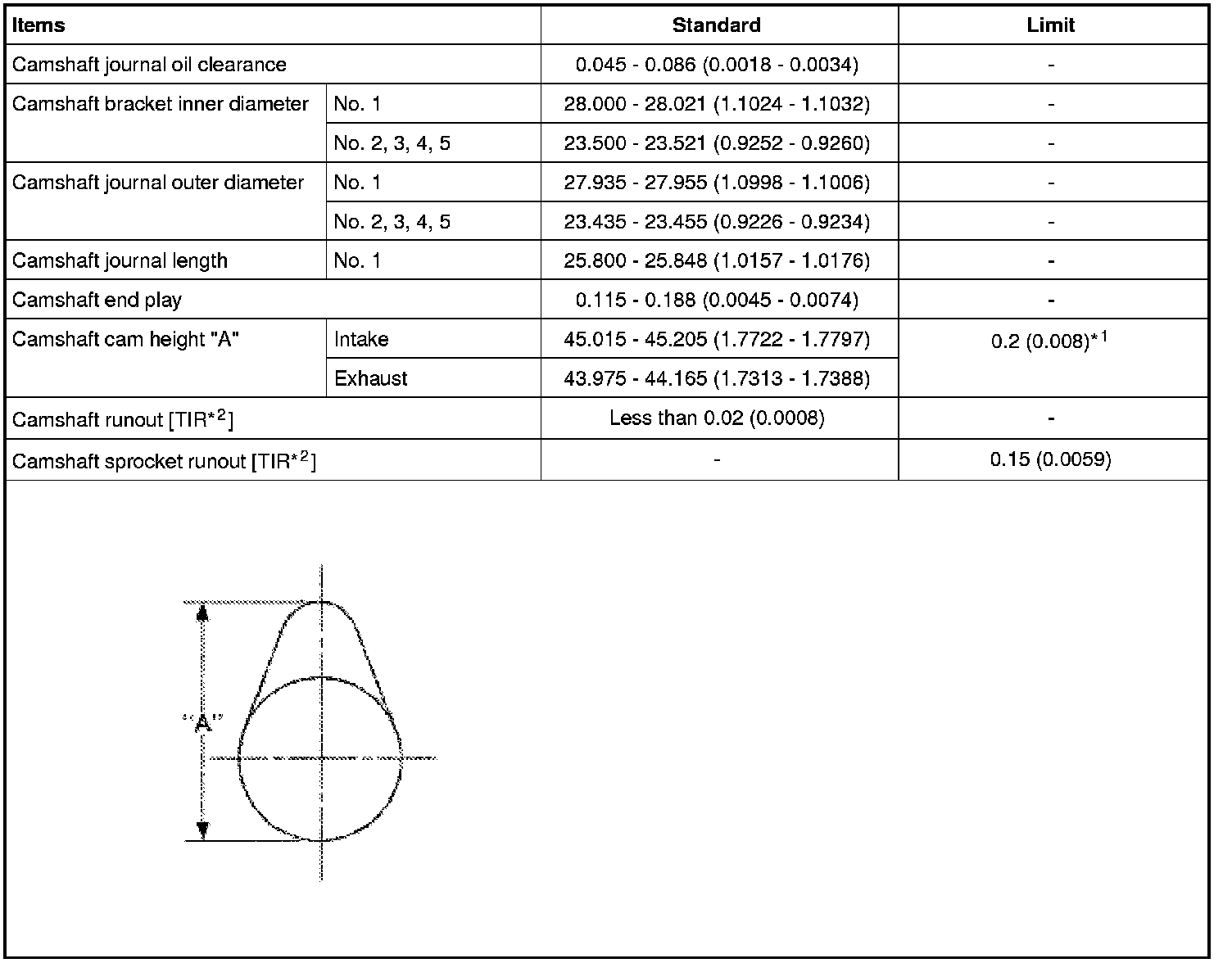

Camshaft and Camshaft Bearing

Unit: mm (in)






*1: Cam wear limit

*2: Total indicator reading

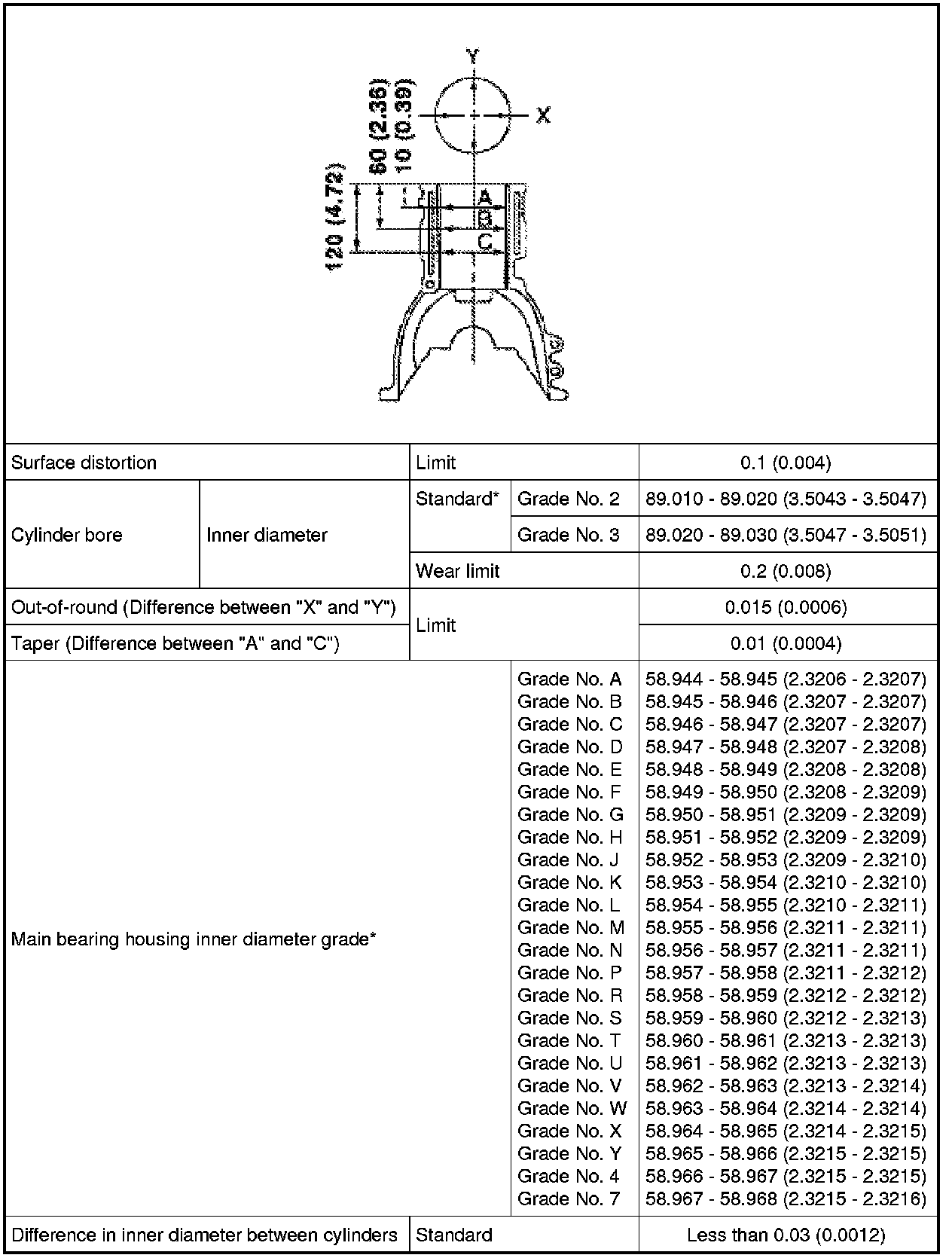

Cylinder Block

Unit: mm (in)






*:Always check with the Parts Department for the latest parts information.

Piston, Piston Ring and Piston Pin

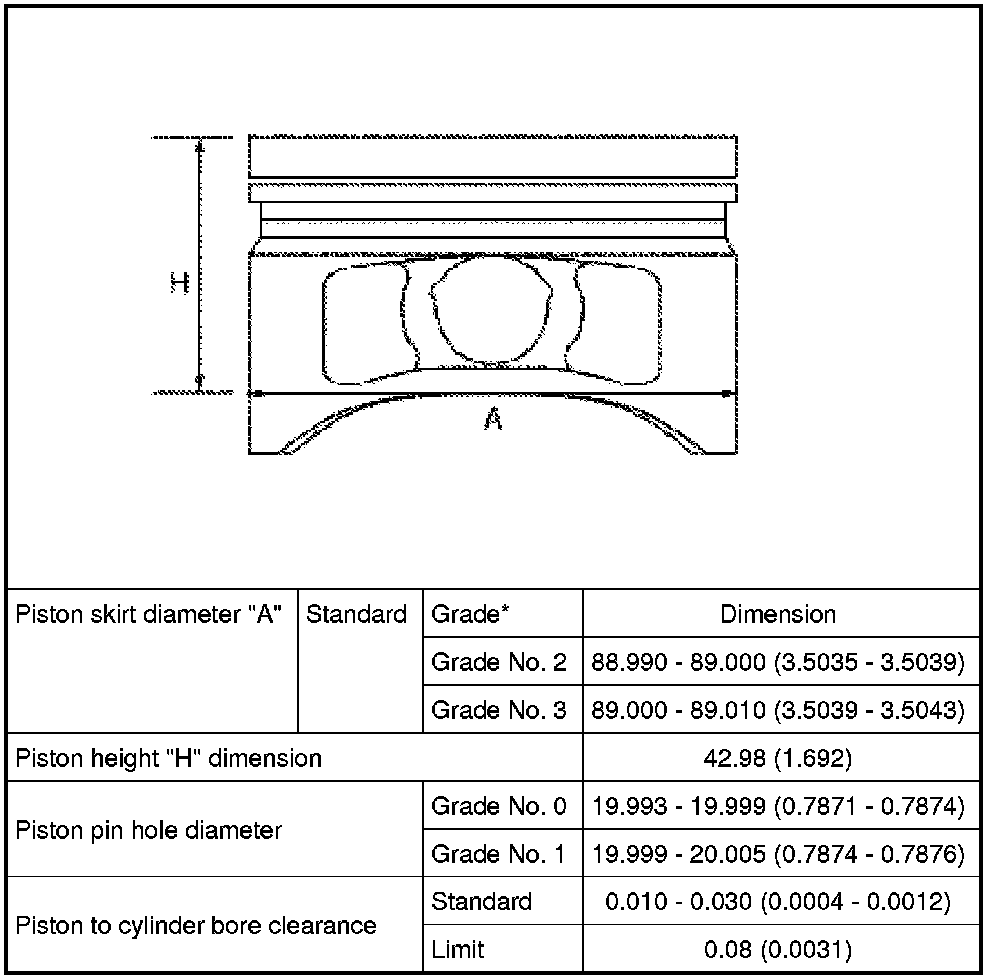

Available Piston

Unit: mm (in)






*: Always check with the Parts Department for the latest parts information

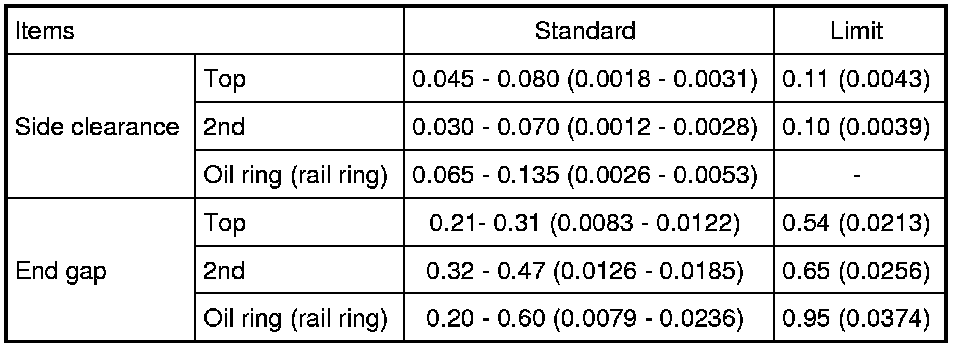

Piston Ring

Unit: mm (in)

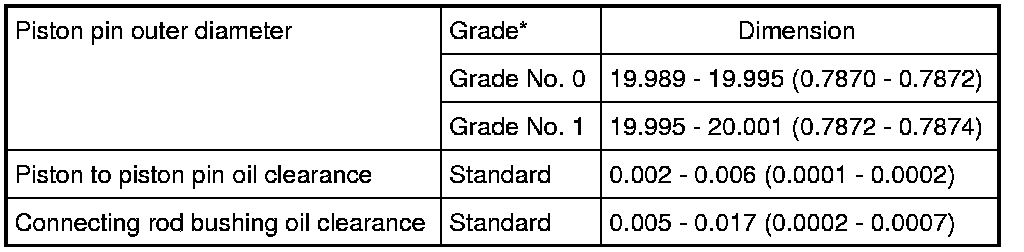

Piston Pin

Unit: mm (in)






*: Always check with the Parts Department for the latest parts information

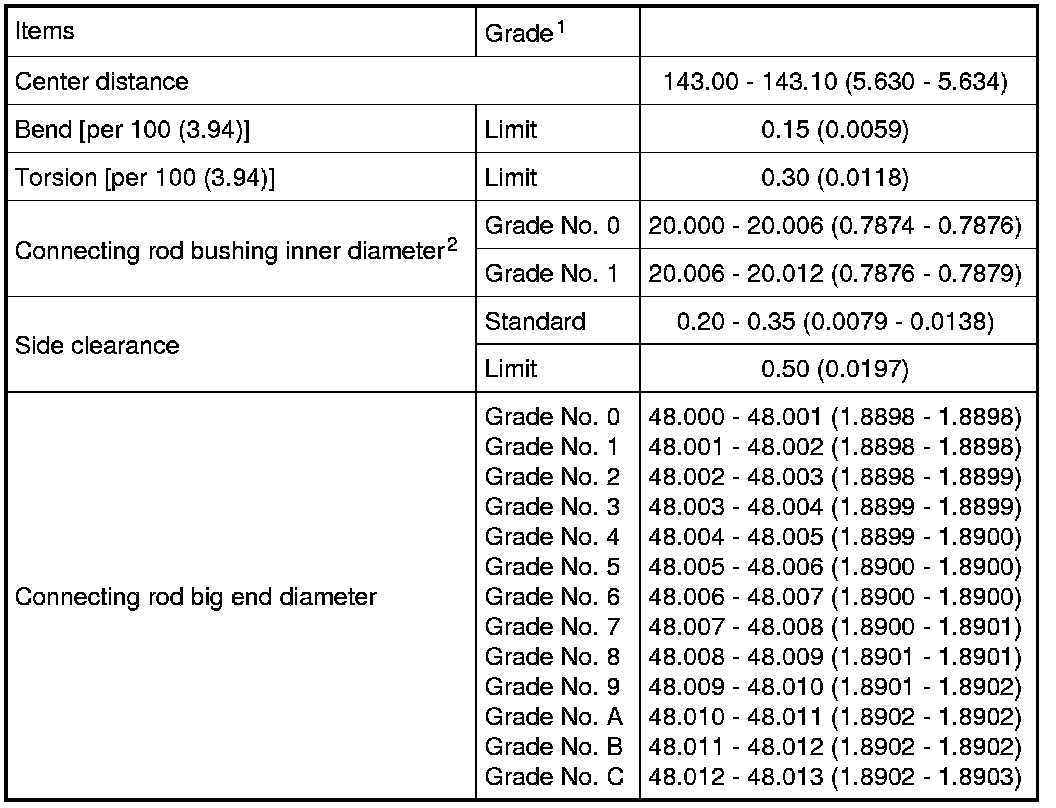

Connecting Rod

Unit: mm (in)






1: Always check with the Parts Department for the latest parts information

2: After installing in connecting rod

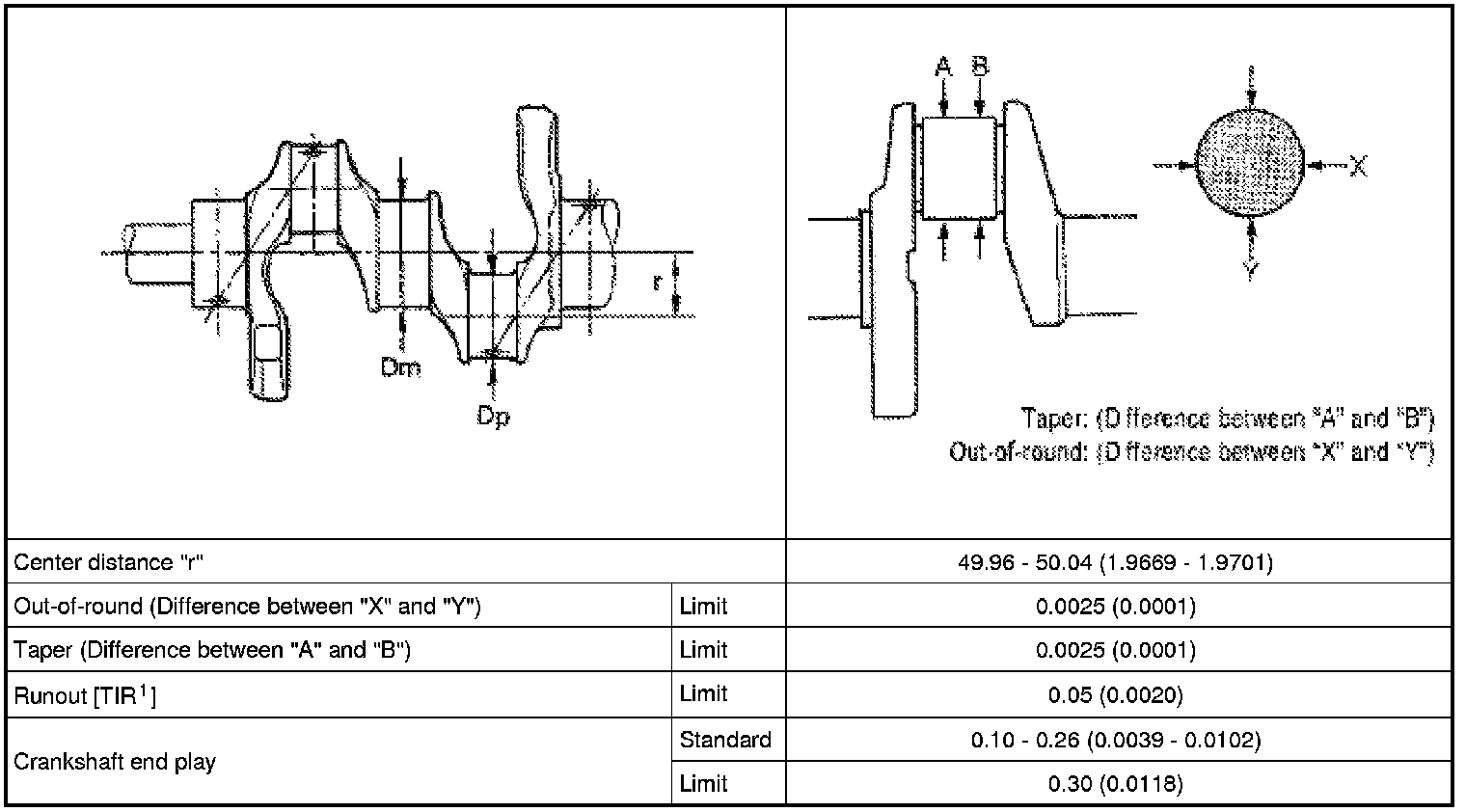

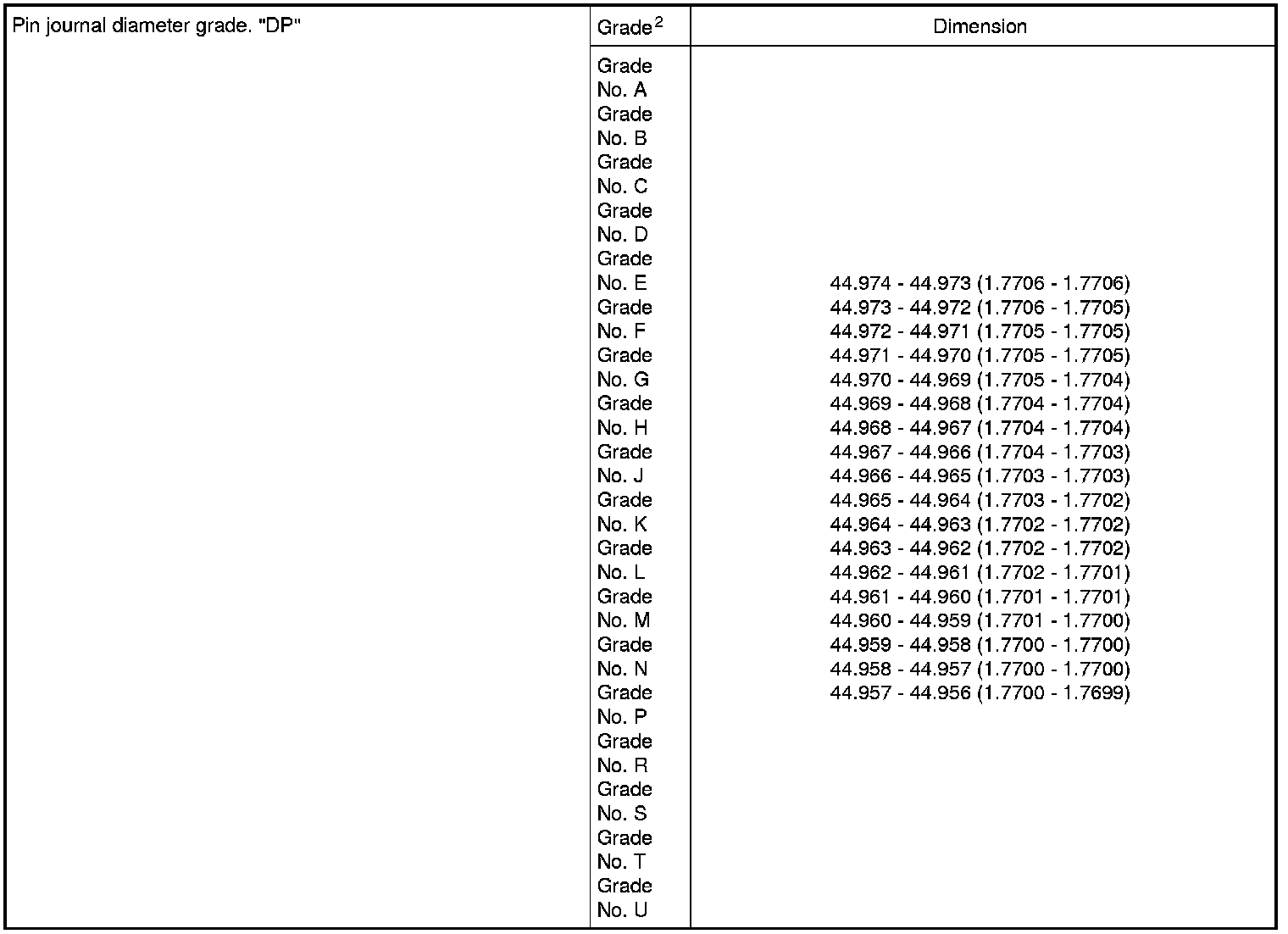

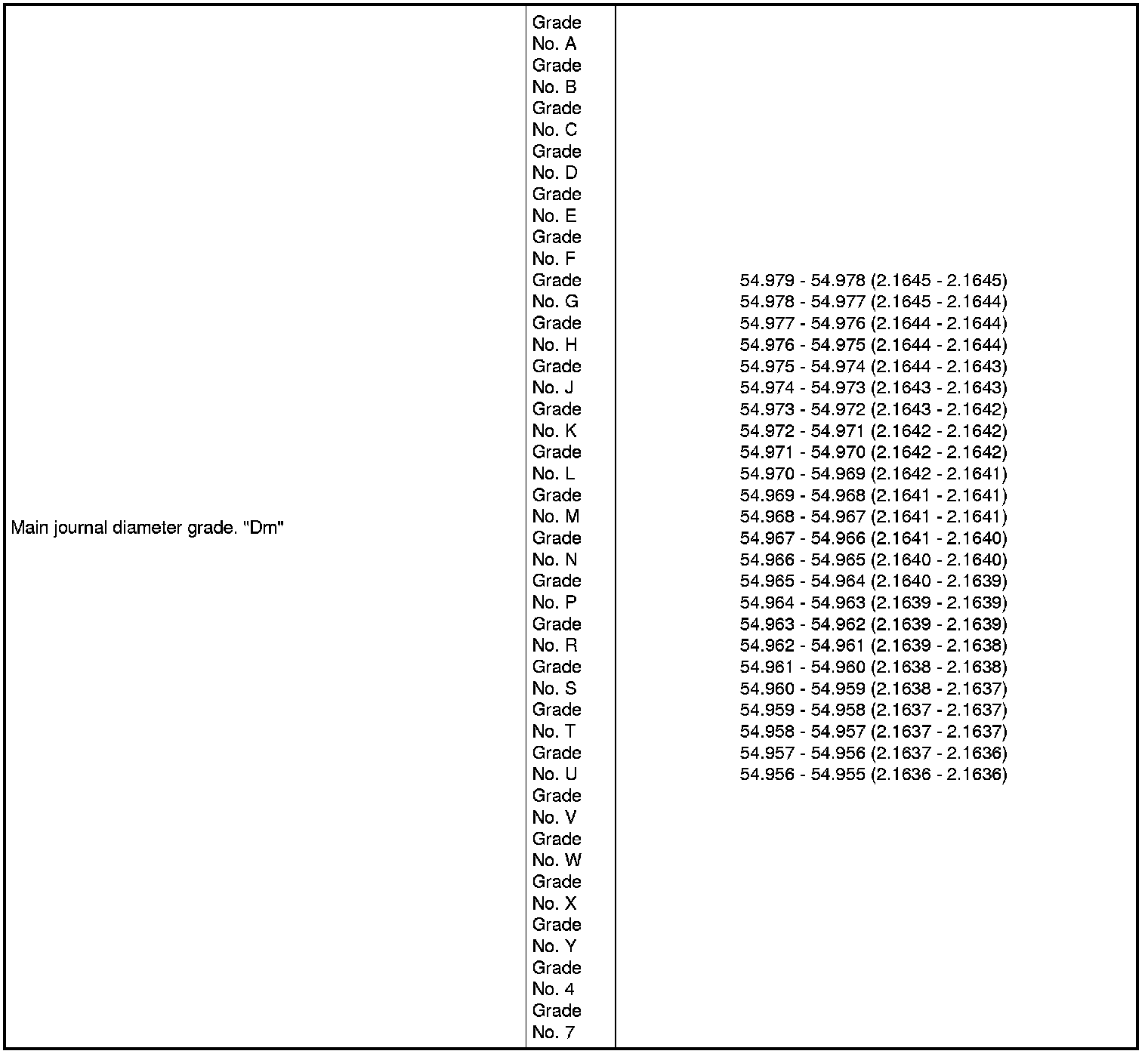

Crankshaft

Unit: mm (in)














1: Total indicator reading

2: Always check with the Parts Department for the latest parts information

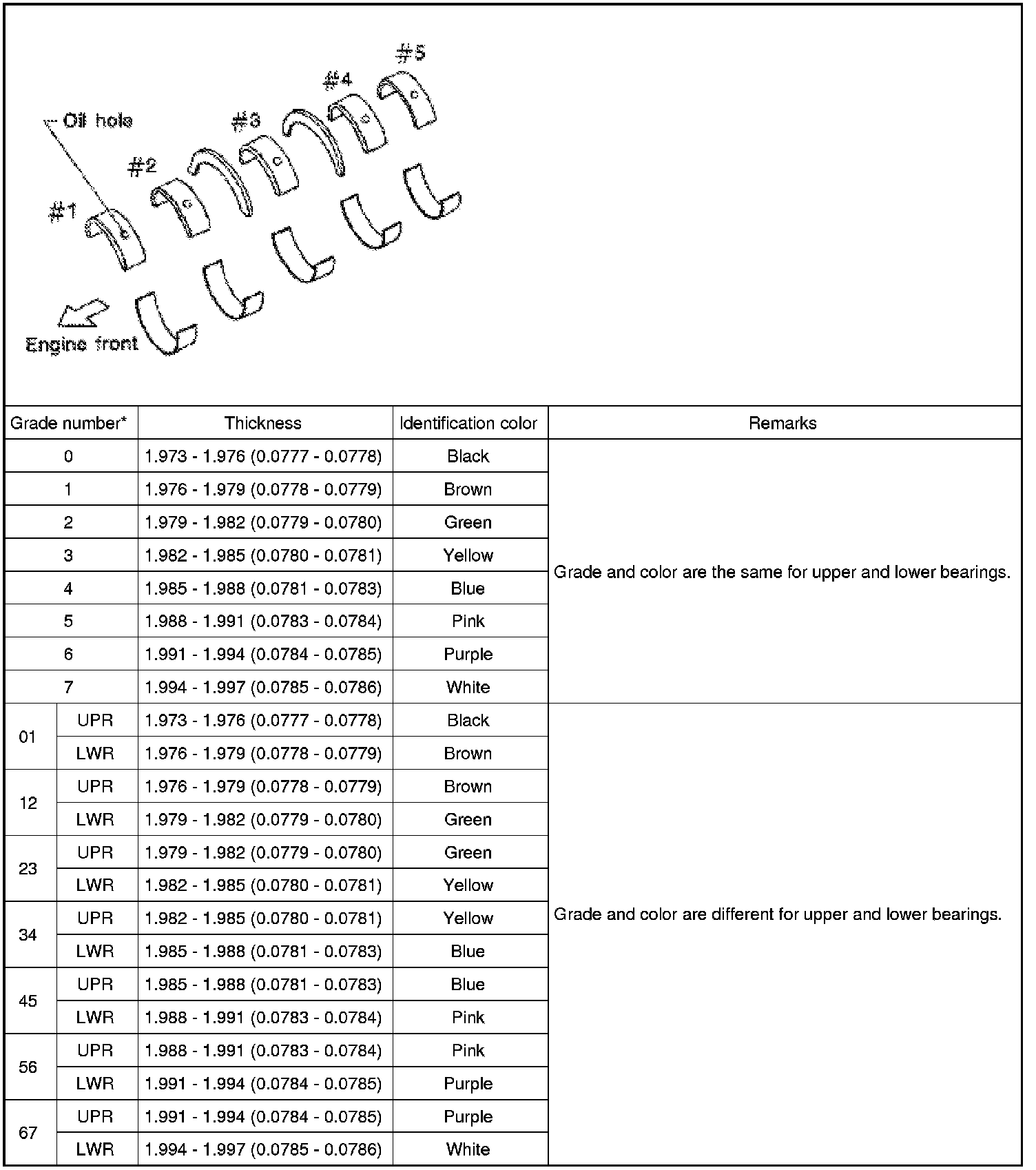

Main Bearing

Unit: mm (in)






*: Always check with the Parts Department for the latest parts information

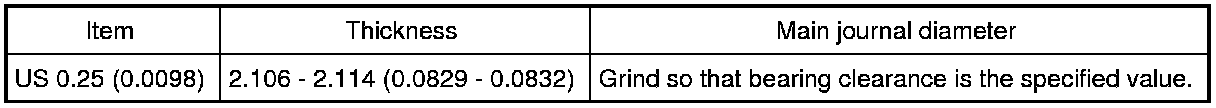

Undersize

Unit: mm (in)






Bearing Oil Clearance

Unit: mm (in)






Connecting Rod Bearing





*: Always check with the Parts Department for the latest parts information

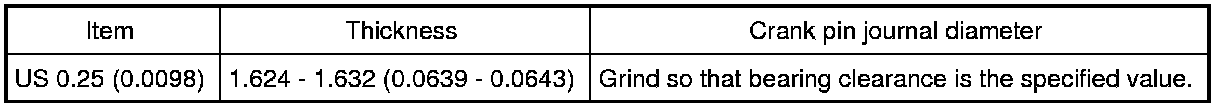

Undersize

Unit: mm (in)

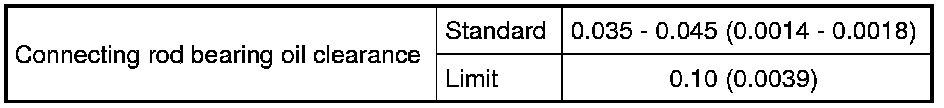

Bearing Oil Clearance

Unit: mm (in)
