Suzuki Truck
>>
2011
>>
Equator 2WD L4-2.5L
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Manual Transmission/Transaxle
>>
Locations
>>
6 M/T
6 M/T
Transmission Assembly: Disassembly and Assembly

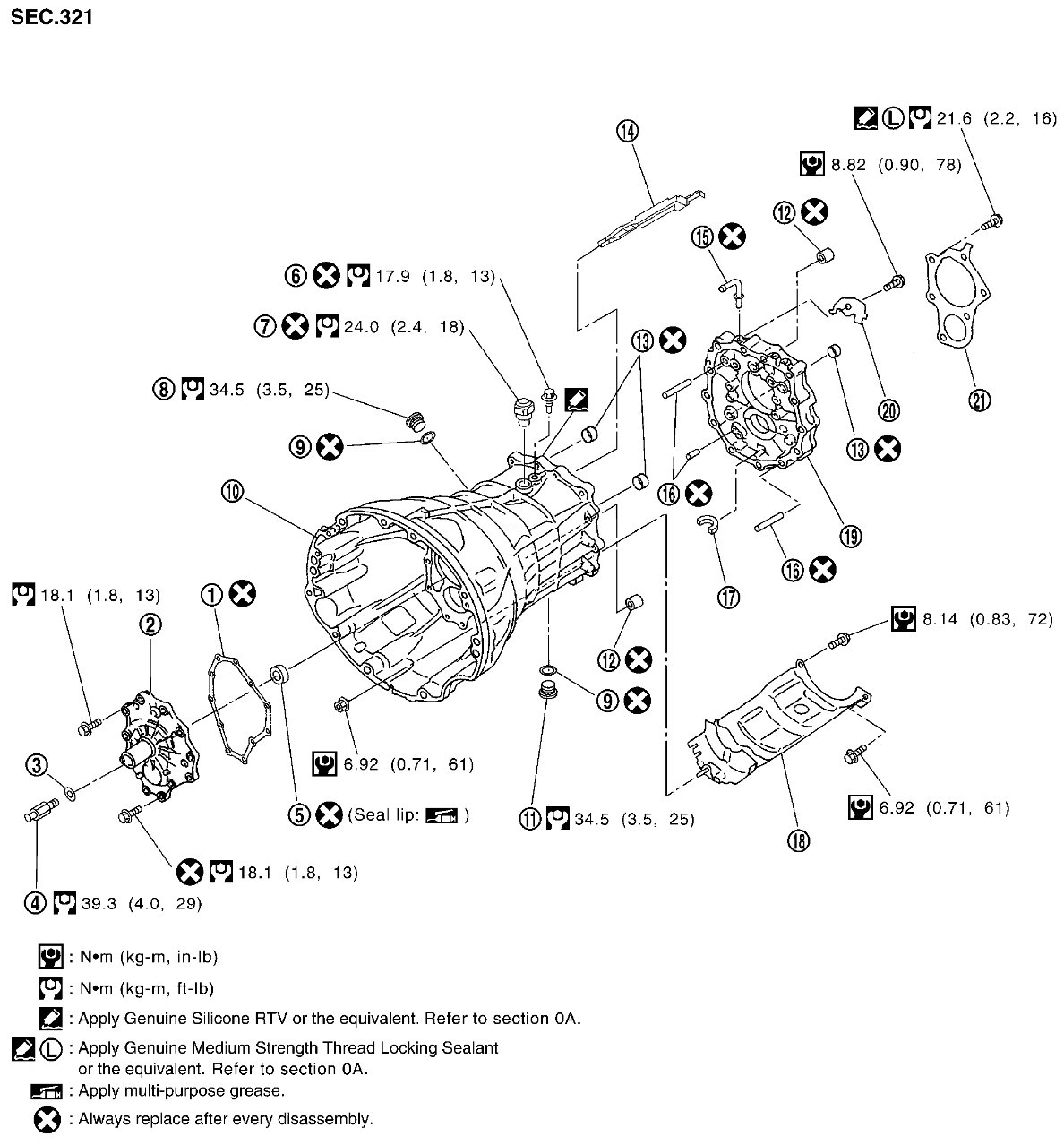

Exploded View

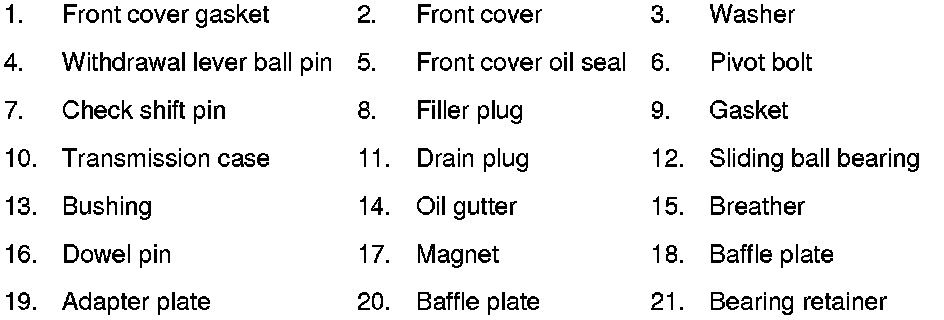

Case Components
