Ignition Coil: Locations

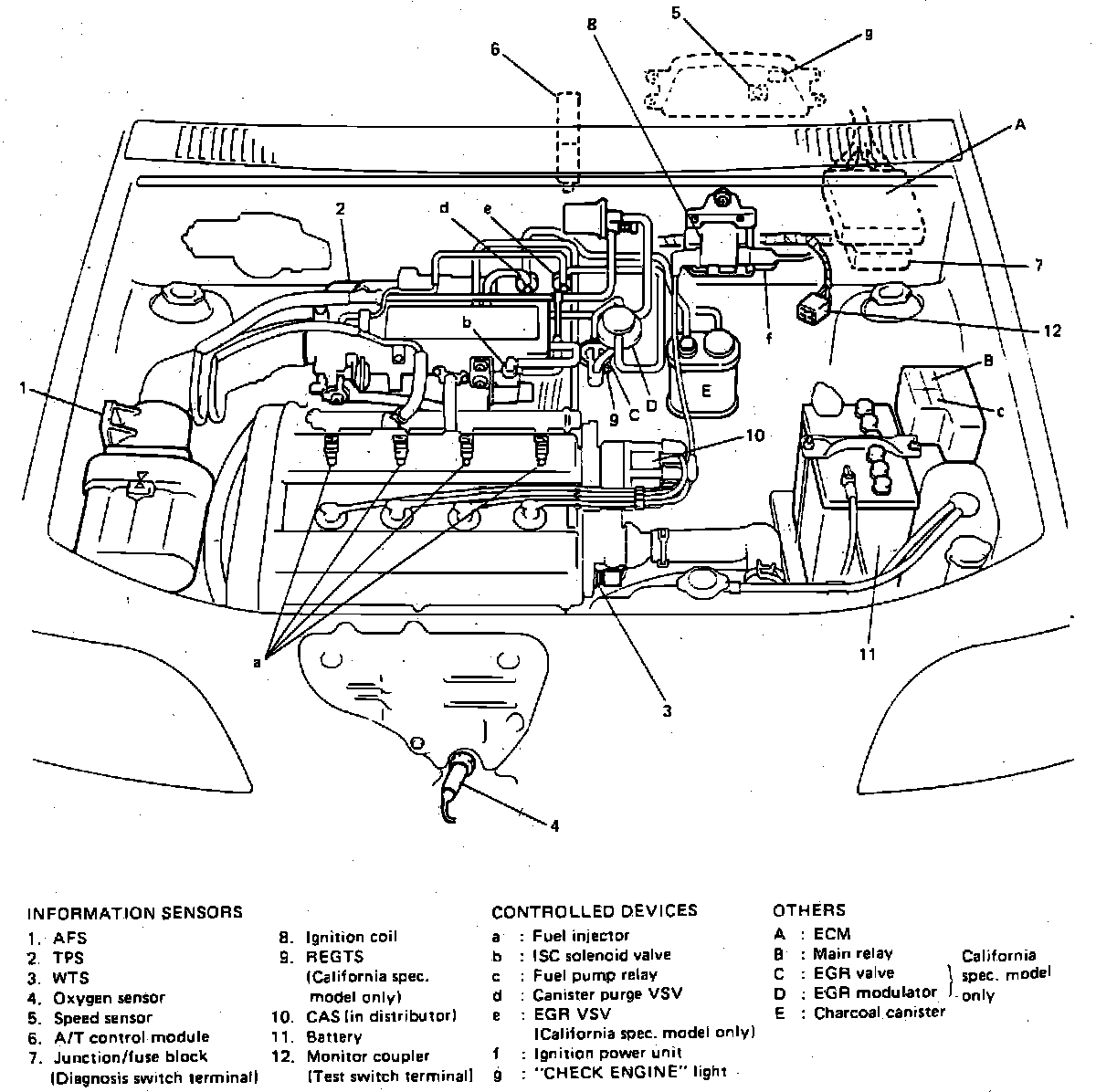

PFI System Component Locations:

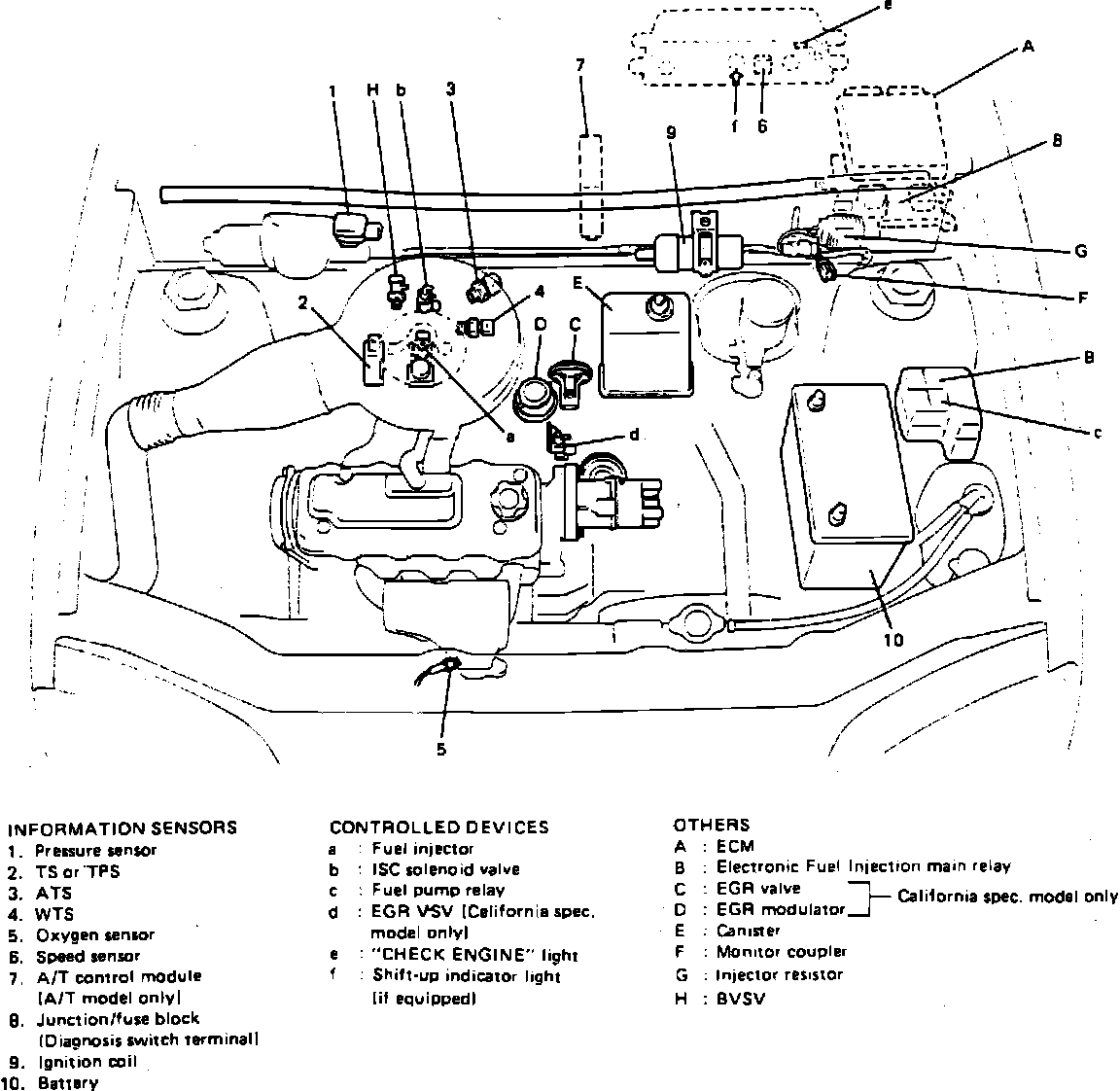

TBI System Component Locations:




LH Side Of Cowl
