Brake Rotor/Disc: Service and Repair

REMOVAL
1. Hoist vehicle and remove wheel.

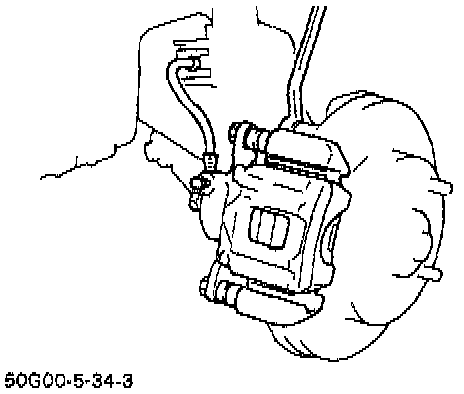

2. Remove caliper assembly by loosening carrier bolts (2 pcs).

CAUTION: During removal, be careful not to damage brake flexible hose and not to depress brake pedal.

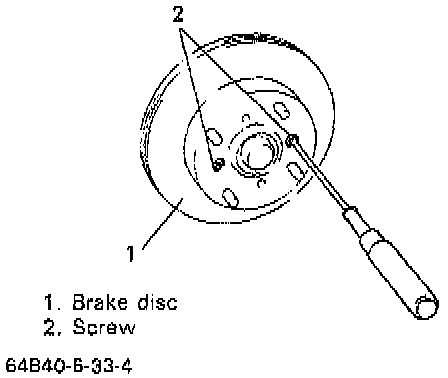

3. Remove brake disc screws (2 pcs).

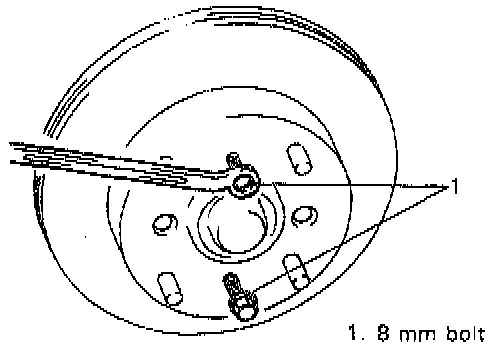

4. Pull brake disc off by using 8 mm bolts (2 pcs).

INSTALLATION
1. Install disc to wheel hub.
2. Install caliper assembly to steering knuckle.

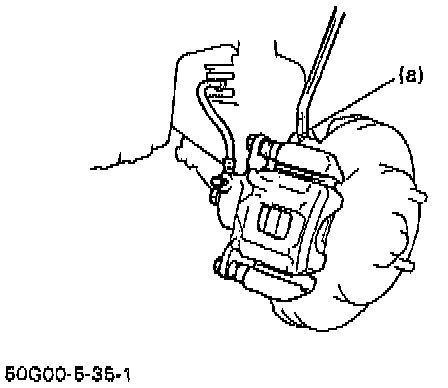

3. Torque caliper carrier bolts (a): 40 - 60 Nm (29.0 - 43.0 ft. lbs.).

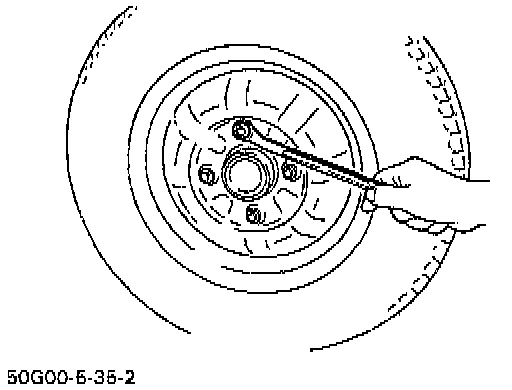

4. Torque front wheel nuts to specification.
5. Upon completion of installation, perform brake test. Testing and Inspection
