Fluid Line/Hose: Service and Repair

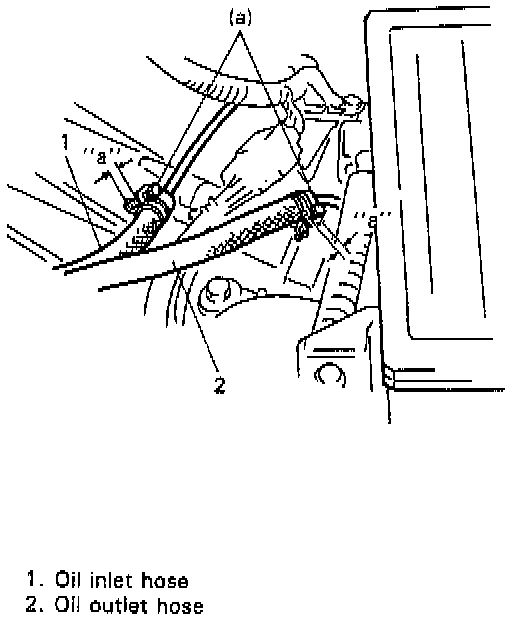

OIL COOLER HOSES





Rubber hoses for oil cooler should be replaced every four years or 75,000 km (45,000 miles), when replacing it, be sure to note the following.

- Replace clamps at the same time.
- Tighten clamps to specified torque.
- Check for fluid leakage after replacing.
- Confirm fluid level at normal operating temperature.
Tightening Torque:
(a): 1.5 Nm (13 inch lbs.).
Remaining thread for specified torque:
"a": 7 - 5 mm (0.27 - 0.19 inch) as rough standard.
