Coolant Line/Hose: Service and Repair

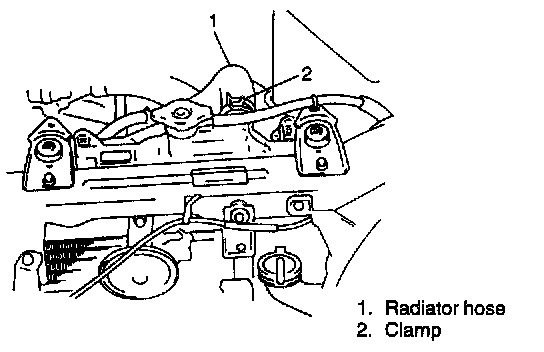

Cooling Water Pipes Or Hoses

REMOVAL
1. Drain cooling system.





2. To remove these pipes or hoses, loosen screw on each pipe or hose clip and pull hose end off.

INSTALLATION
Install removed parts in reverse order of removal procedure.
^ Tighten each clamp bolt securely.
^ Refill cooling system with proper coolant.
