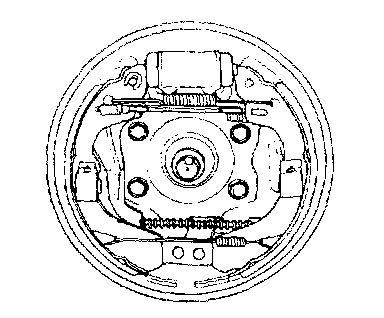

Brake Shoe: Service and Repair

Removal
1. Remove brake drum.

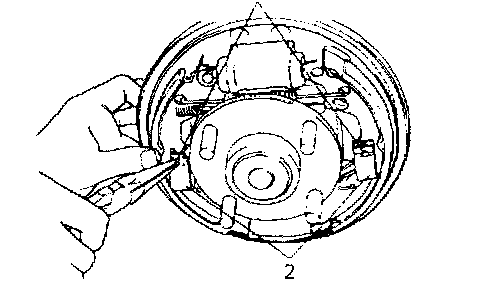

2. Remove shoe hold down springs (2) by turning shoe hold down pins (1).
3. Remove return springs, brake shoes and strut.

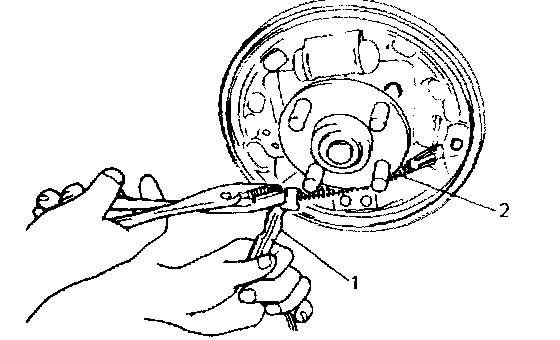

4. Disconnect parking brake shoe lever (1) from parking brake cable (2).

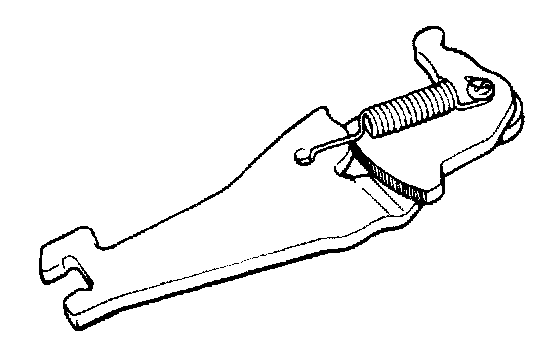

5. Remove parking brake shoe lever (2) from shoe rim.

Installation





1. Assemble parts as shown in reverse order of removal.

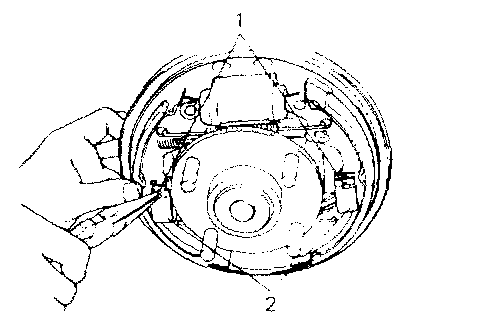

2. Install shoe hold down springs (2) by pushing them down in place and turning hold down pins (1).
3. For procedure hereafter, refer to Steps 1) to 7) of "Installation" in "Rear Brake Drum Removal and Installation:

Inspection

Brake Shoe and Lining
For details, refer to "Rear Brake Drum Inspection:

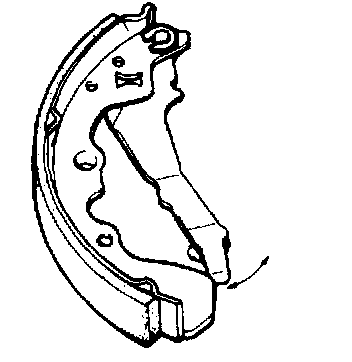

Parking Shoe Lever





Inspect brake shoe lever for free movement against brake shoe web. If defective, correct or replace.

Brake Strut





Inspect ratchet of strut for wear or damage.

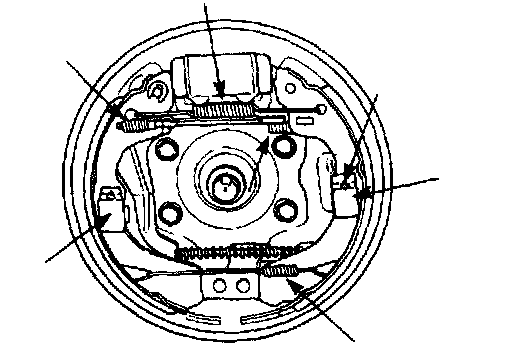

Springs





Inspect for damage or weakening. Inspect each part with arrow for rust. If found defective, replace.
