Rear

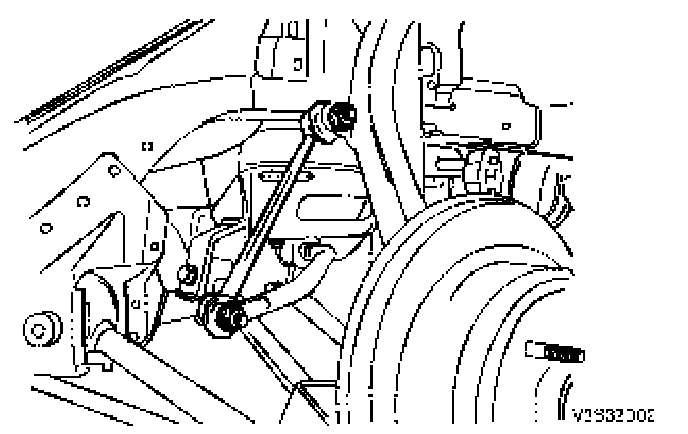

Rear Stabilizer Link

Removal
1. Raise and suitably support the vehicle.
2. Remove the stabilizer shaft-to-stabilizer link nut and the shaft-to-strut assembly nut.





3. Remove the rear stabilizer link.


Installation





1. Install the rear stabilizer link with the stabilizer shaft-to-stabilizer link nut and the shaft-to-strut assembly nut.
Tighten: Tighten the rear stabilizer link with the stabilizer shaft-to-stabilizer link nut and the shaft-to-strut assembly nut to 50 Nm (37 ft. lbs.).
