Rear End Door Harness (Hatchback Model)

Rear End Door Harness (Hatchback Model)

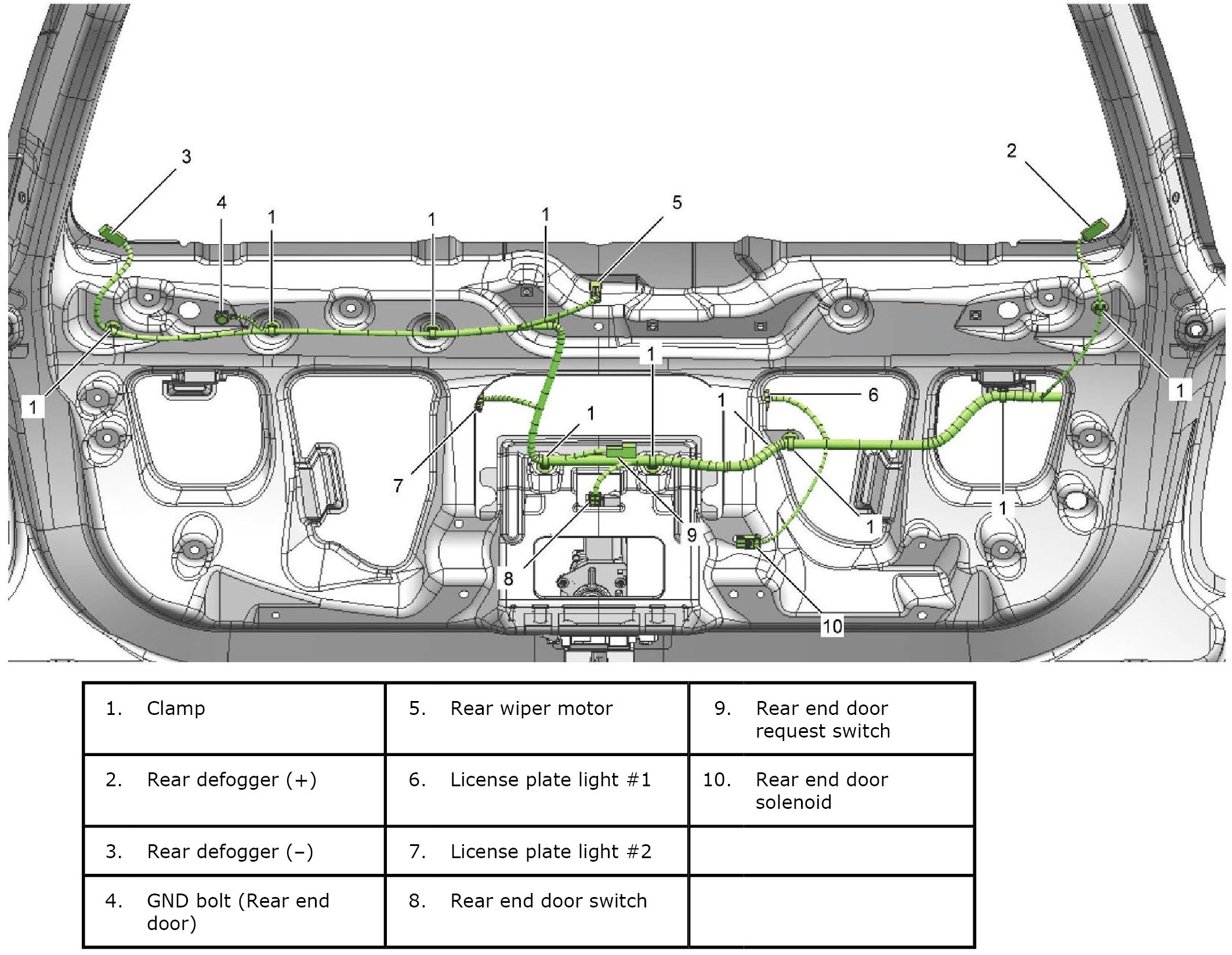

Rear End Door Harness (Hatchback Model):
