Home >> Toyota Truck >> 1987 >> Pickup 2WD L4-144.4 2366cc 2.4L SOHC (22R-E) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Computers and Control Systems >> Engine Control Module

Engine Control Module

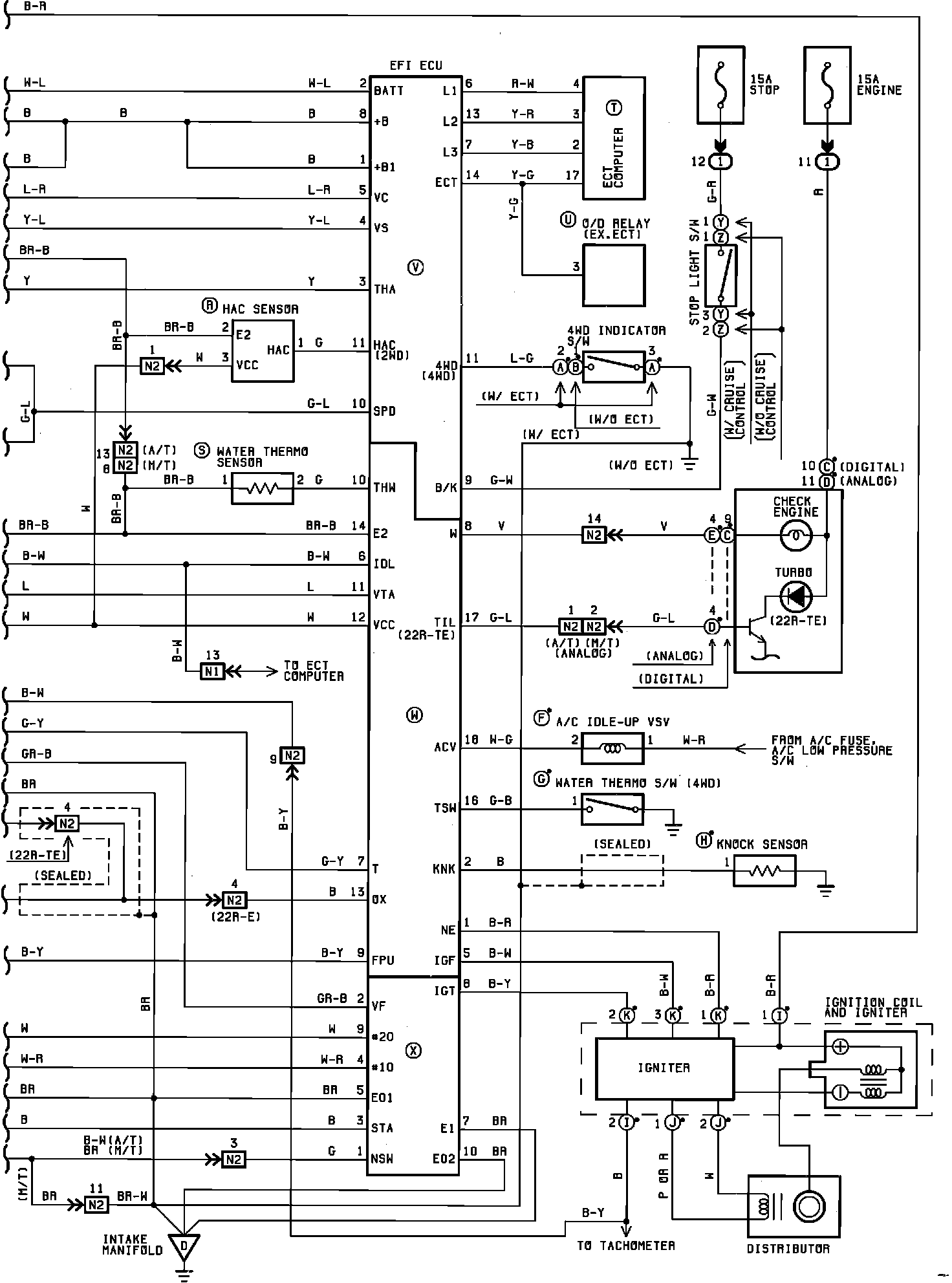

Fig. 239 EFI Wiring Diagram:
