Home
>>
Toyota Truck
>>
1987
>>
Pickup 2WD L4-2366cc 2.4L SOHC Turbo (22R-TE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Coolant Temperature Sensor/Switch (For Computer)
>>
Testing and Inspection
>>
Circuit Test

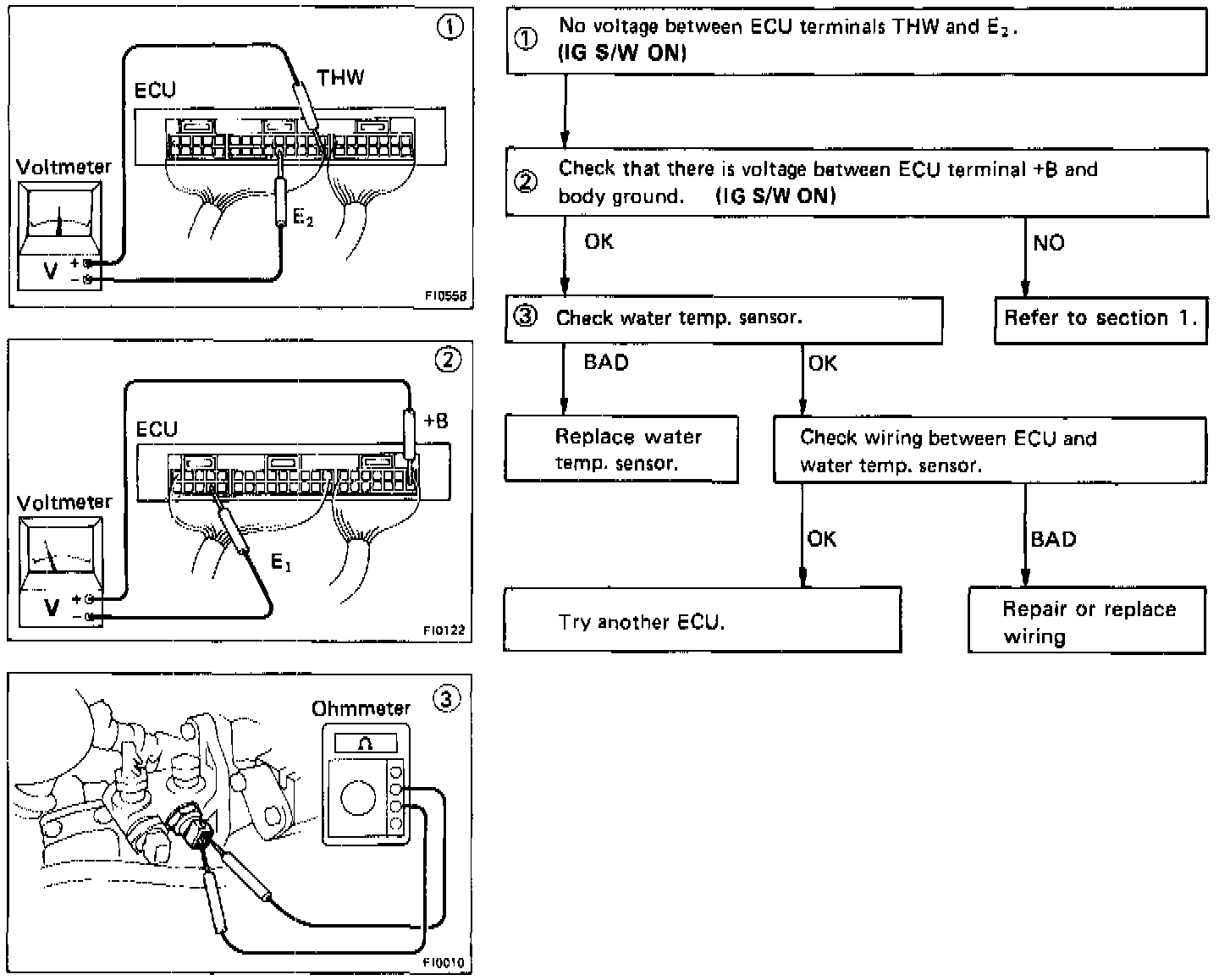

Circuit Test
No. 10

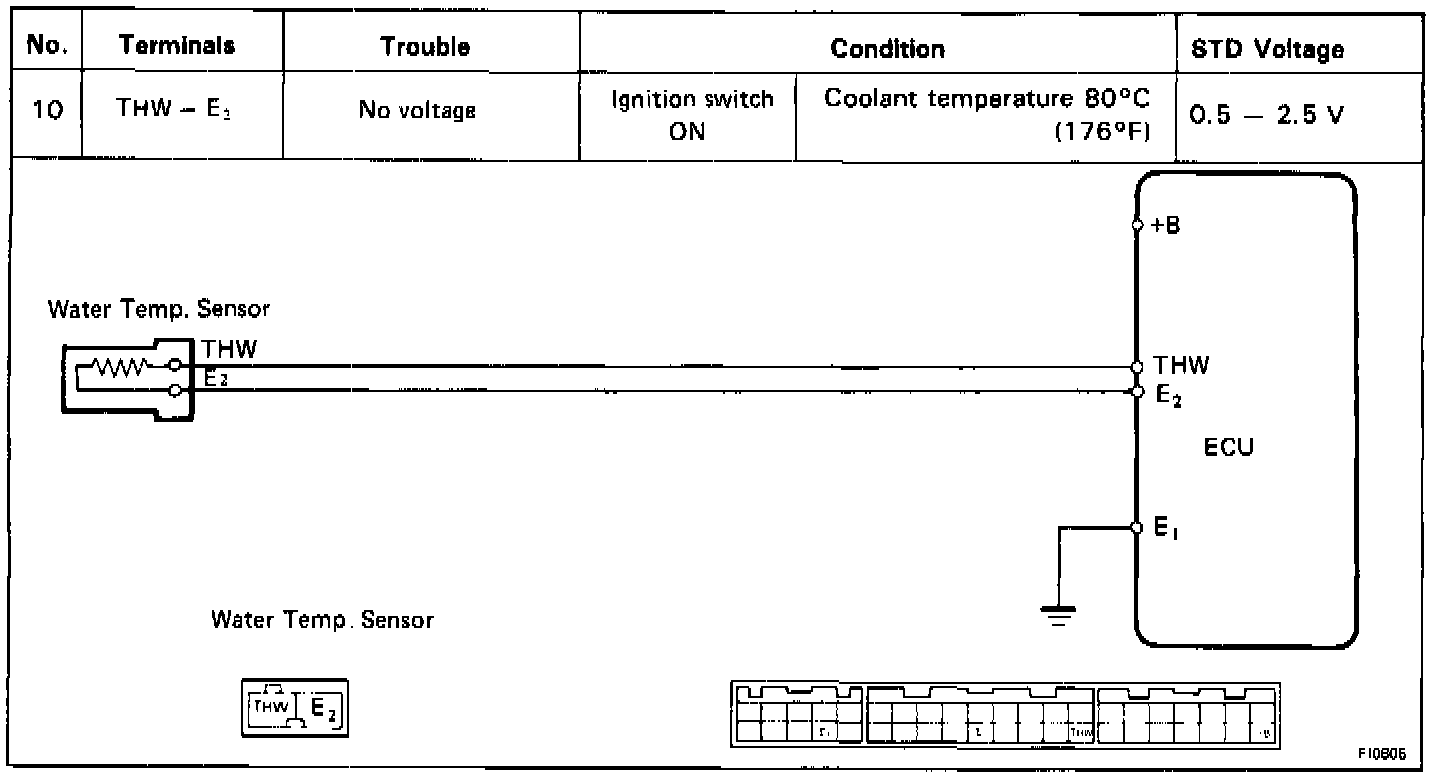

Test No. 10 Summary:
THW - E2:
