Engine Control Module: Locations

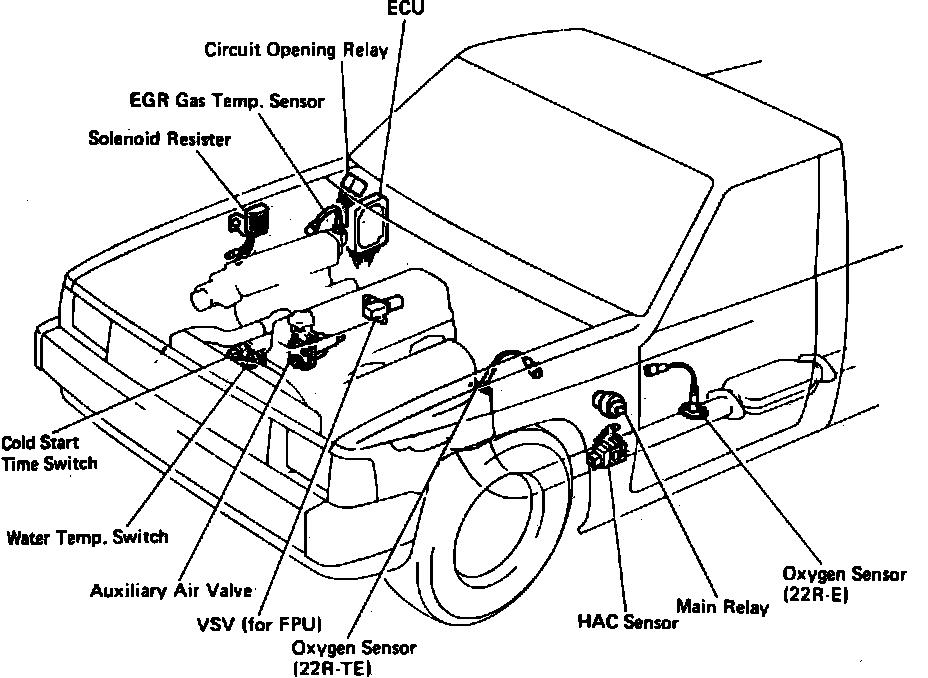

EFI System Components.:




Behind Upper RH Side Kick Panel

Applicable to: 1988 Pickup & 4Runner
