Home
>>
Toyota Truck
>>
1992
>>
Pickup 4WD V6-180.5 2959cc 3.0L SOHC (3VZ-E)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Relays and Modules - Powertrain Management
>>
Relays and Modules - Computers and Control Systems
>>
Engine Control Module
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
>>
Control Module Terminal ID
Control Module Terminal ID

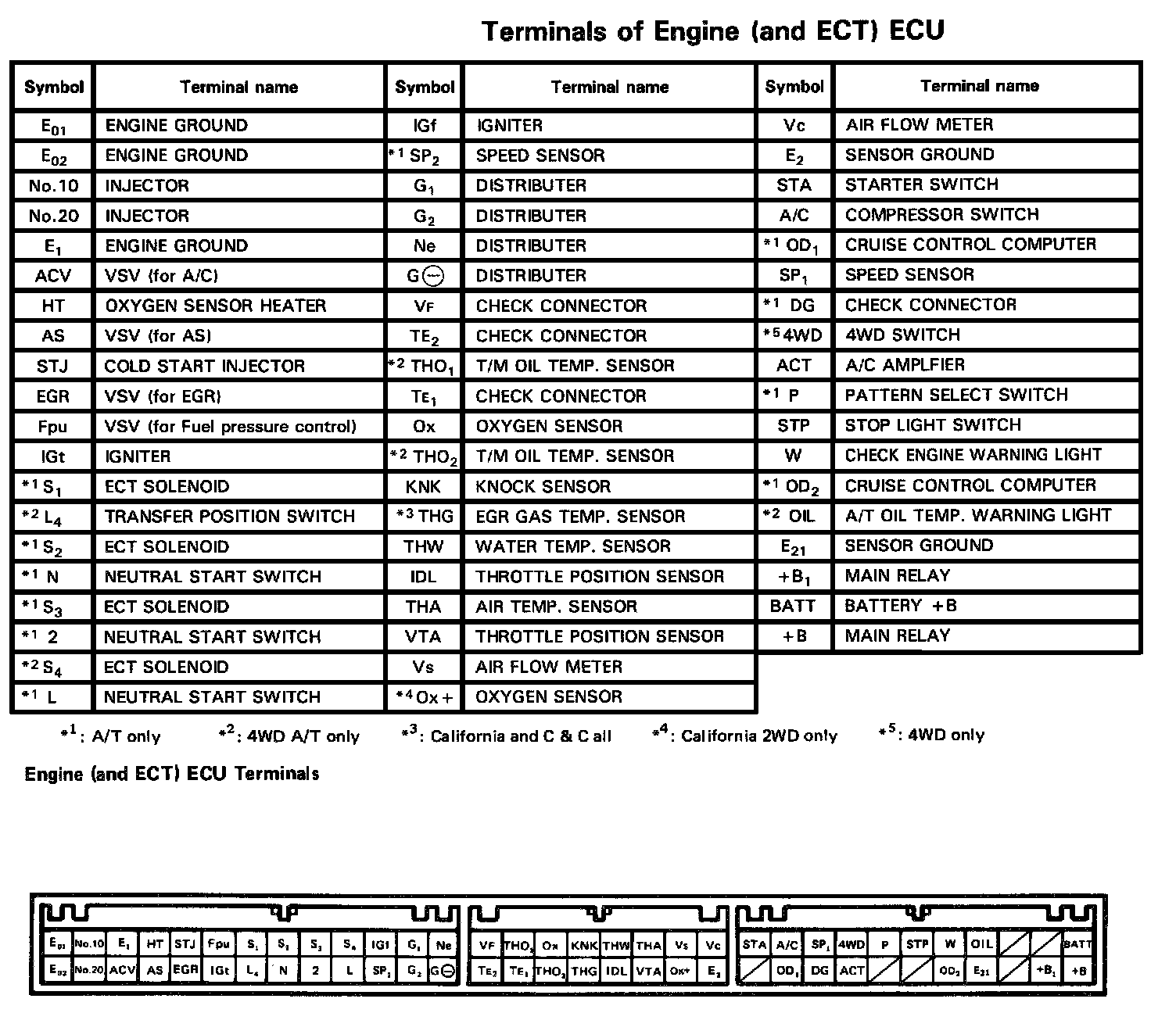

Terminals Of Engine And ECT ECU:
