Air Flow Meter/Sensor: Service and Repair

MASS AIR FLOW (MAF) METER REMOVAL AND INSTALLATION

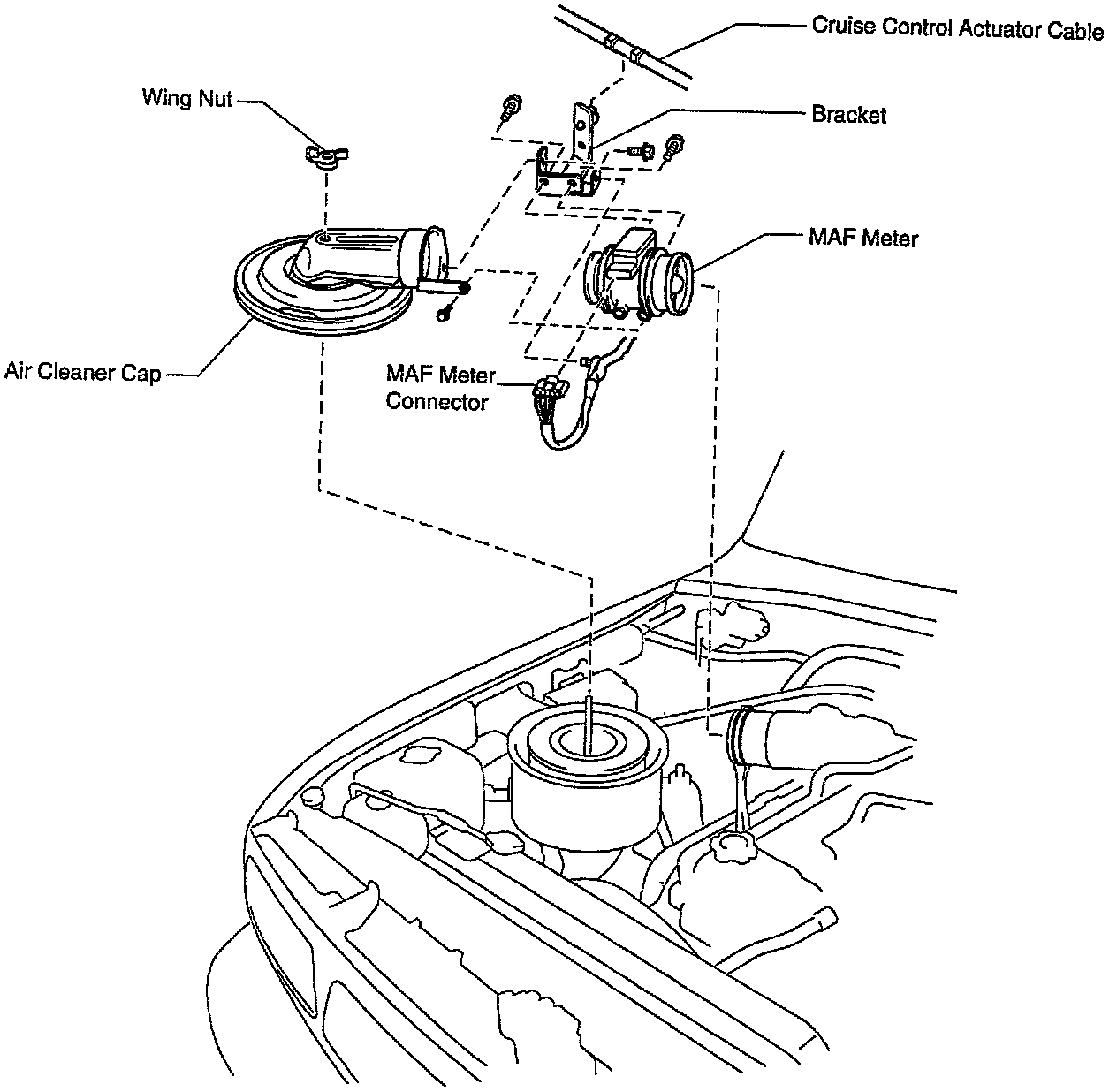

COMPONENTS FOR REMOVAL AND INSTALLATION

MAF METER REMOVAL

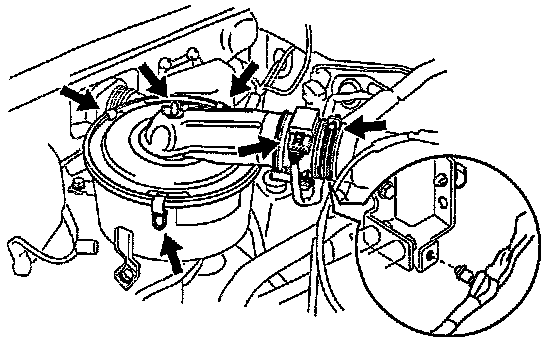

1. REMOVE AIR CLEANER CAP AND MAF METER
- Disconnect the MAF meter connector and wire clamp.
- Disconnect the cruise control actuator cable.
- Loosen the air cleaner hose clamp.
- Disconnect the 3 clips, and remove the wing nut, air cleaner cap and MAF meter.

2. REMOVE MAP METER





- Remove the 4 bolts, bracket and MAF meter.

Torque: 6.9 N.m (70 kgf.cm, 61 in.lbf)

MAF METER INSTALLATION

INSTALLATION HINT: Installation is in the reverse order of removal.
