Coolant Temperature Sensor/Switch (For Computer): Testing and Inspection

ECT SENSOR INSPECTION
1. DRAIN ENGINE COOLANT

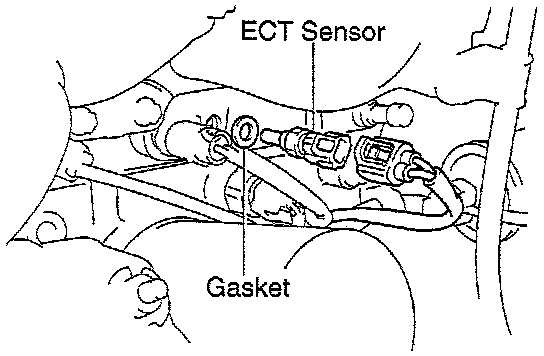

2. REMOVE ECT SENSOR





- Disconnect the ECT sensor connector.
- Using a 19 mm deep socket wrench, remove the ECT sensor and gasket.

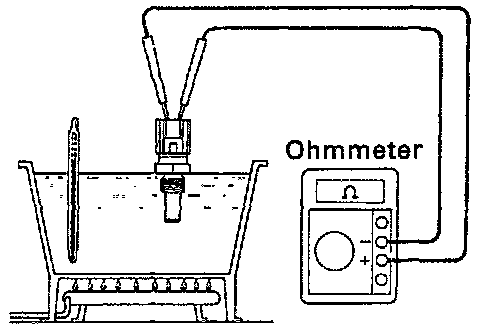

3. INSPECT ECT SENSOR





- Using an ohmmeter, measure the resistance between the terminals.





Resistance: Refer to the chart graph

- If the resistance is not as specified, replace the ECT sensor.
4. REINSTALL ECT SENSOR
- Using a 19 mm deep socket wrench, install the ECT sensor and gasket.

Torque: 24.5 N.m (250 kgf.cm, 17.5 ft.lbf)

- Connect the ECT sensor connector.
5. REFILL ENGINE COOLANT
