Crankshaft Position Sensor: Service and Repair

COMPONENTS FOR REMOVAL AND INSTALLATION





CRANKSHAFT POSITION SENSOR REMOVAL
1. REMOVE ENGINE UNDER COVER
2. REMOVE CRANKSHAFT POSITION SENSOR PROTECTOR
- Remove the 3 bolts and crankshaft position sensor protector.

Torque: 20 N.m (200 kgf.cm, 14 ft.lbf)





3. DISCONNECT CRANKSHAFT POSITION SENSOR BRACKET AND CONNECTOR
4. REMOVE CRANKSHAFT POSITION SENSOR

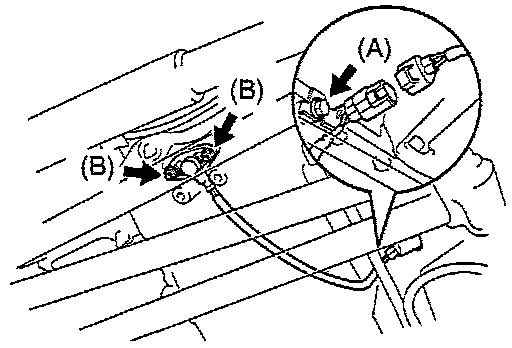

- Remove the bolt, 2 nuts and crankshaft position sensor.

Torque:
Bolt A: 20 N.m (200 kgf.cm, 14 ft.lbf)
Nut B: 9 N.m (90 kgf.cm, 78 in.lbf)

CRANKSHAFT POSITION SENSOR INSTALLATION

INSTALLATION HINT: Installation is in the reverse order of removal.
