Ignition Cable: Testing and Inspection

INSPECT HIGH-TENSION CORD RESISTANCE

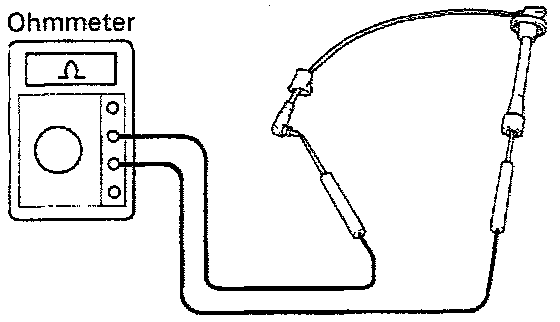

- Using an ohmmeter, measure the resistance.

Maximum resistance: 25 K ohms per cord

- If the resistance is greater than maximum, check the terminals.
- If necessary, replace the high - tension cord.
