Alignment Specifications



ALIGNMENT SPECIFICATIONS

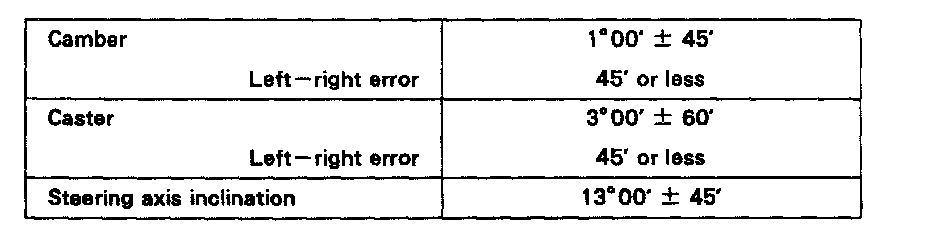

Camber, Caster, Steering Axis Inclination:





Measuring Point Reference:

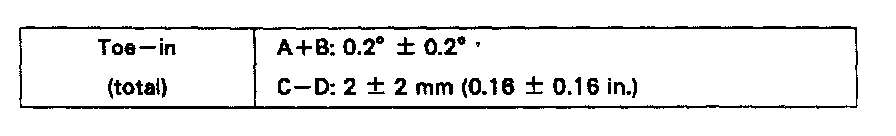

Toe-In:

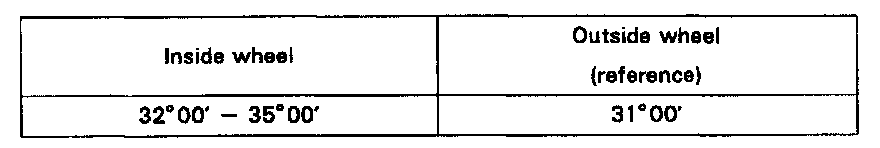

Wheel Angle:
