Toyota Truck
>>
1996
>>
Landcruiser 4WD L6-4.5L (1FZ-FE)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Transfer Case
>>
T/F Technical Data
T/F Technical Data

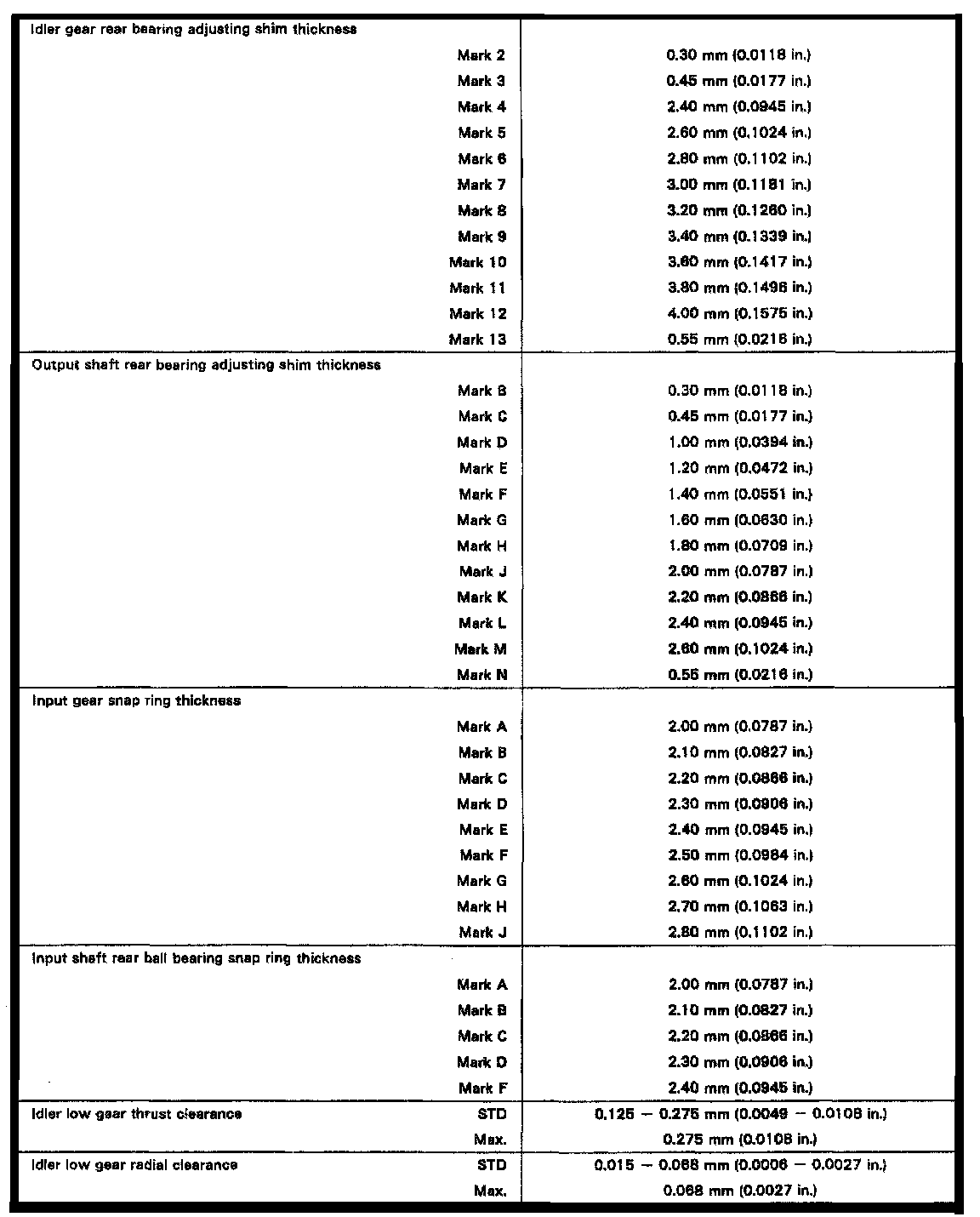

Transfer Case, Input/Output Gear Shim Thickness:

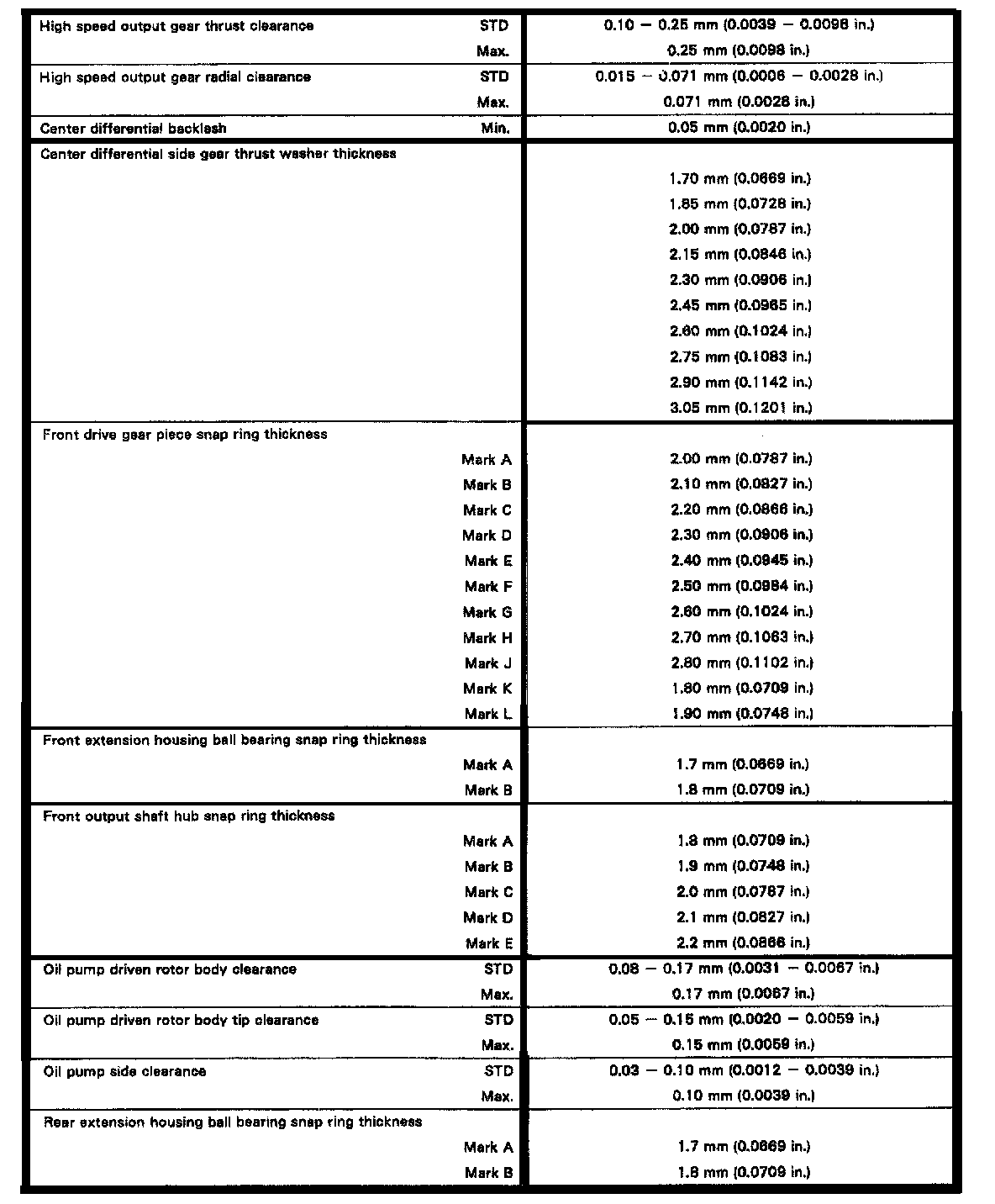

Transfer Case, Clearances/Thickness:

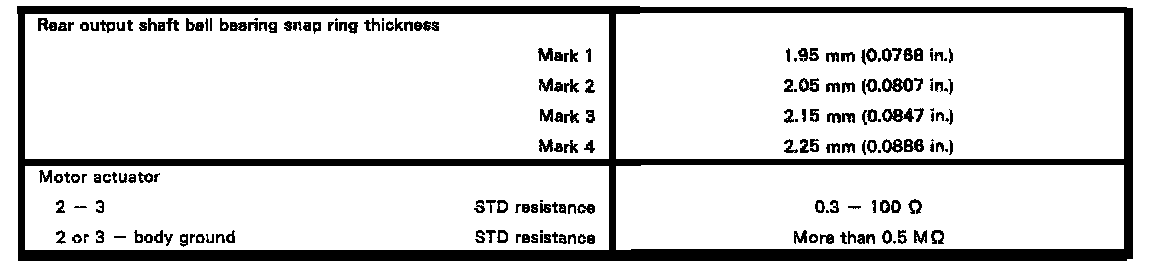

Transfer Case, Rear Output Shaft/Motor Actuator:
