Manual Transmission

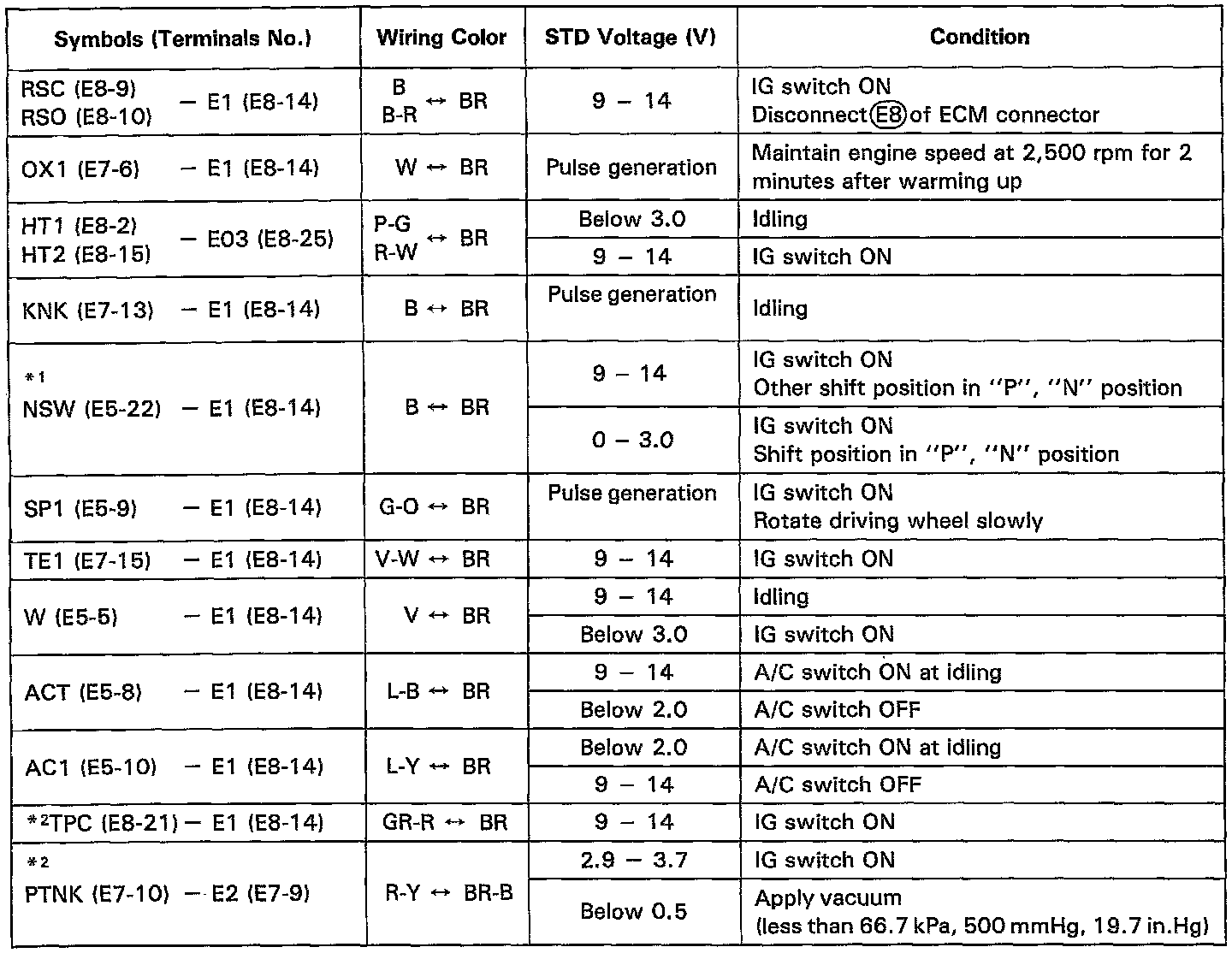

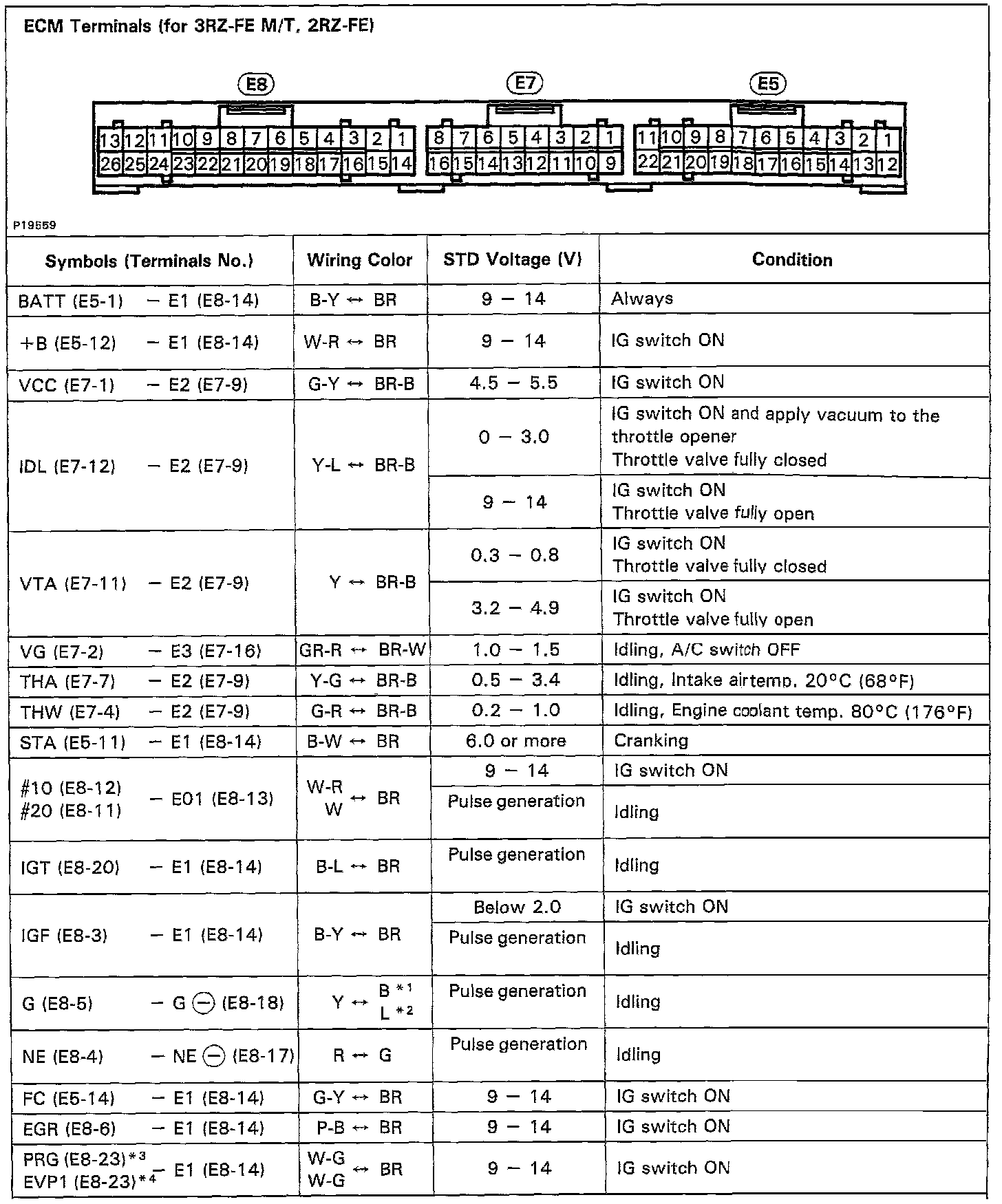

STANDARD VALUE OF ECM TERMINALS
- When measuring the voltage or resistance of the connector part of the ECM, always insert the test probe into the connector from the wire harness side.
