Engine Torque and Service Data

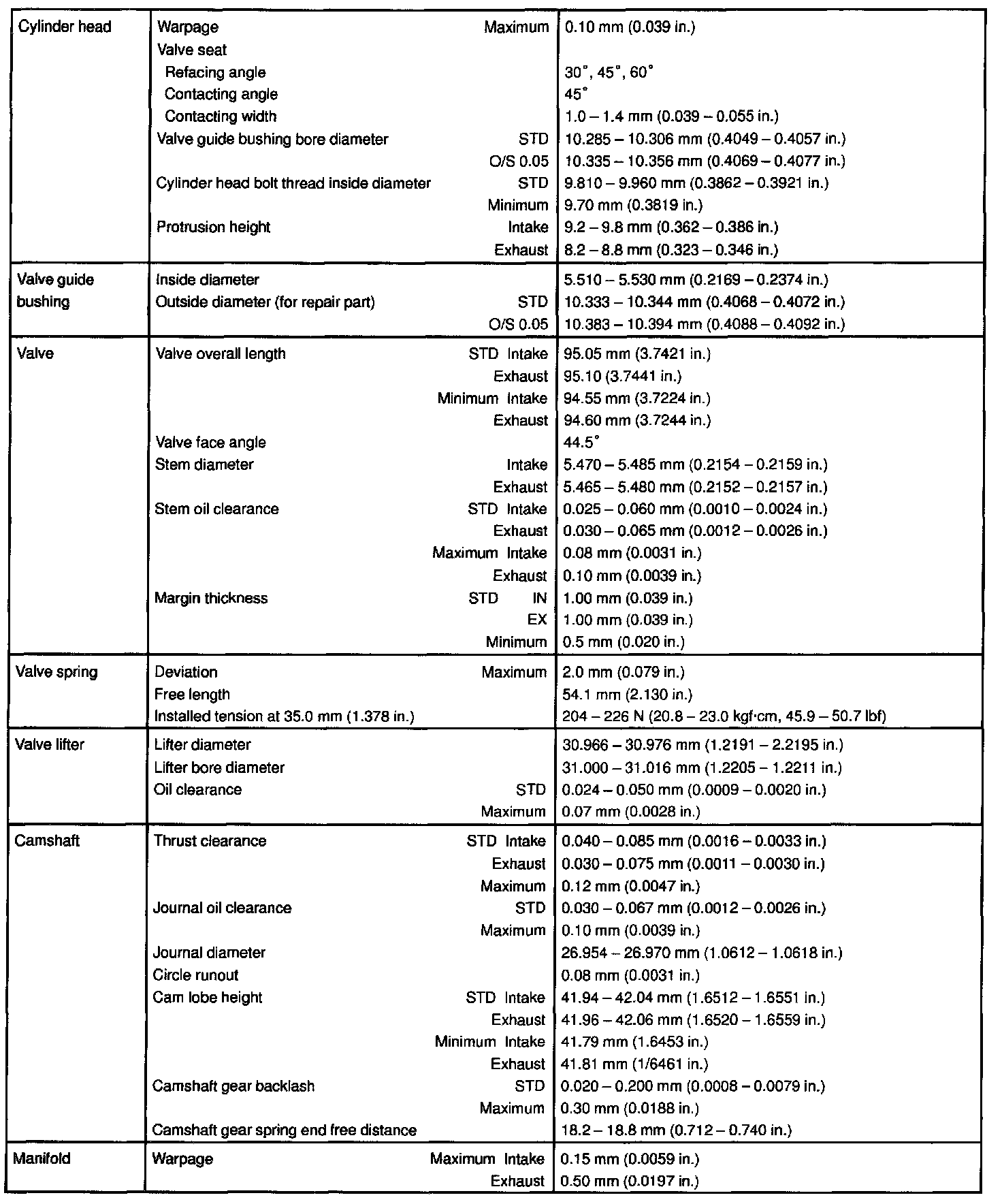

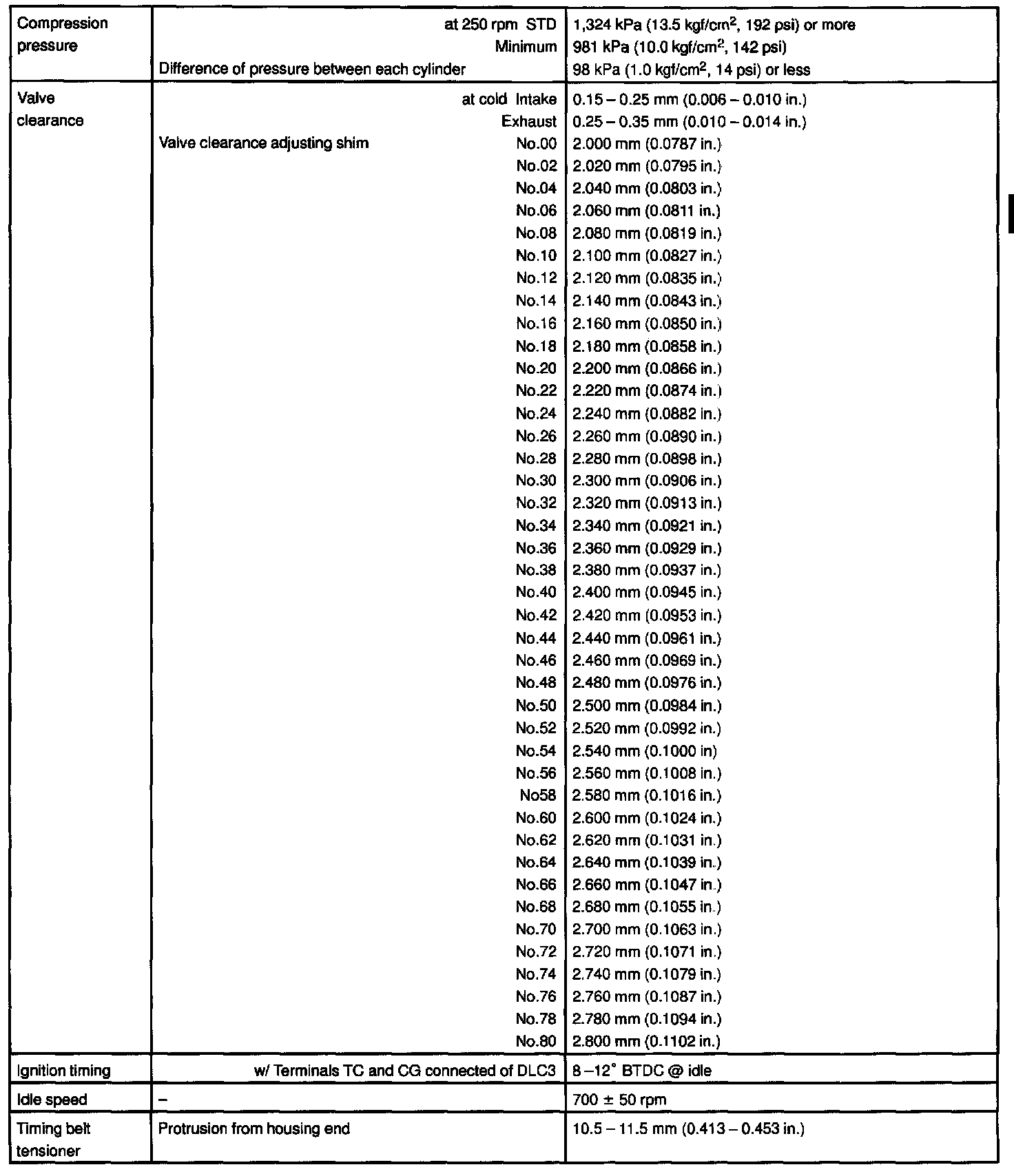

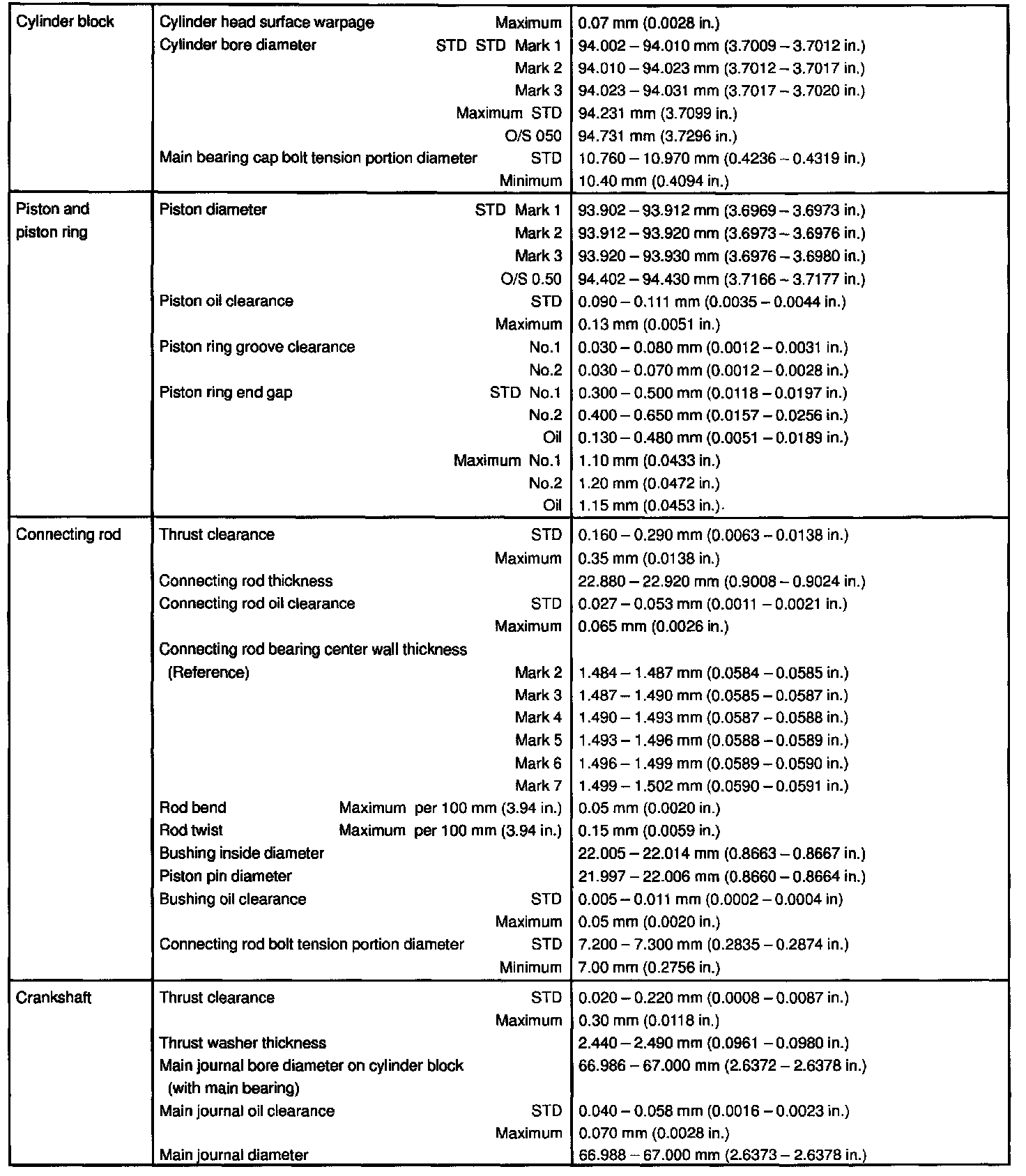

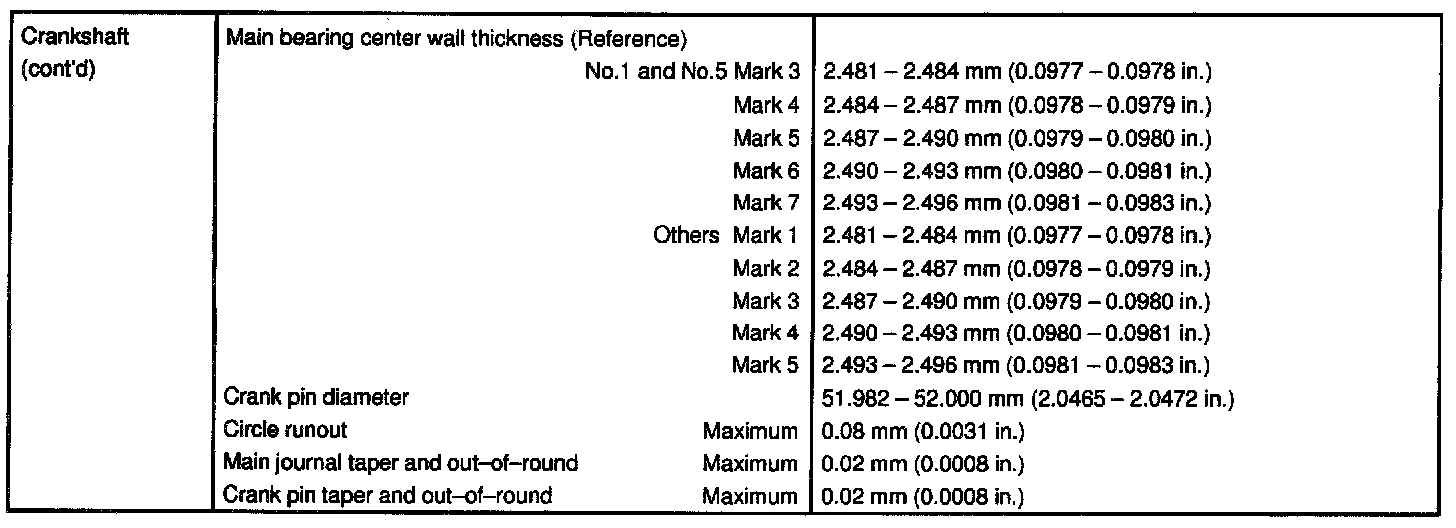

ENGINE MECHANICAL (2UZ-FE) SERVICE DATA:




ENGINE MECHANICAL (2UZ-FE) SERVICE DATA:




ENGINE MECHANICAL (2UZ-FE) SERVICE DATA:




ENGINE MECHANICAL (2UZ-FE) SERVICE DATA:

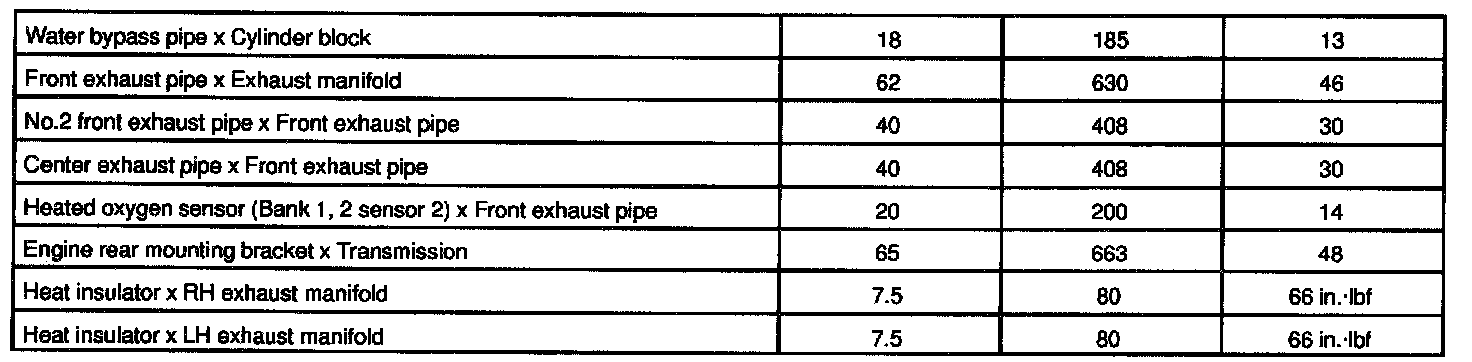

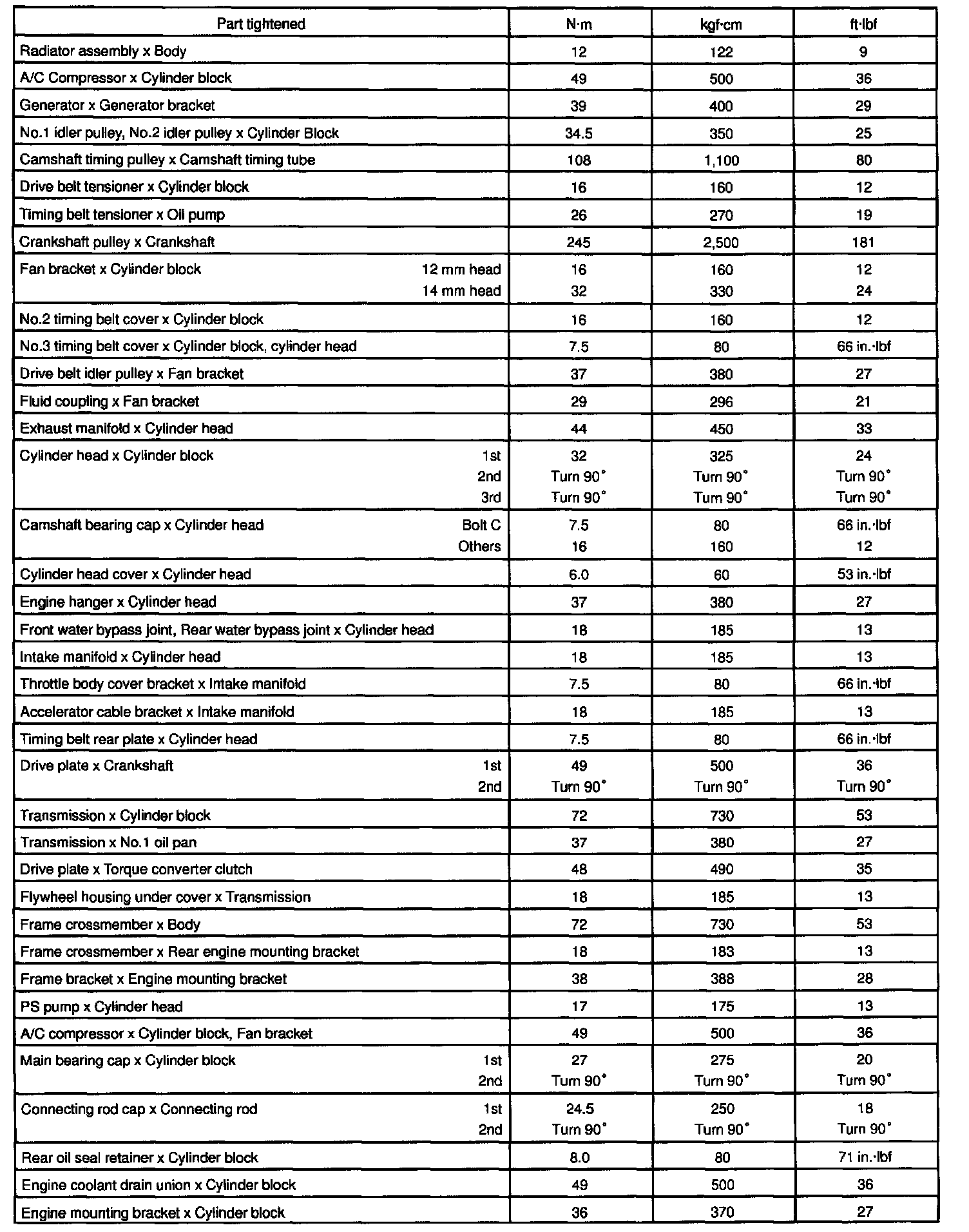

TORQUE SPECIFICATION:




TORQUE SPECIFICATION:
