Toyota Truck
>>
2004
>>
Landcruiser V8-4.7L (2UZ-FE)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Charging System
>>
Alternator
>>
Diagrams
>>
Exploded Views
Exploded Views

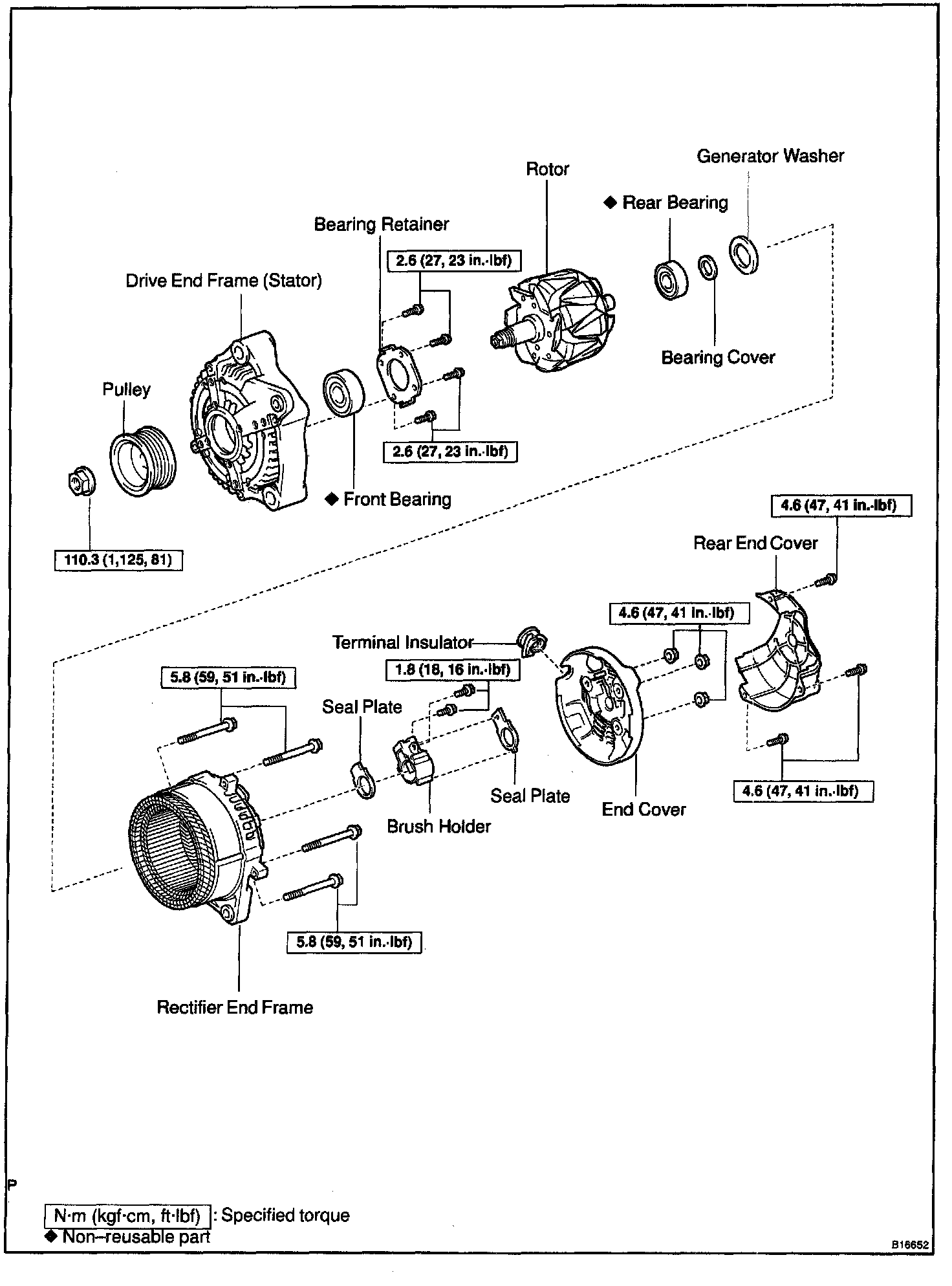

Generator - Part 1:

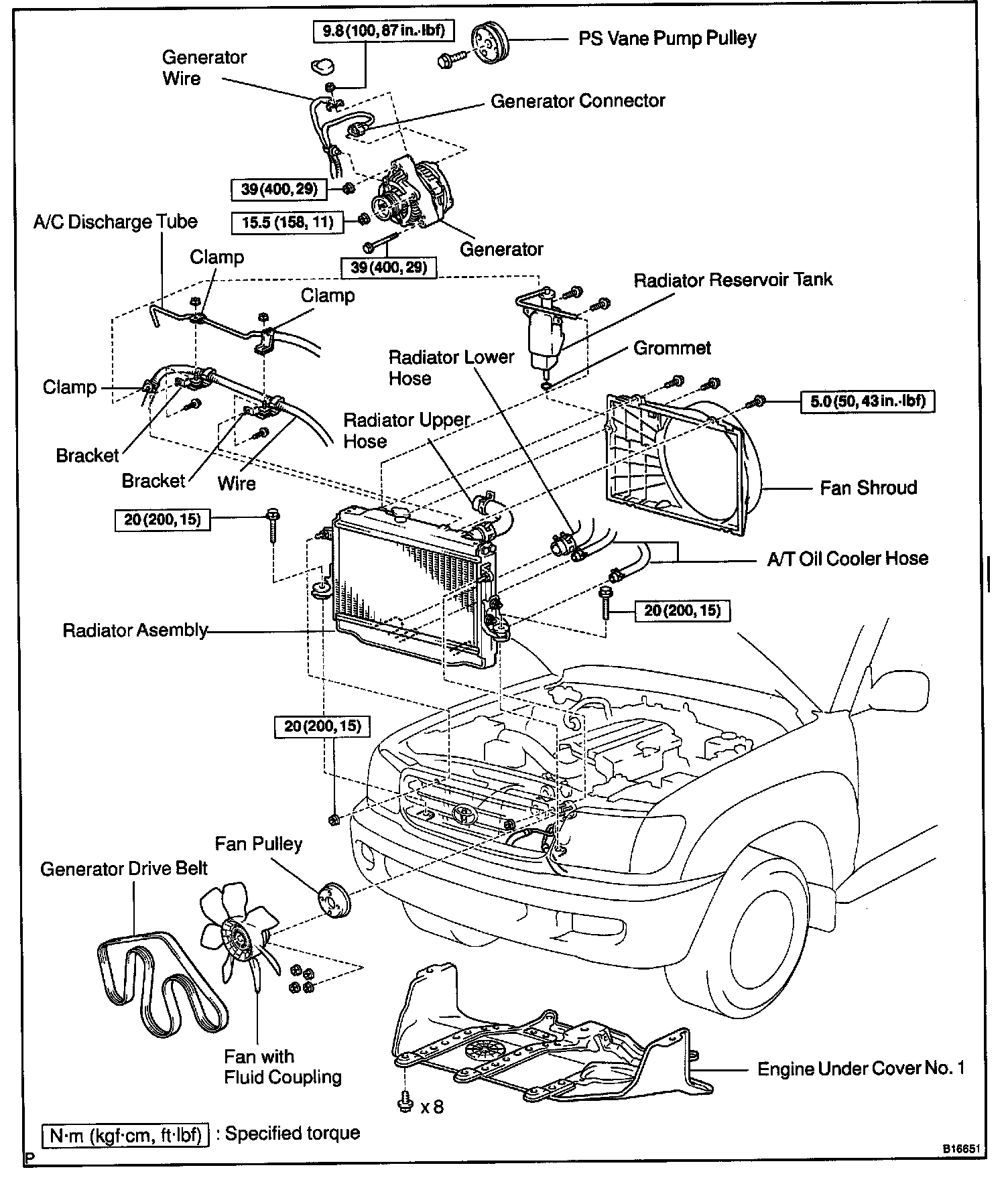

Generator - Part 2:
