Programming and Relearning

POWER DOOR LOCK CONTROL SYSTEM

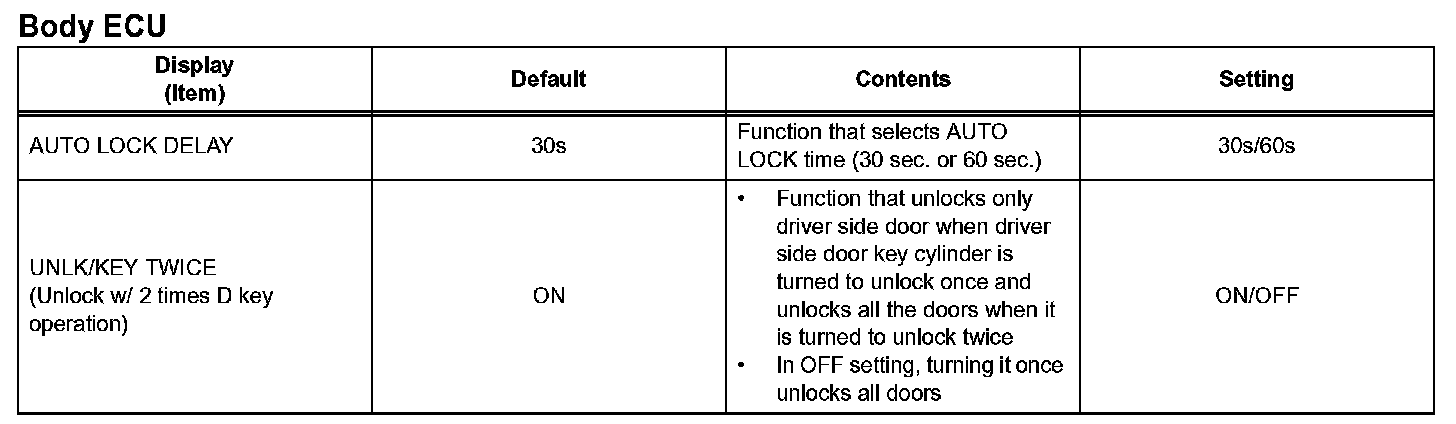

CUSTOMIZING FUNCTION WITH INTELLIGENT TESTER (REFERENCE)

HINT: The given items can be customized.






NOTE:
- After confirming whether the items requested by the customer are applicable or not for customization, perform customizing operations.
- Be sure to record the current settings before customization.
- When troubleshooting, make sure that the item in question is not set to "OFF" as a result of customization.

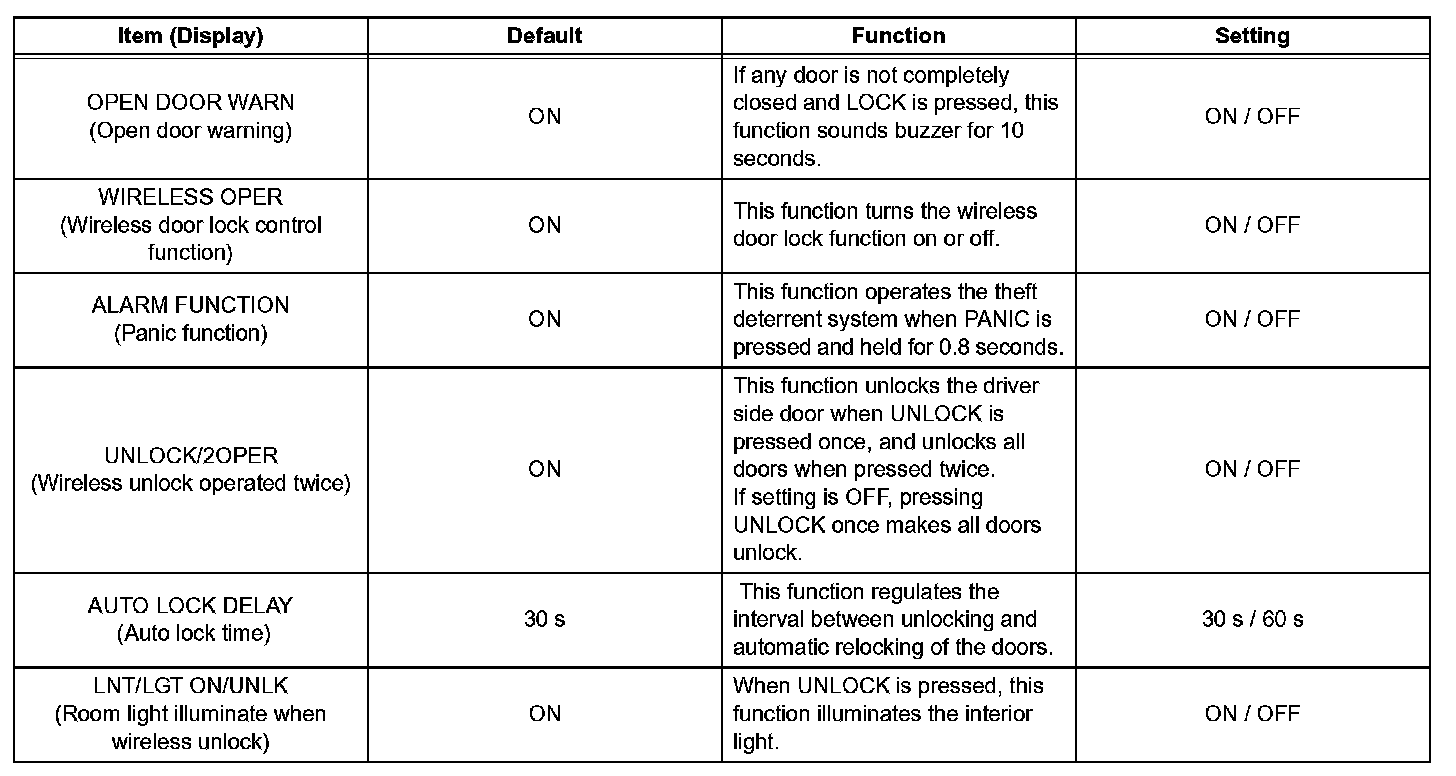

WIRELESS DOOR LOCK CONTROL SYSTEM

HINT: The given items can be customized.






NOTE:
- When the customer requests a change in a function, first make sure that customization of the function(s) is possible.
- Be sure to record the current settings before customizing.
- When troubleshooting a function, first make sure that the function is not set to OFF.
