Service Data








SERVICE SPECIFICATIONS: 3UR-FBE ENGINE MECHANICAL: SERVICE DATA

SERVICE DATA

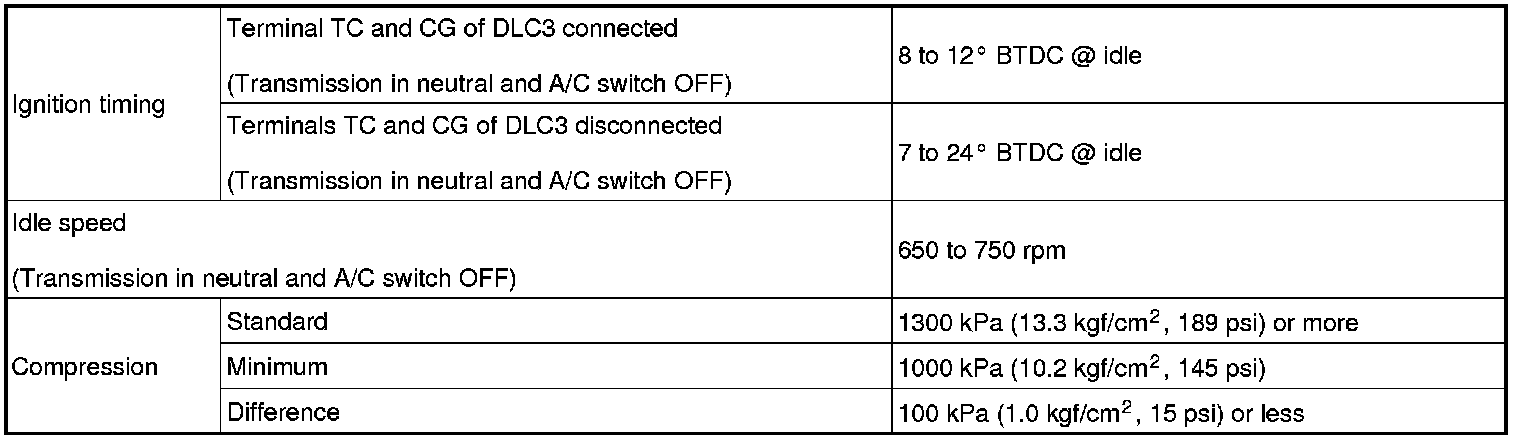

ENGINE

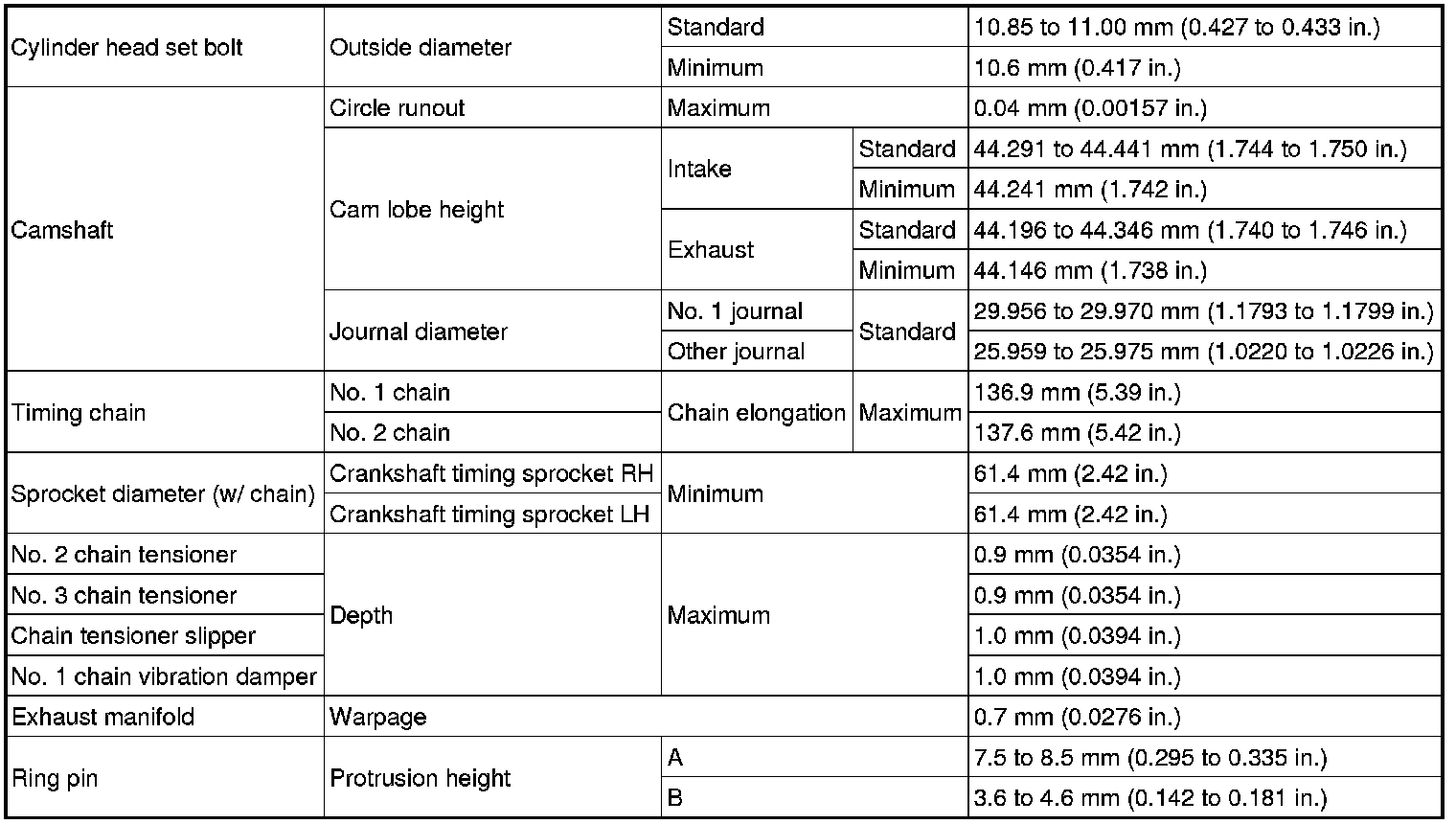

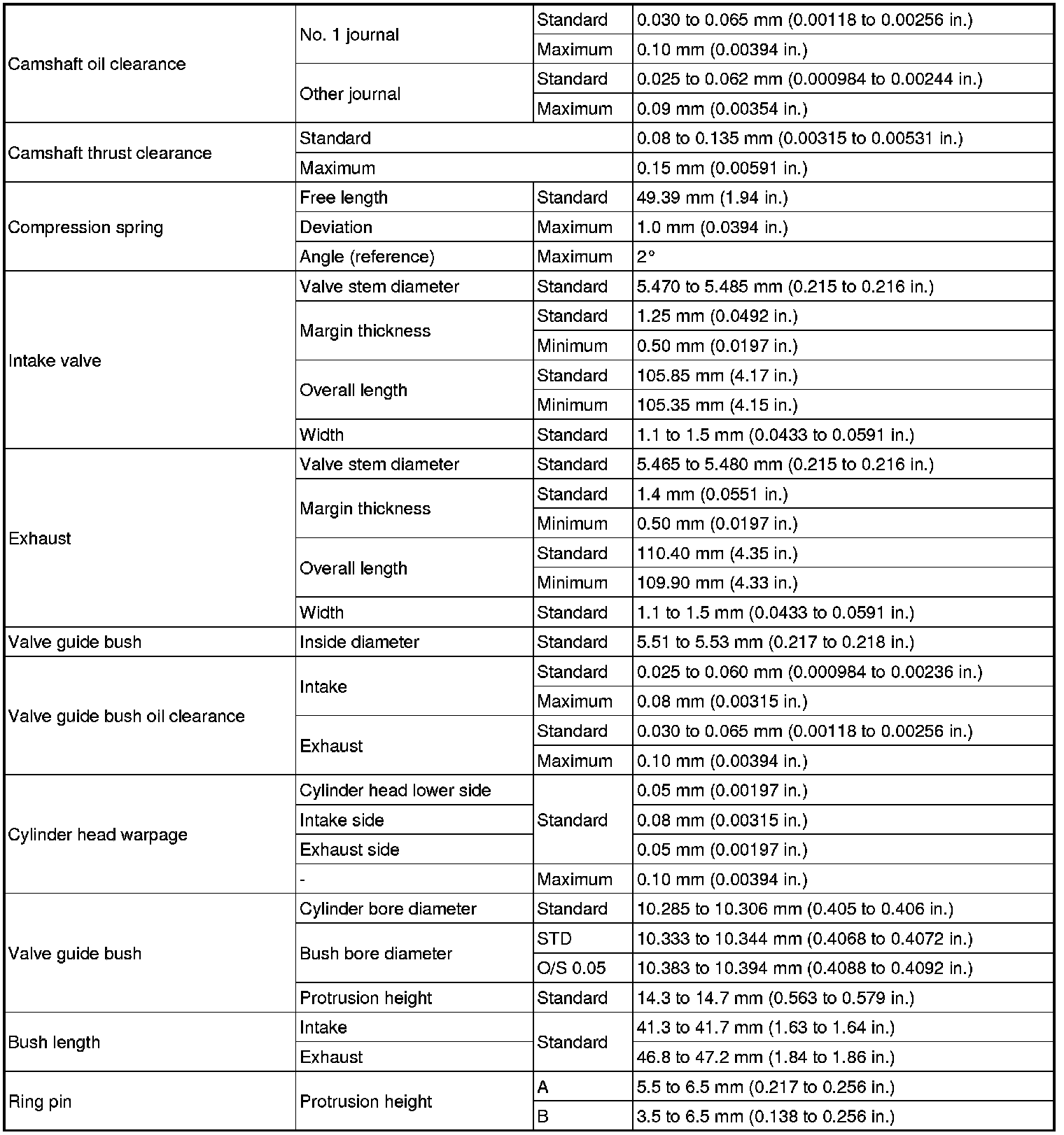

CYLINDER HEAD

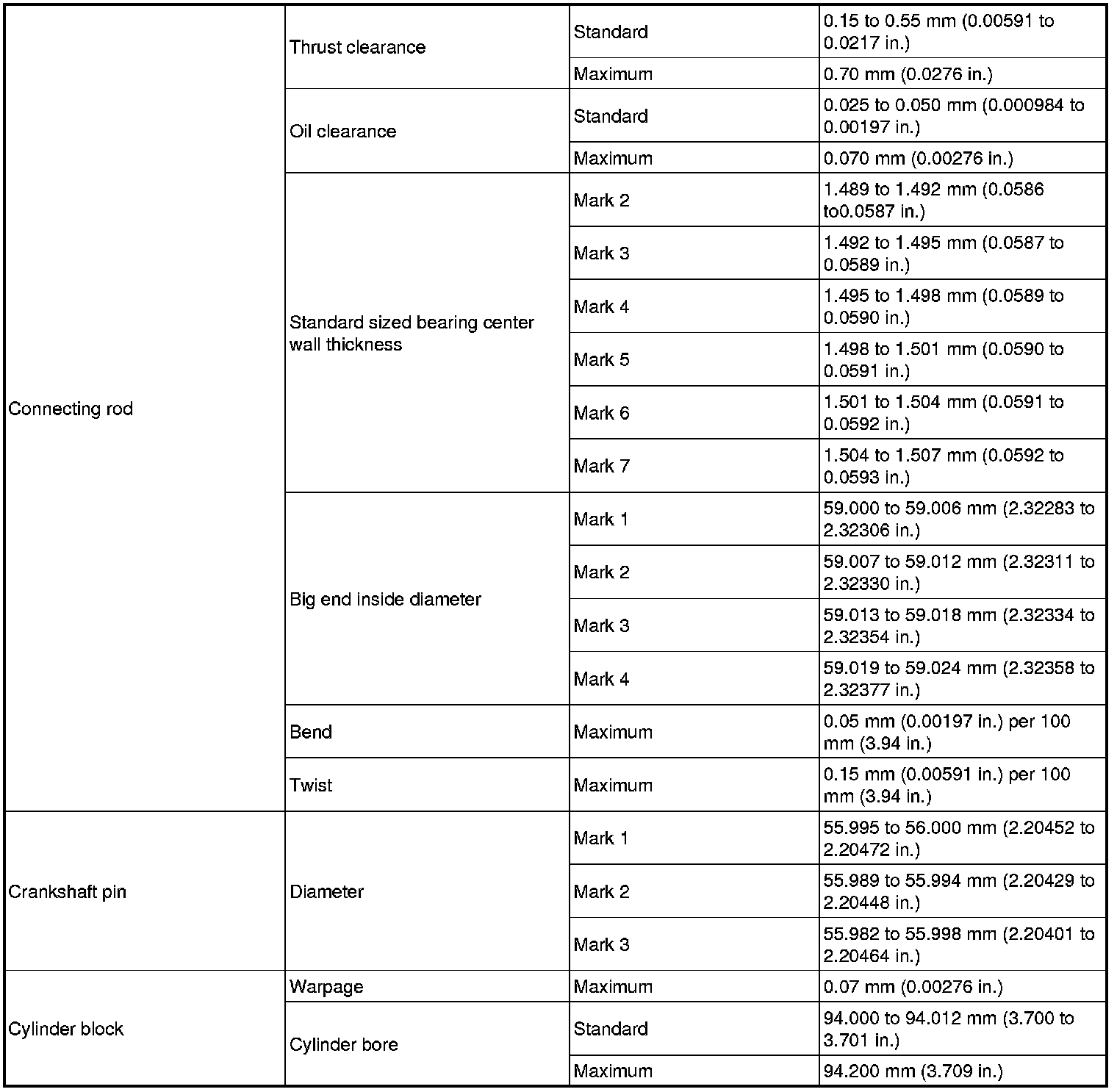

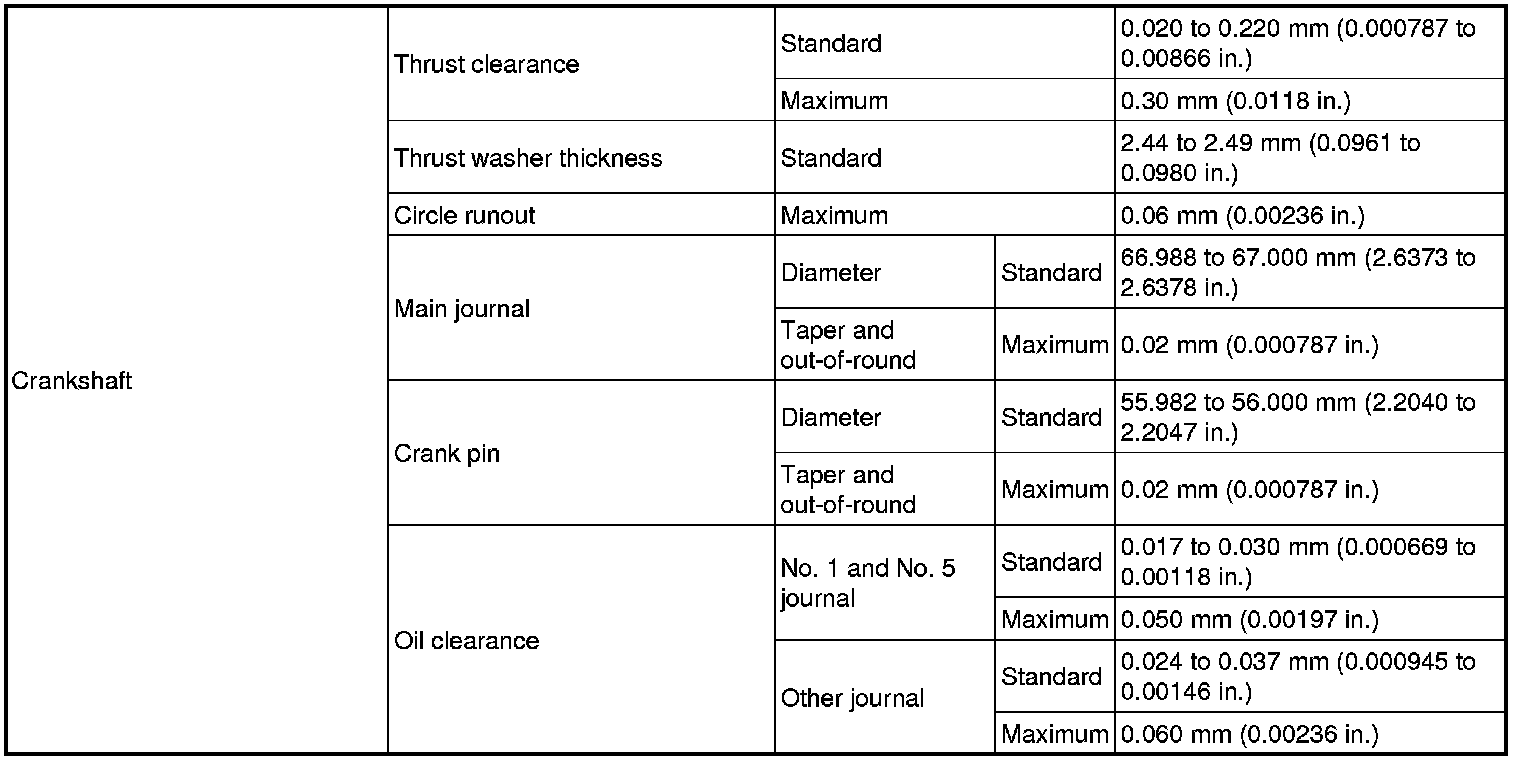

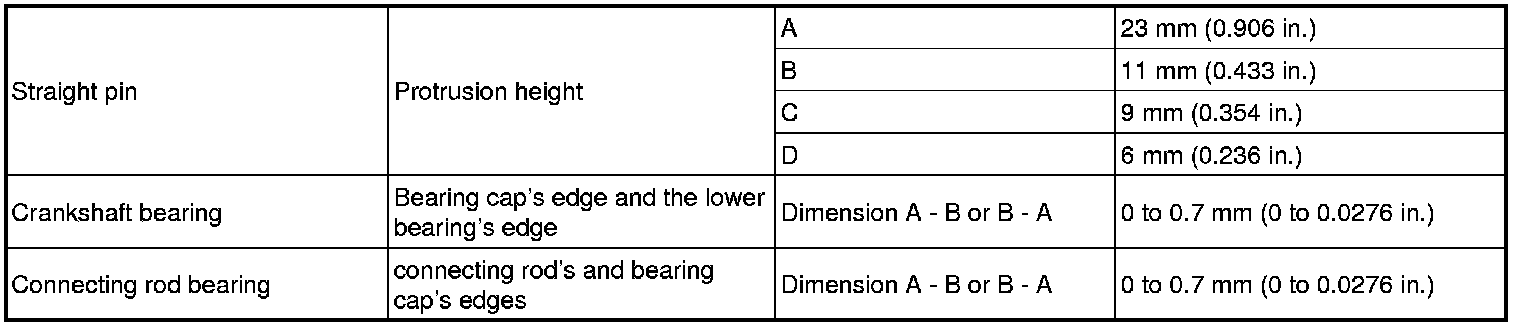

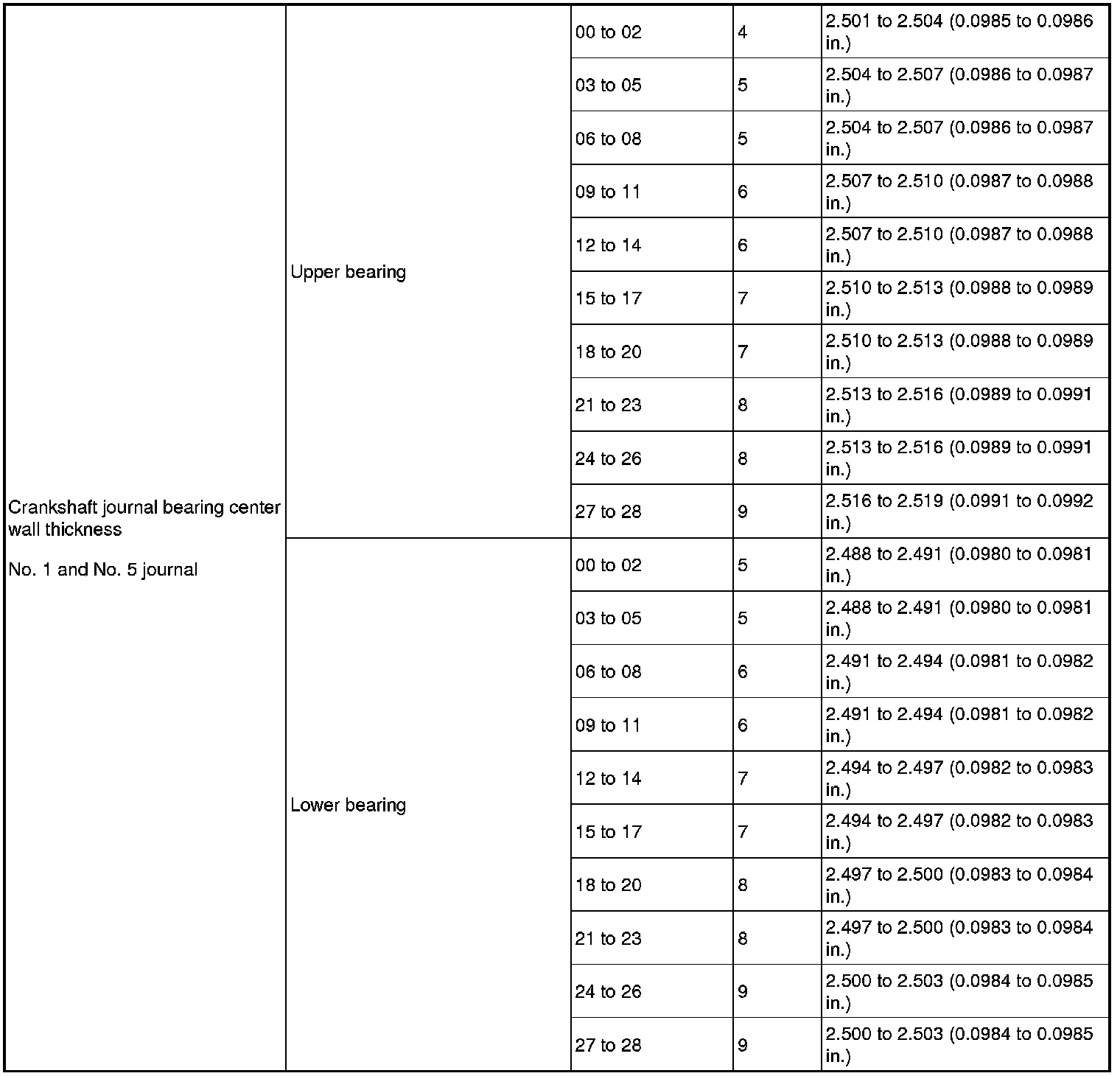

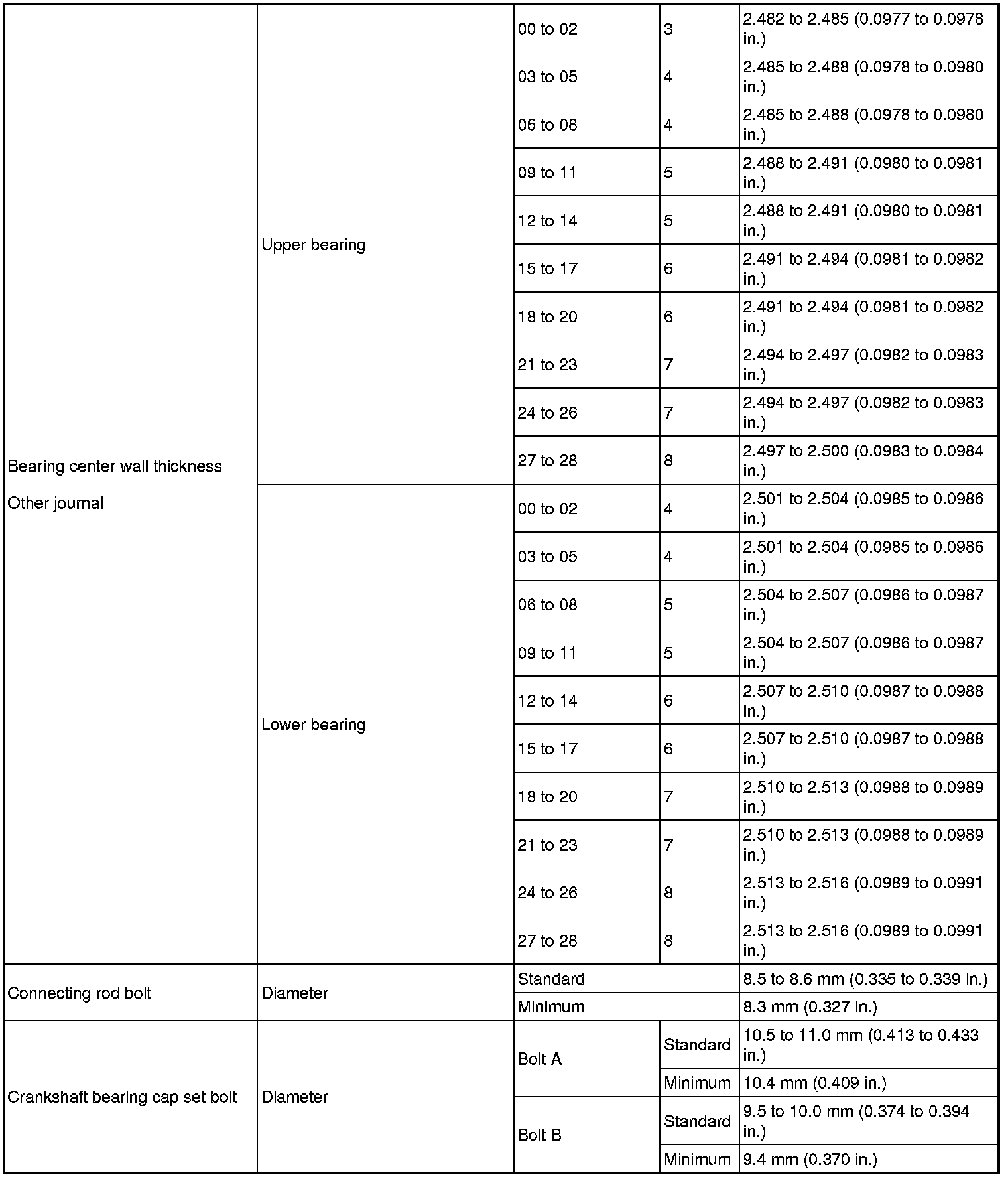

CYLINDER BLOCK

























ENGINE UNIT
