Wheel Alignment Standard
WHEEL ALIGNMENT STANDARDa. FRONT WHEEL ALIGNMENT

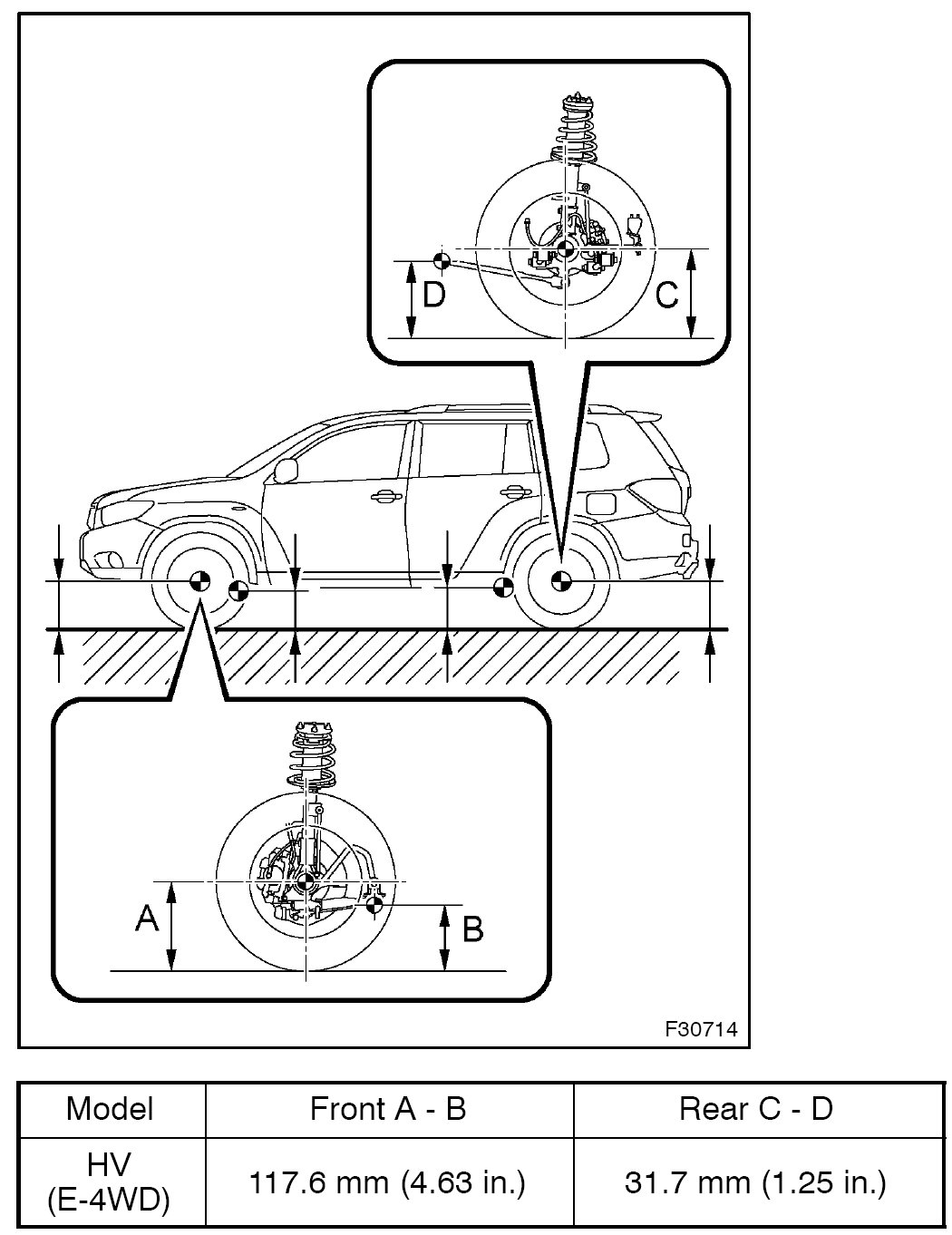

1. Vehicle height:
NOTICE:
- Before inspecting the wheel alignment, adjust the vehicle height to the specified value.
- Be sure to perform measurement on a level surface.
- If it is necessary to go under the vehicle for measurement, confirm that the parking brake is applied and the vehicle is secured with chocks.
Measuring points:
A: Ground clearance of front wheel center.
B: Ground clearance of No. 1 lower suspension arm bushing set bolt center.
C: Ground clearance of rear wheel center.
D: Ground clearance of strut rod set bolt center.

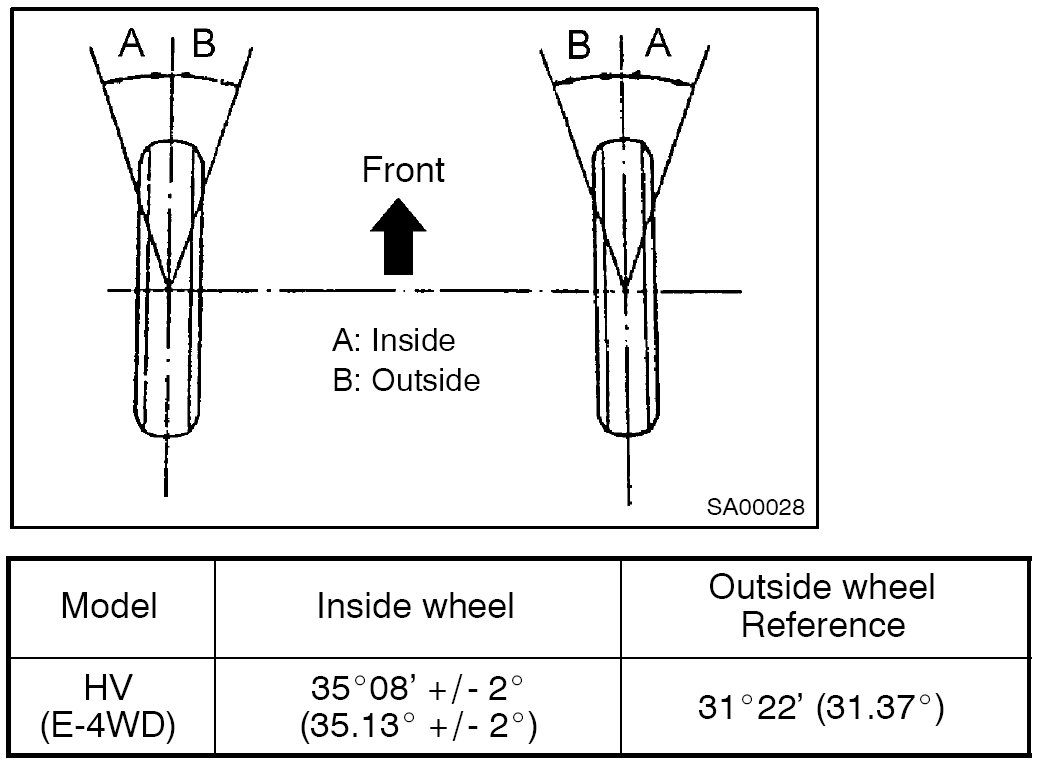

2. Wheel turning angle:

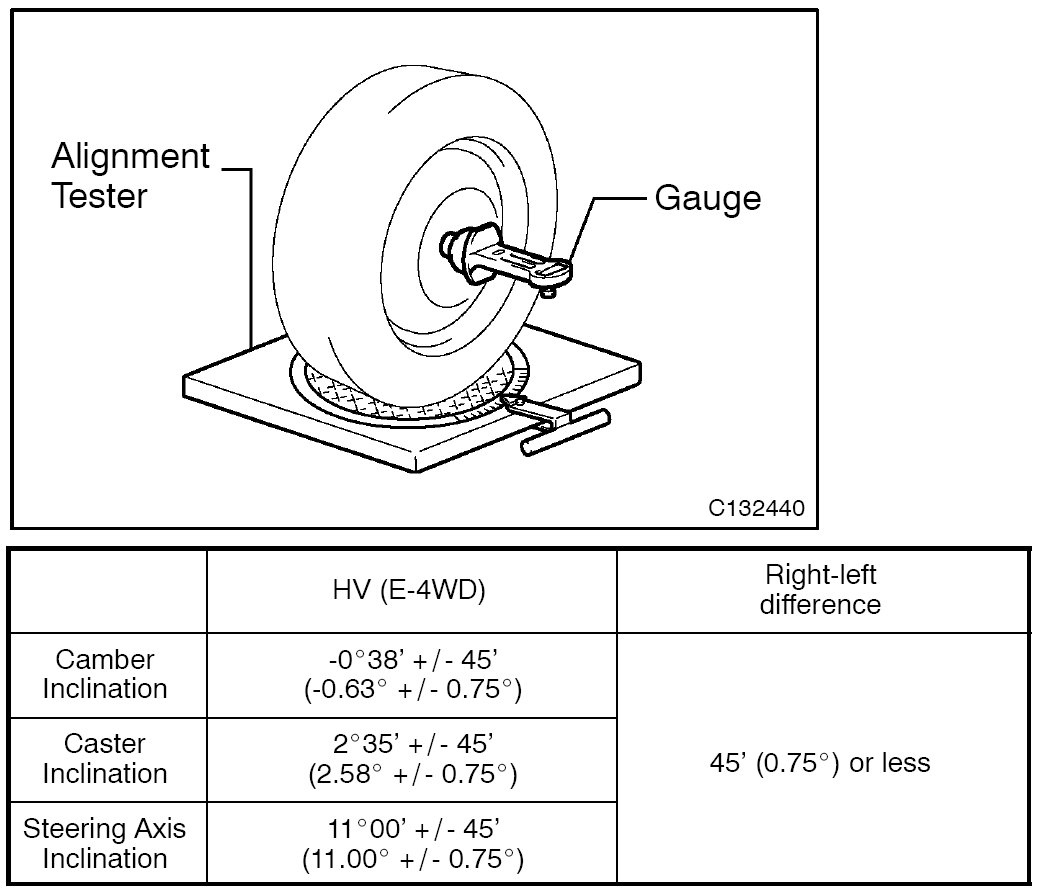

3. Camber, caster and steering axis inclination:

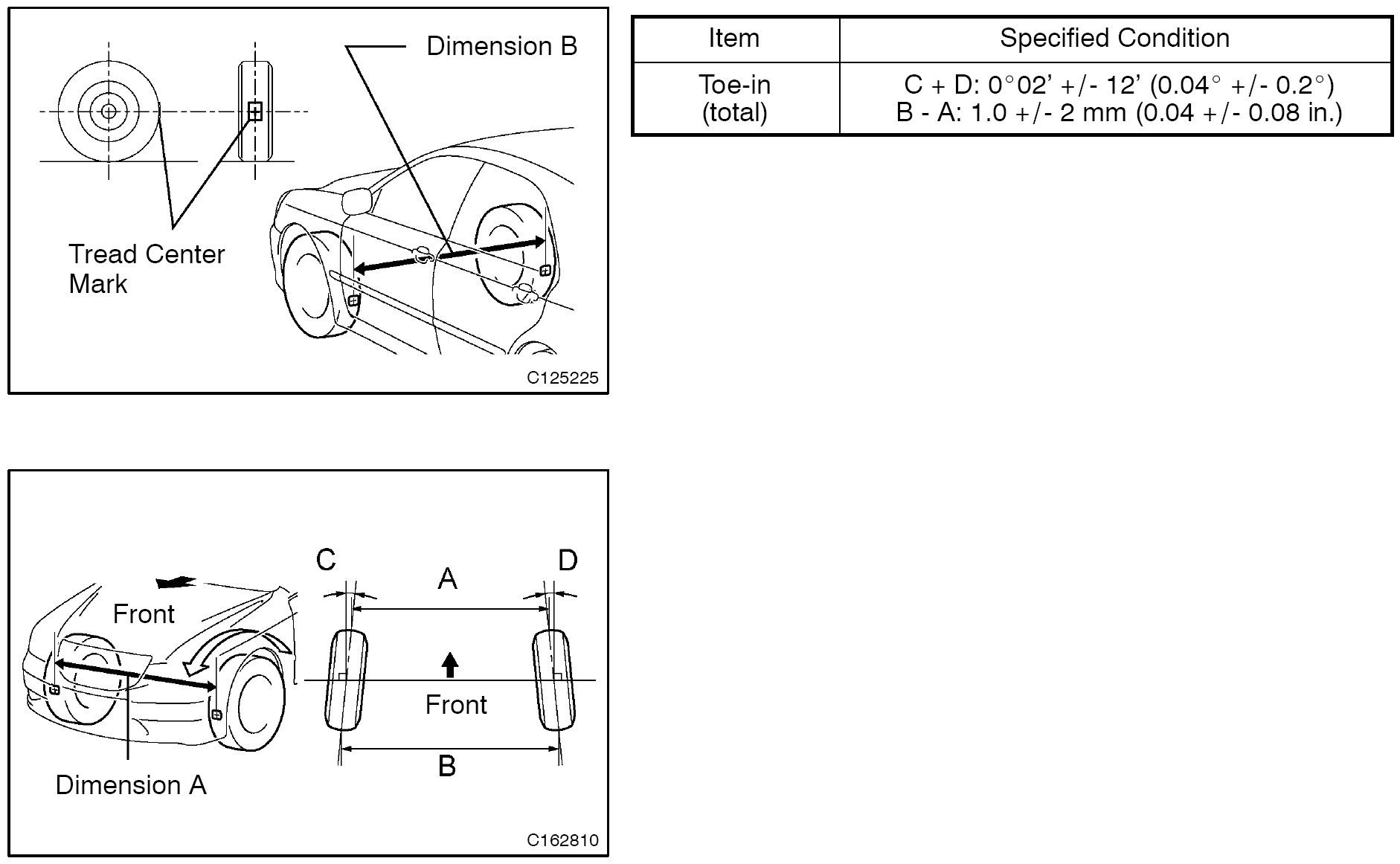

4. Toe-in:
HINT: Measure "B - A" only when "C + D" cannot be measured.
b. REAR WHEEL ALIGNMENT

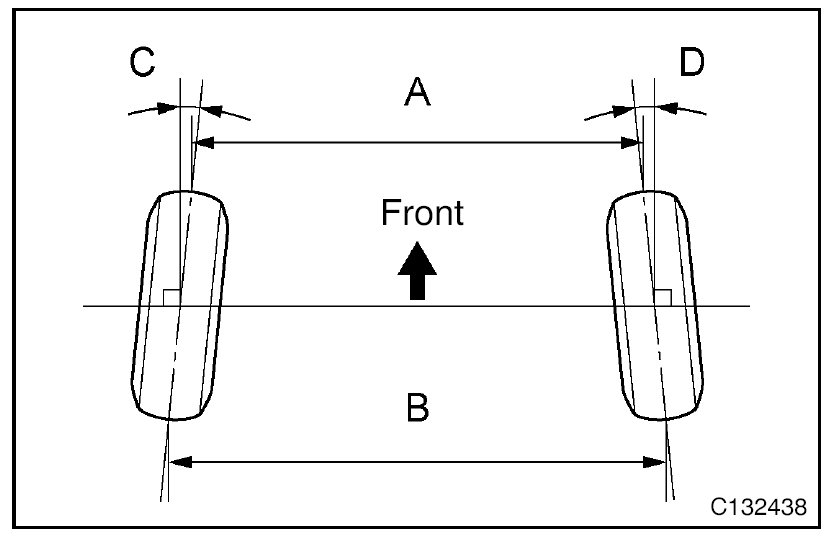

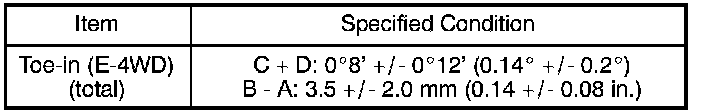

1. Toe-in:
HINT: Measure "B - A" only when "C + D" cannot be measured.

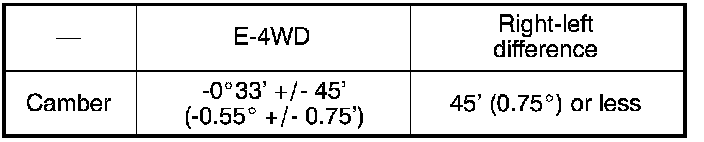

2. Camber:
HINT: Camber is not adjustable. If the measurement is not within the specified range, inspect the suspension parts for damage and/or wear, and replace them if necessary.
