Alignment: Specifications
SERVICE SPECIFICATIONS: SUSPENSION: SERVICE DATA
Vehicle Height (unloaded vehicle):
Measuring points:

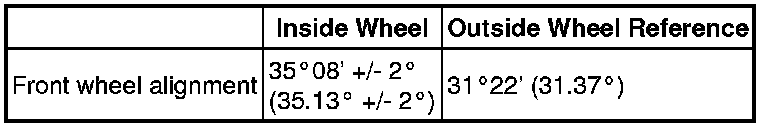

Wheel turning Angle (unloaded vehicle):

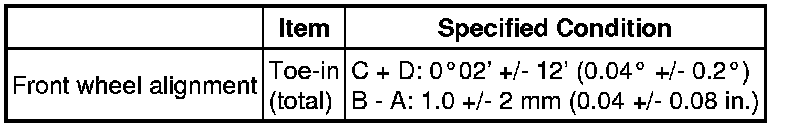

Toe-in:

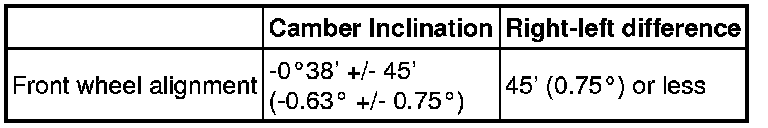

Camber (unloaded vehicle):

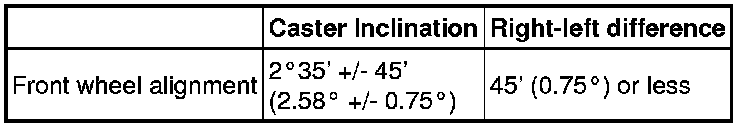

Caster (unloaded vehicle):

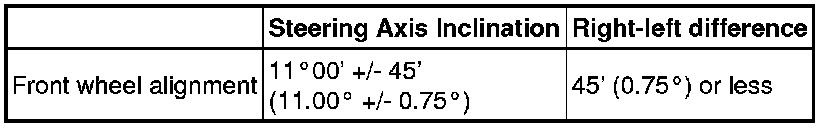

Steering Axis Inclination (unloaded vehicle):

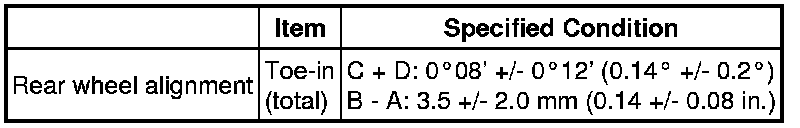

Toe-in:
Camber:

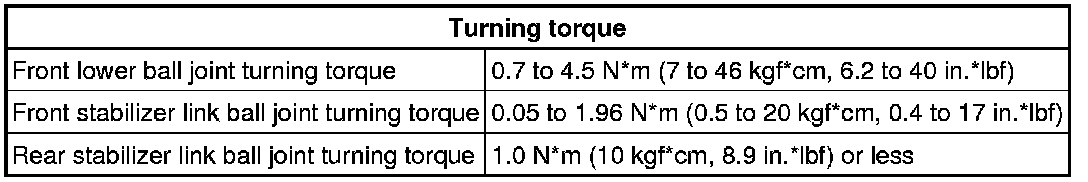

Turning torque:
