Fuse Block Wiring Harness
Fuse Block Wiring Harness

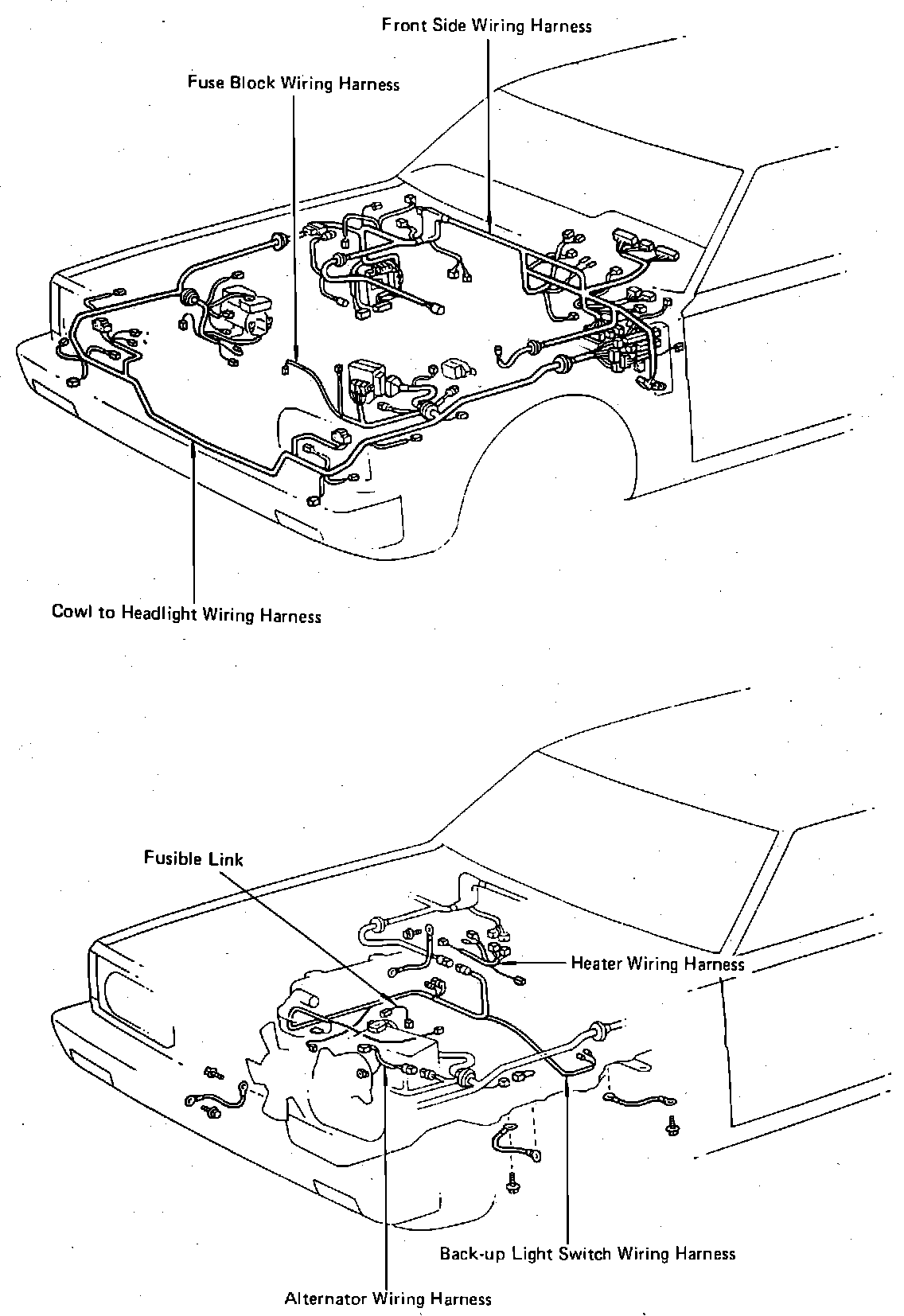

Engine Compartment Wiring Harness Locations.:
Front LH Side Of Engine Compartment
Applicable to: 1981-83 Models
