Transmission Control Systems
Transmission Control Systems

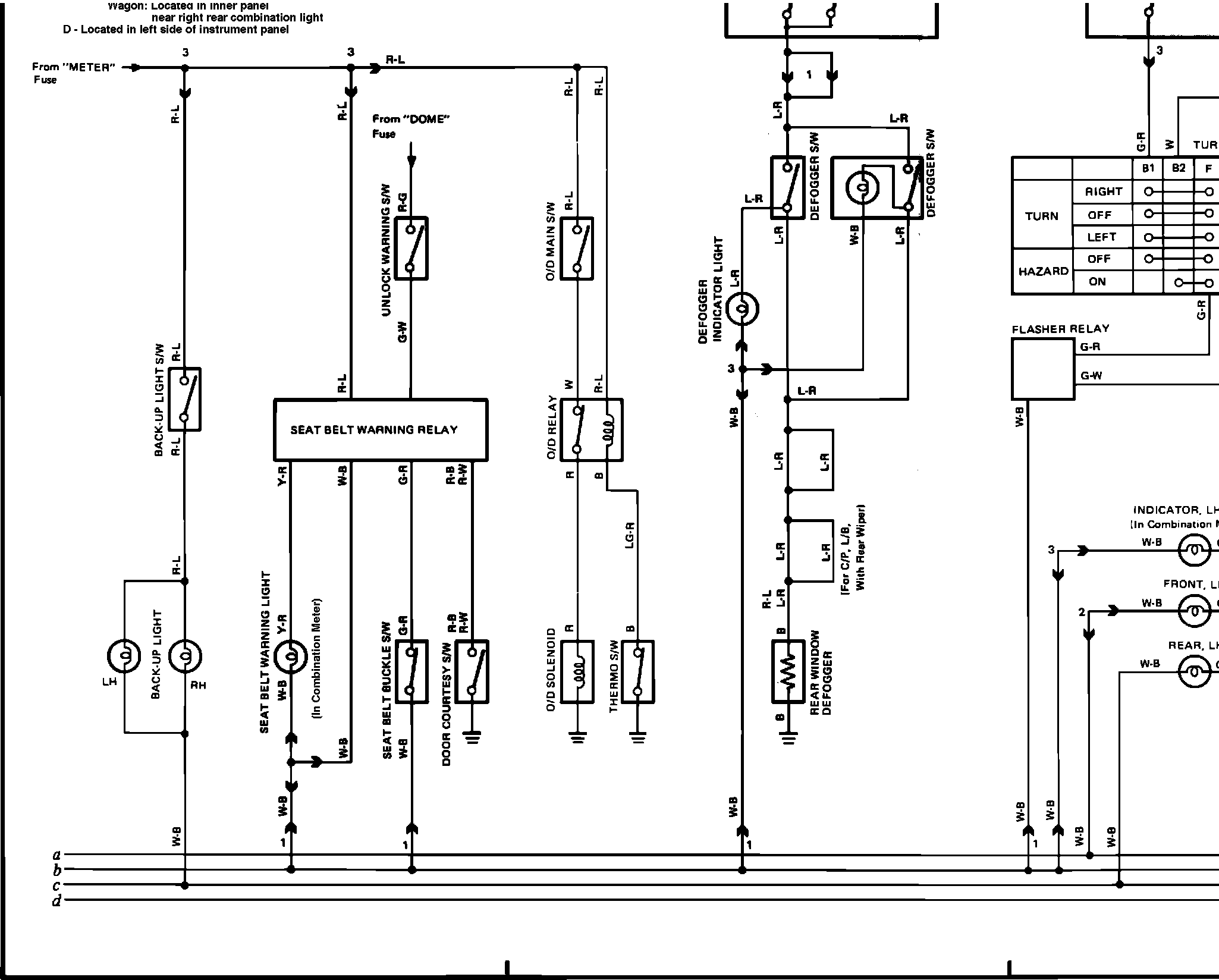

a�*��*& +'+P=+jJ+"S+Fig. 19b Back-Up Light, Seat Belt, Overdrive, Rear Defogger, Turn Signal, Hazard, Horn, Stop Light, Rear Wiper & Washer, Windshield Wiper & Washer, and Taillight & Illumination Wiring Diagram:
