Cruise Control
Cruise Control

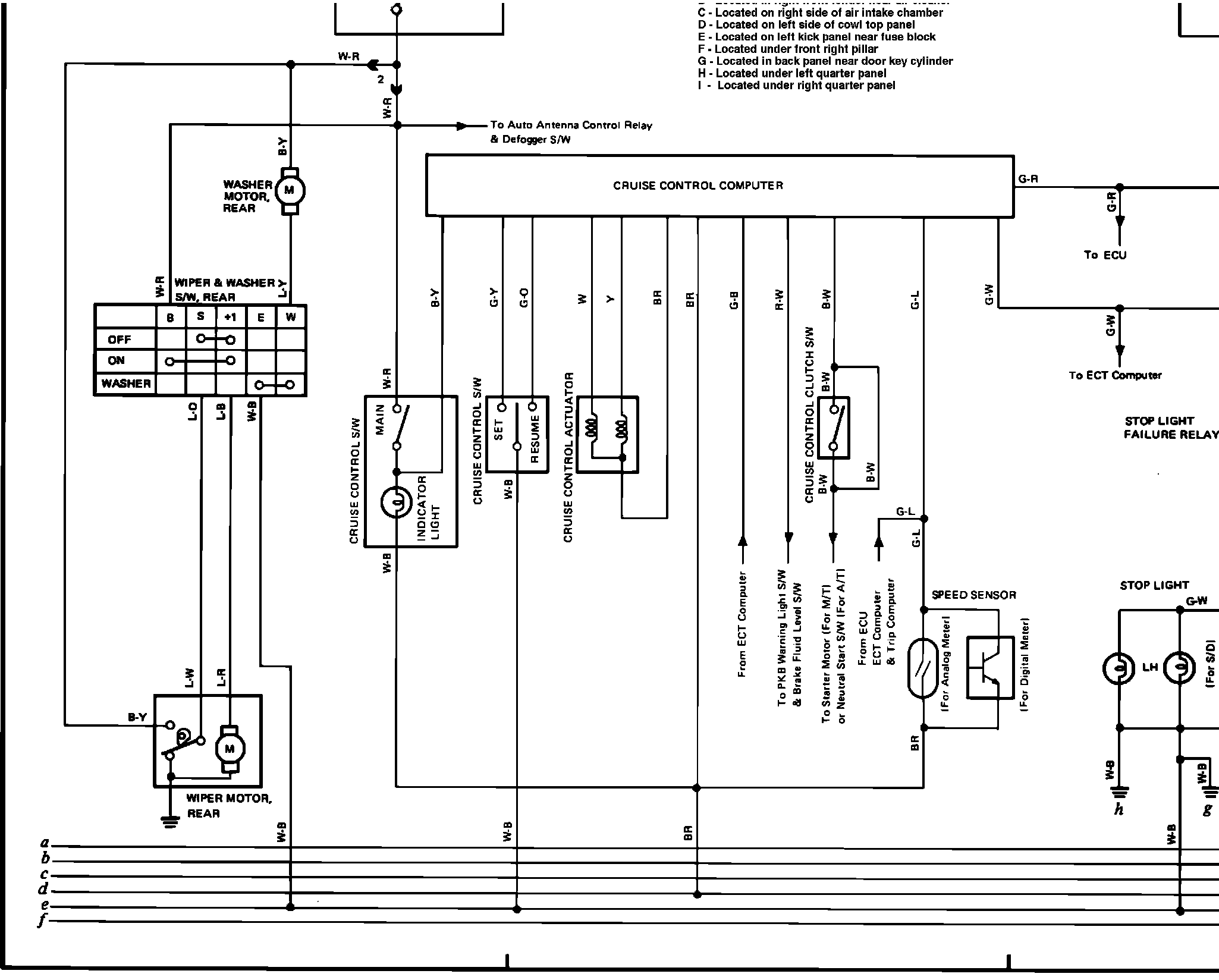

[TI�����M�-���Fig. 26d Rear Wiper & Washer, Cruise Control, Stop Light, Taillight & Illumination, Headlight, Interior Lighting, and Clock Wiring Diagram:
