Wiper and Washer Systems
>>
Diagrams
>>
Front
Front

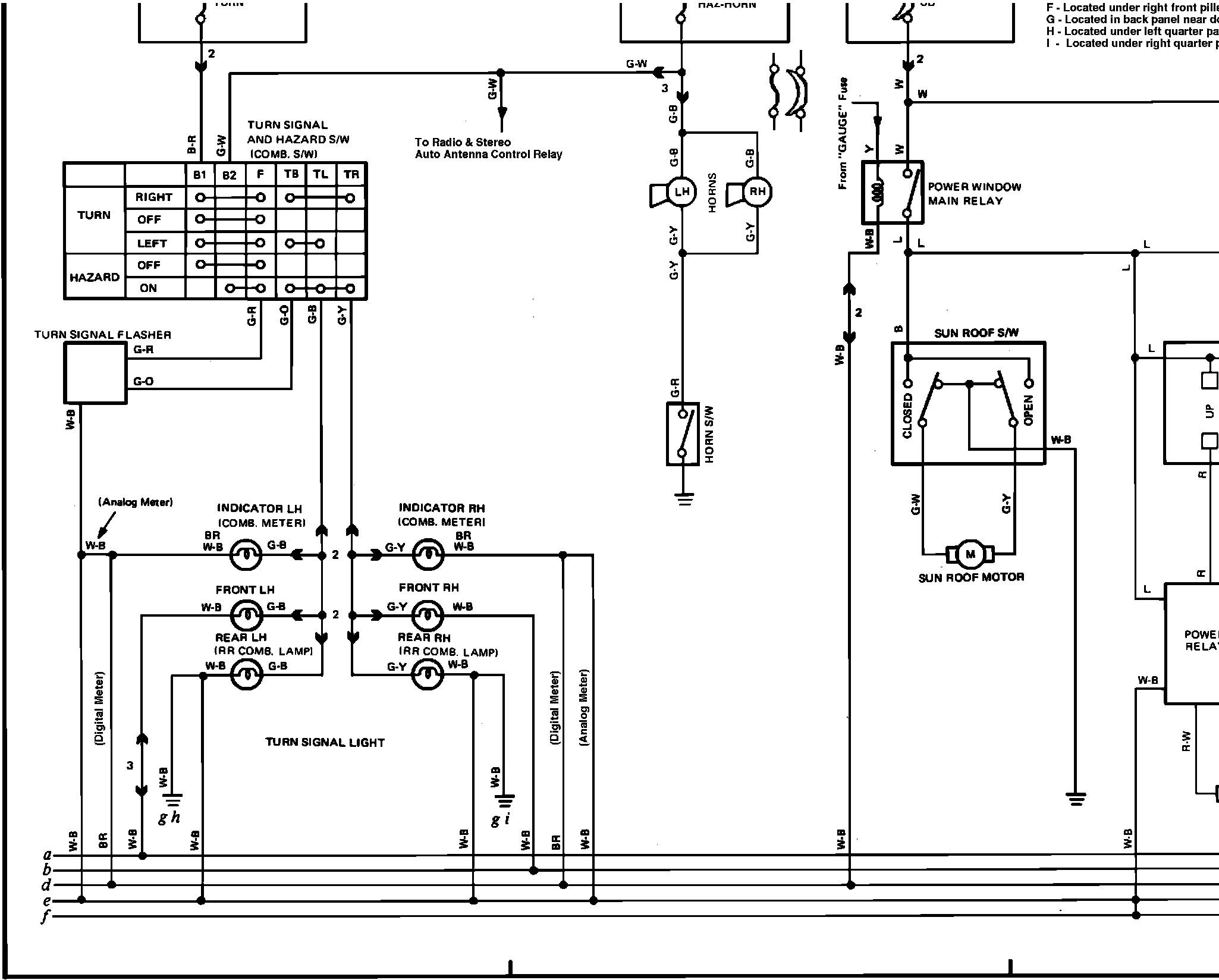

Qo����=��'̏�������Fig. 27c Turn Signal, Hazard, Horn, Sun Roof, Power Windows, Power Door Locks, and Windshield Wiper & Washer Wiring Diagram:
