Receiver Dryer: Service and Repair

REMOVAL

1. Recover refrigerant from air conditioning system.
2. Disconnect two liquid line tubes from receiver.

NOTE: Cap the open fittings immediately to keep moisture out of the system.

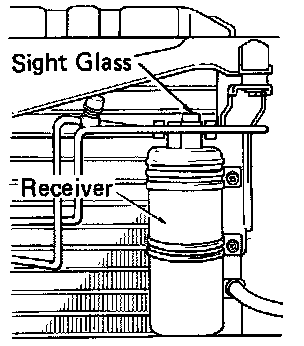

3. Remove receiver from receiver holder.

INSTALLATION

1. Install receiver in receiver holder.

NOTE: Do not remove blind plugs until ready for connection.

2. Connect two liquid line tubes to receiver.
Torque: 13 Nm (10 ft-lb)
3. If receiver is replaced, add compressor oil to compressor.
Add 10 - 20 cc (0.3 - 0.7 oz)
4. Evacuate, charge and test air conditioning system.
Refill capacity 650 - 750 g (23 - 26.5 oz)
