Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
1986
>>
Corolla FX L4-1839cc DSL (1CLC)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Automatic Transmission/Transaxle
>>
A/T Technical Data
>>
A130L 3-SPD A/T
A130L 3-SPD A/T

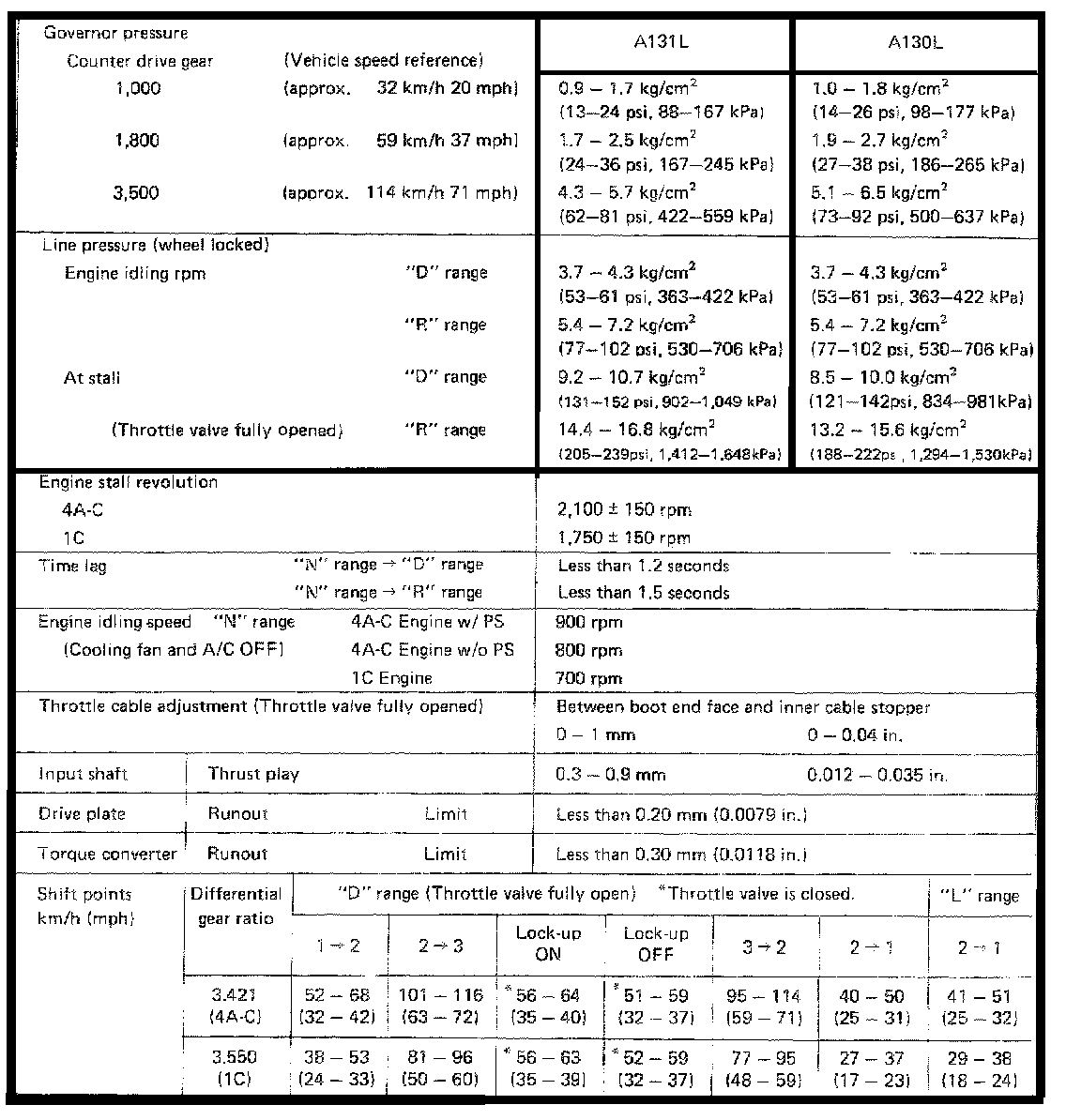

A130L 3-spd A/T, Line Pressure/Shift Points:

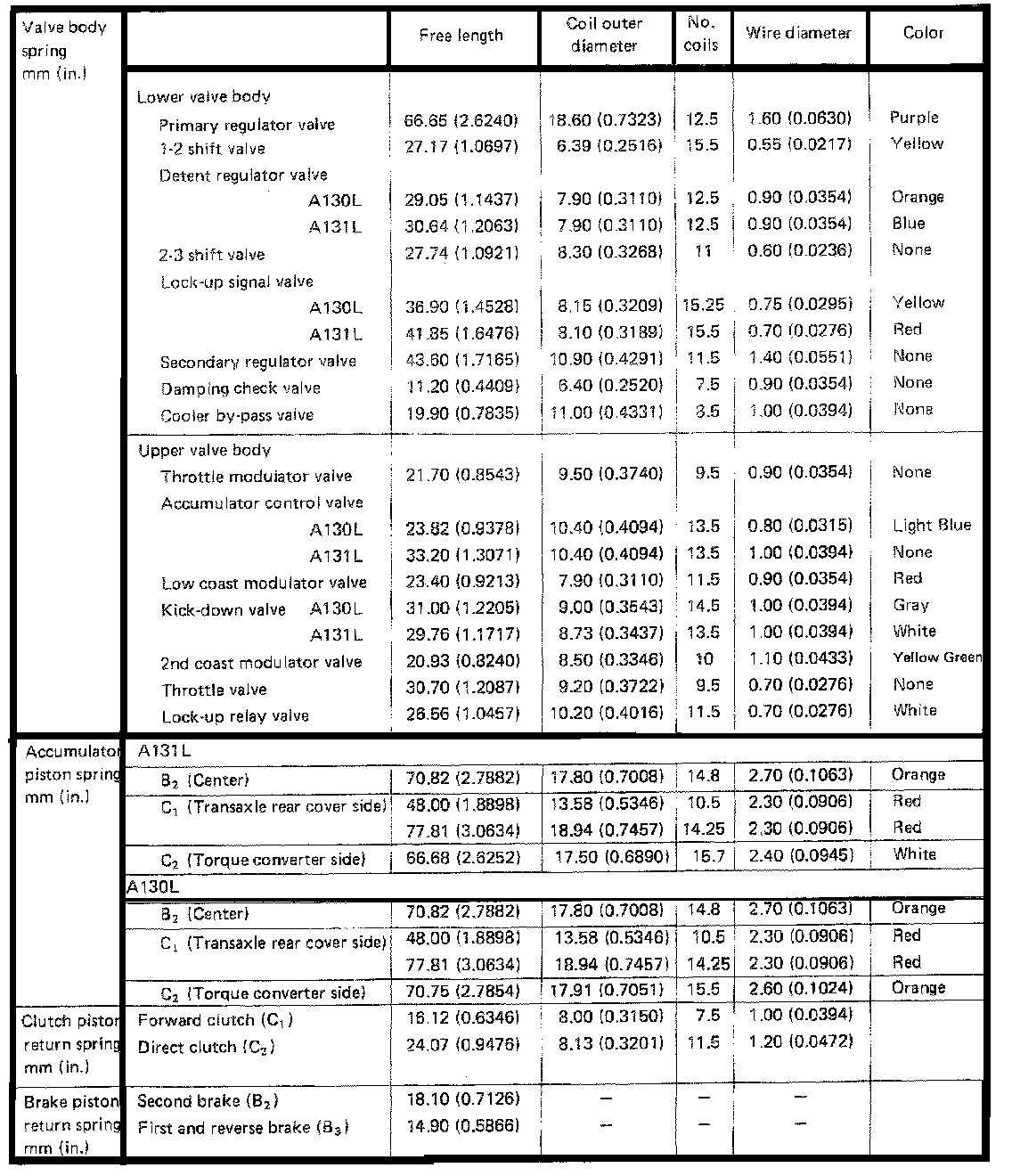

A130L 3-spd A/T, Valve Body/Accumulator Diameter:

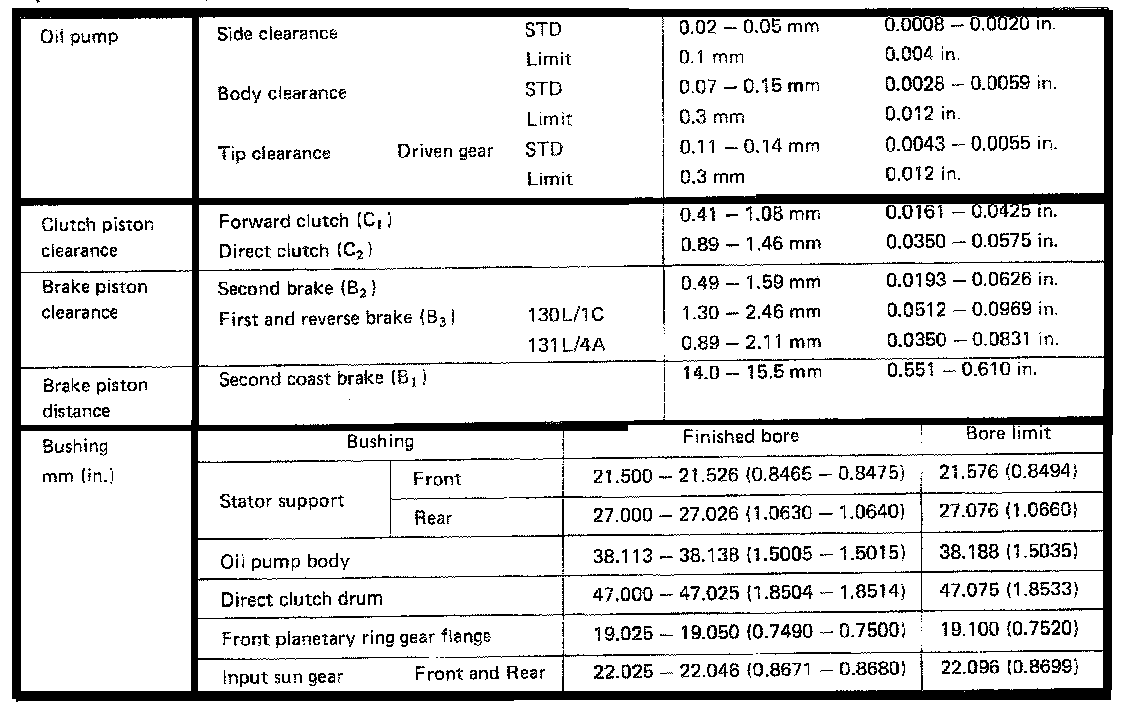

A130L 3-spd A/T, Oil Pump/Clutch Clearance:
