Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
1987
>>
Celica L4-2.0L (3S-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>

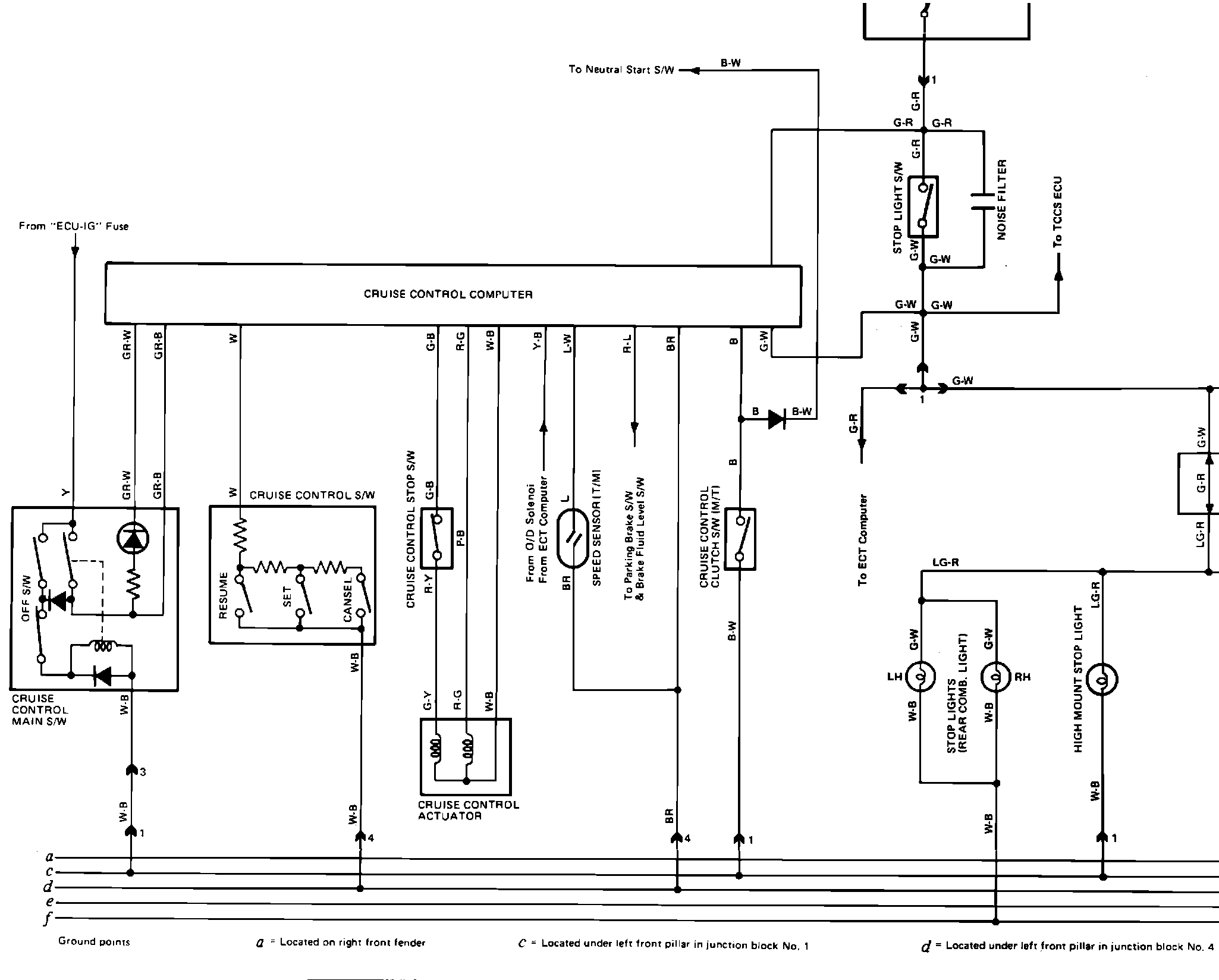

Cruise Control
Cruise Control
FZ�I�����X��O��$�����Fig. 2e complete body & chassis wiring:
