Corolla FX L4-1587cc 1.6L DOHC (4A-GE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Coolant Temperature Sensor/Switch (For Computer)
>>
Testing and Inspection
>>
Circuit Test

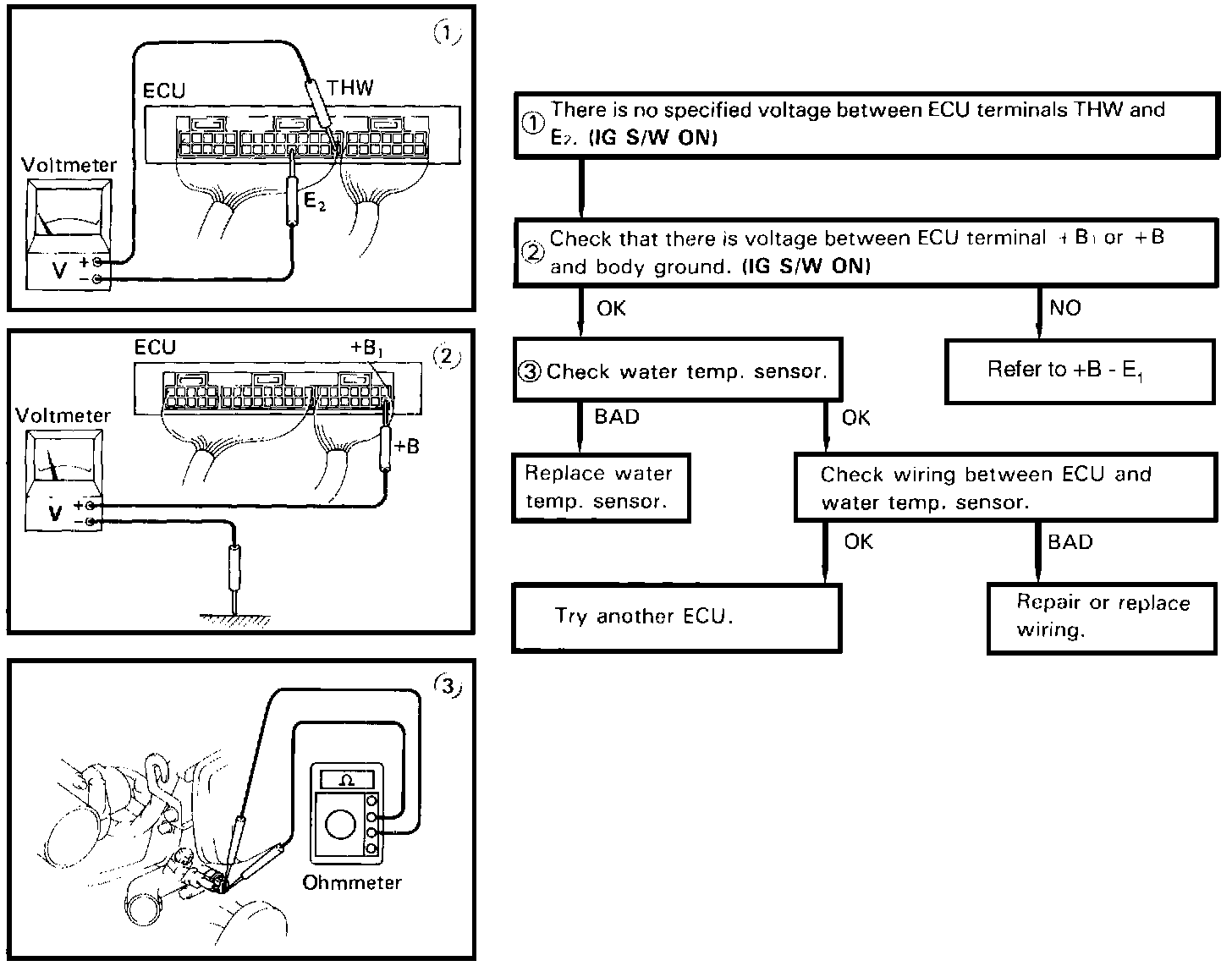

Circuit Test
NO. 6

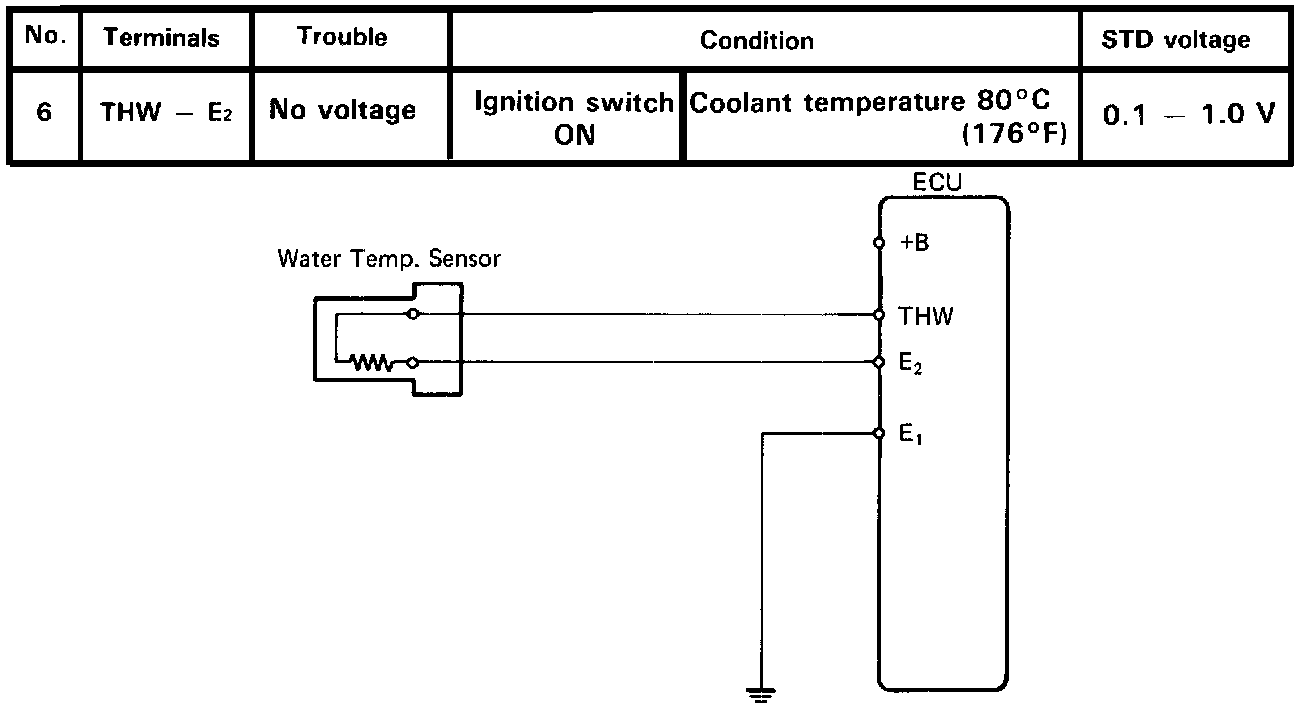

Test No. 6 Summary:
THW - E2:
