Water Temperature Sensor (THW)
INSPECTION OF WATER TEMPERATURE SENSOR
MEASURE RESISTANCE OF WATER TEMPERATURE SENSOR.
a. Disconnect the connector.

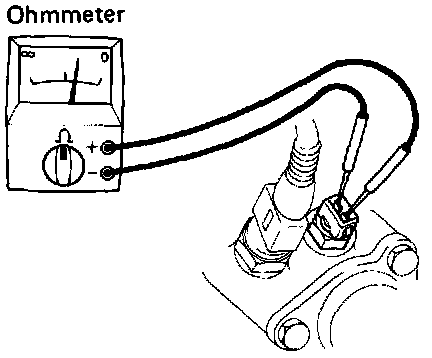

b. Using an ohmmeter, measure the resistance between both terminals.

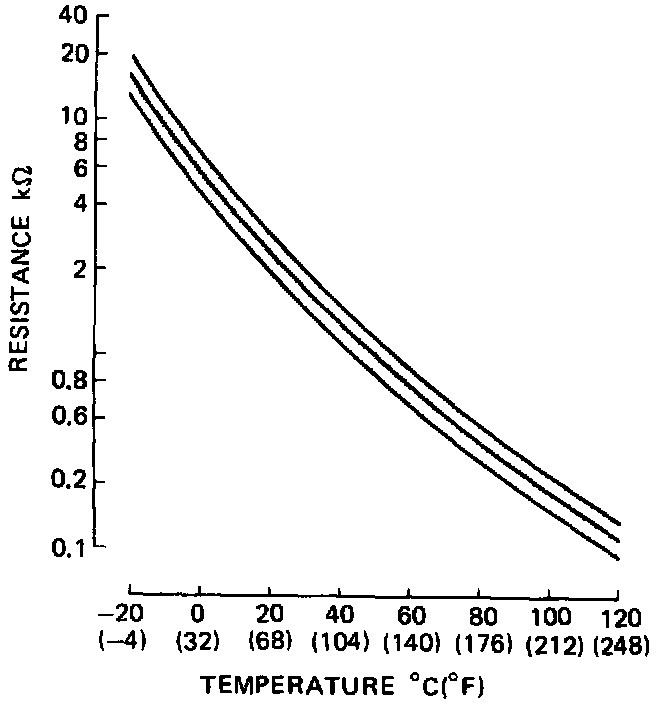

Resistance: Refer to chart.
MEASURE RESISTANCE OF WATER TEMPERATURE SENSOR.
a. Disconnect the connector.
b. Using an ohmmeter, measure the resistance between both terminals.
Resistance: Refer to chart.
