Home >> Toyota >> 1988 >> Corolla FX L4-1587cc 1.6L DOHC (4A-GE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> A/C Signal >> Testing and Inspection

A/C Signal: Testing and Inspection

TEST NO. 11

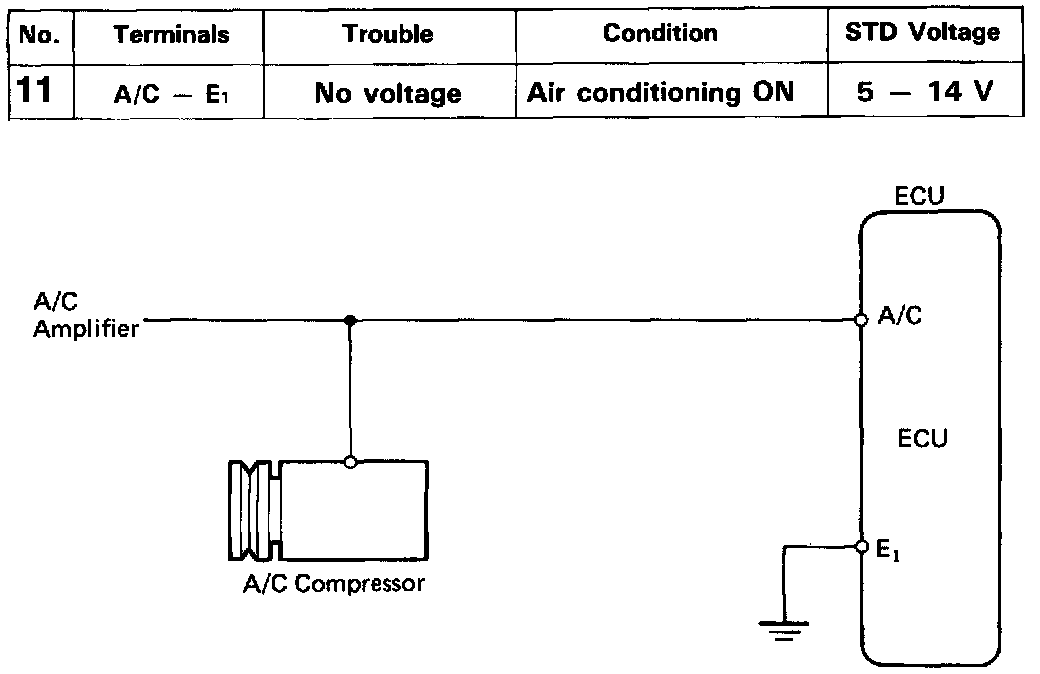

PART 1 OF 2

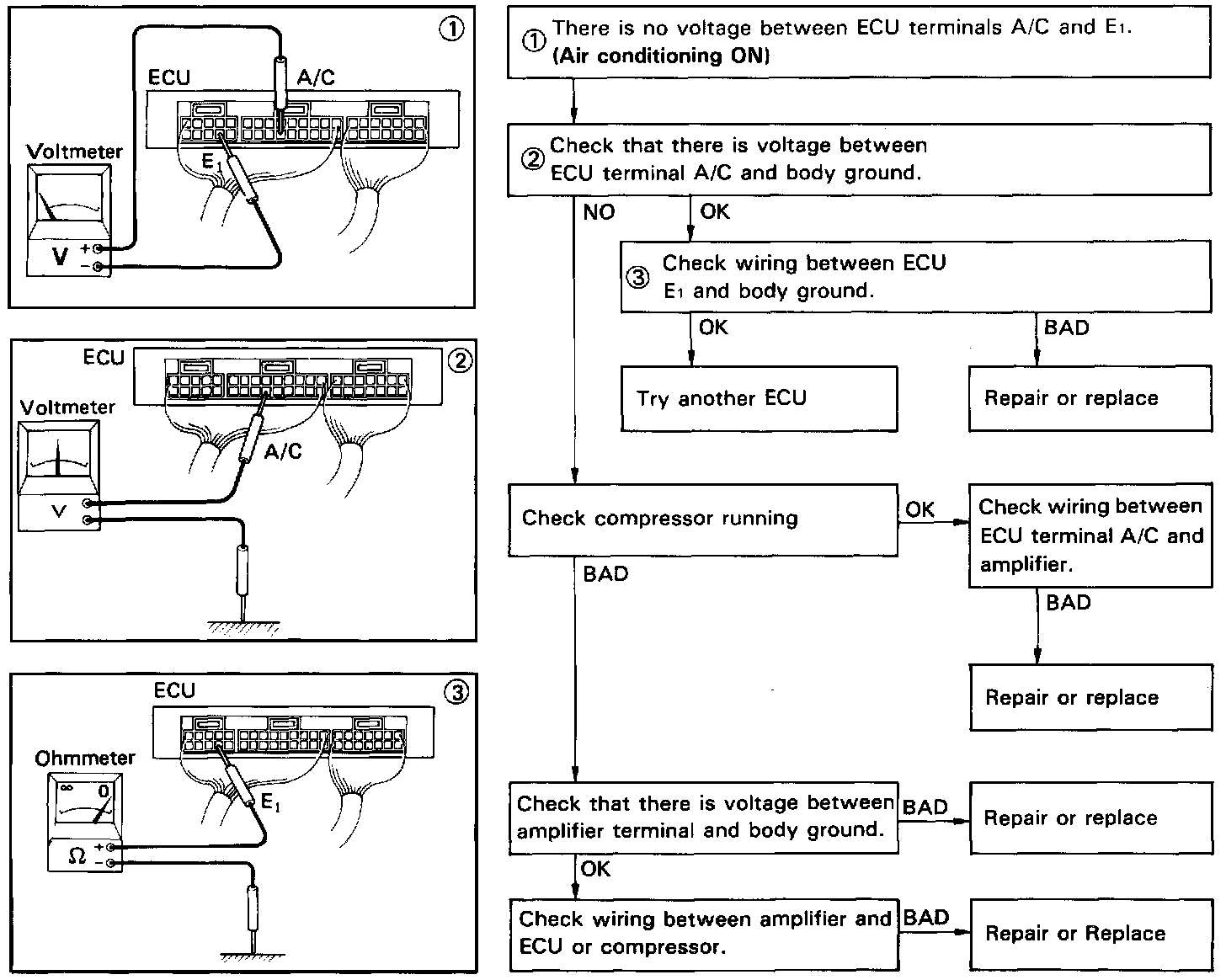

PART 2 OF 2
